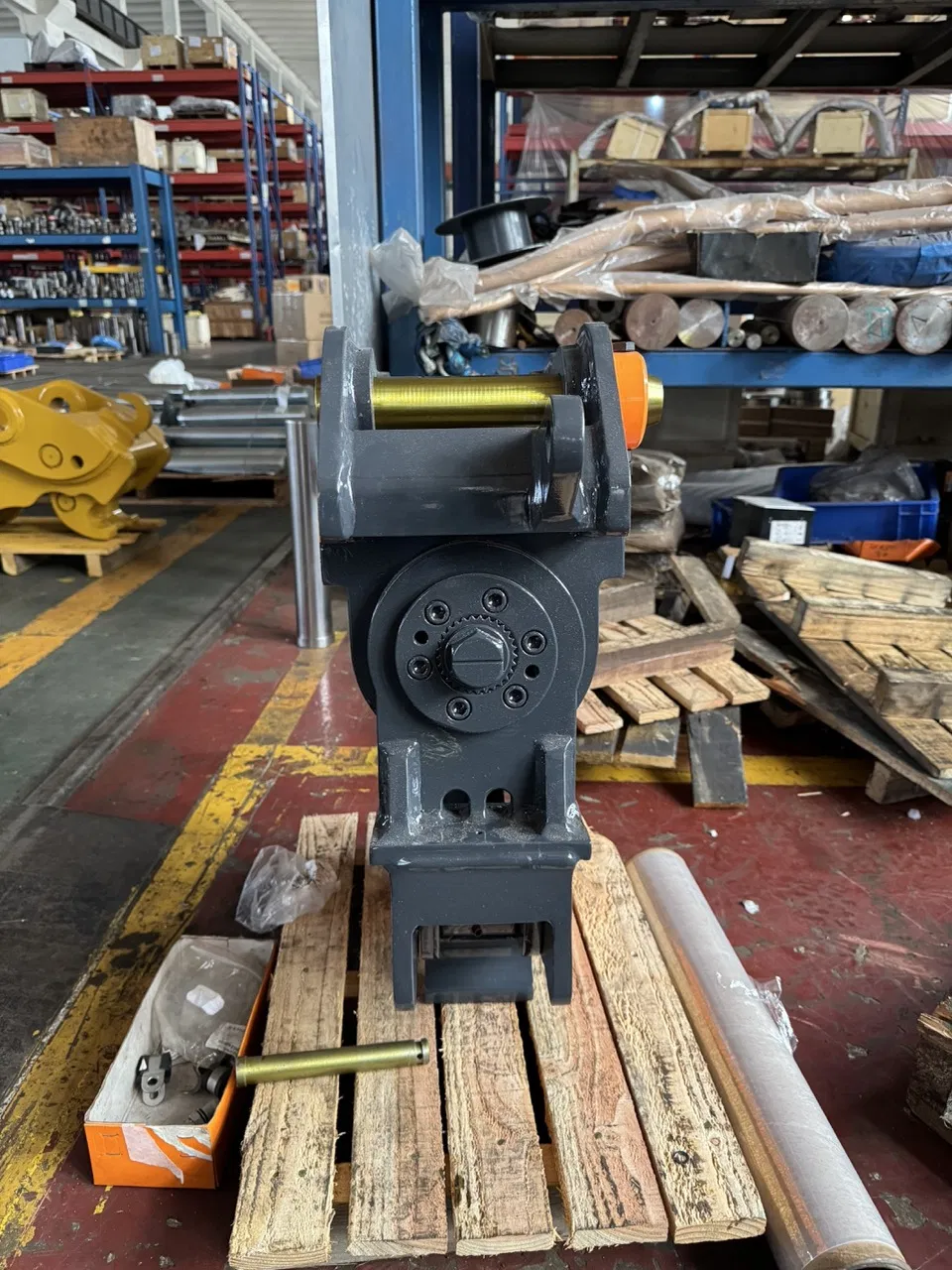

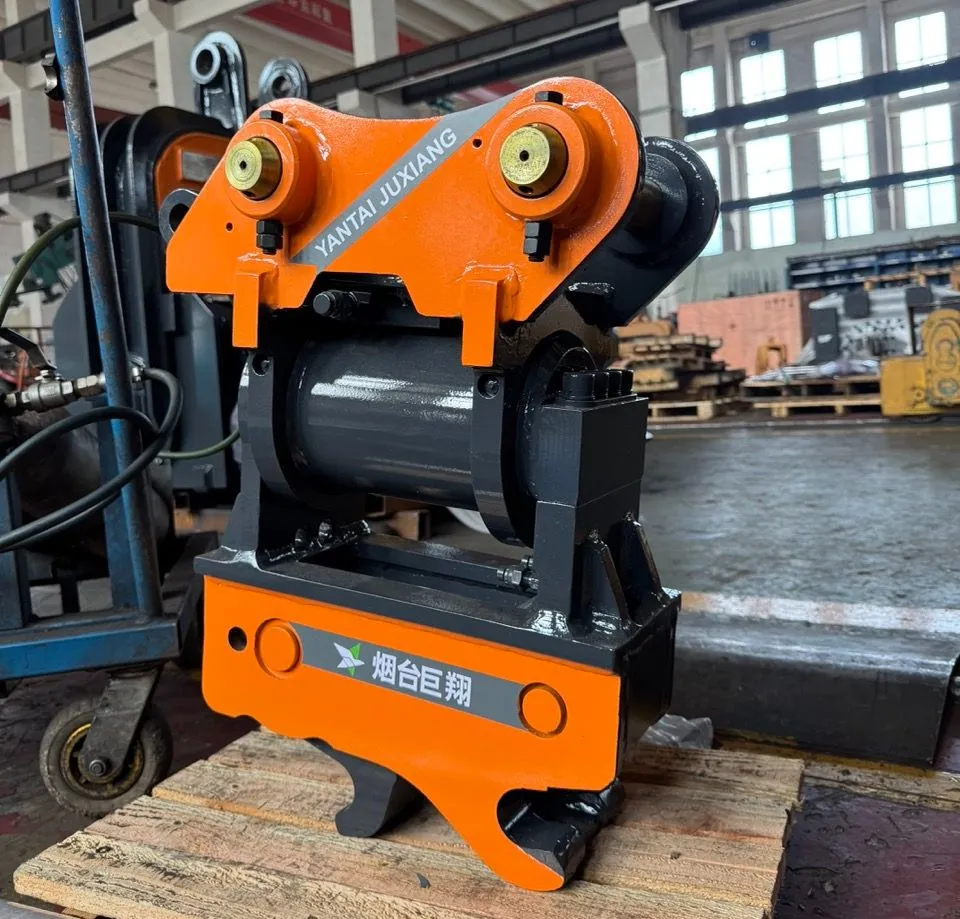

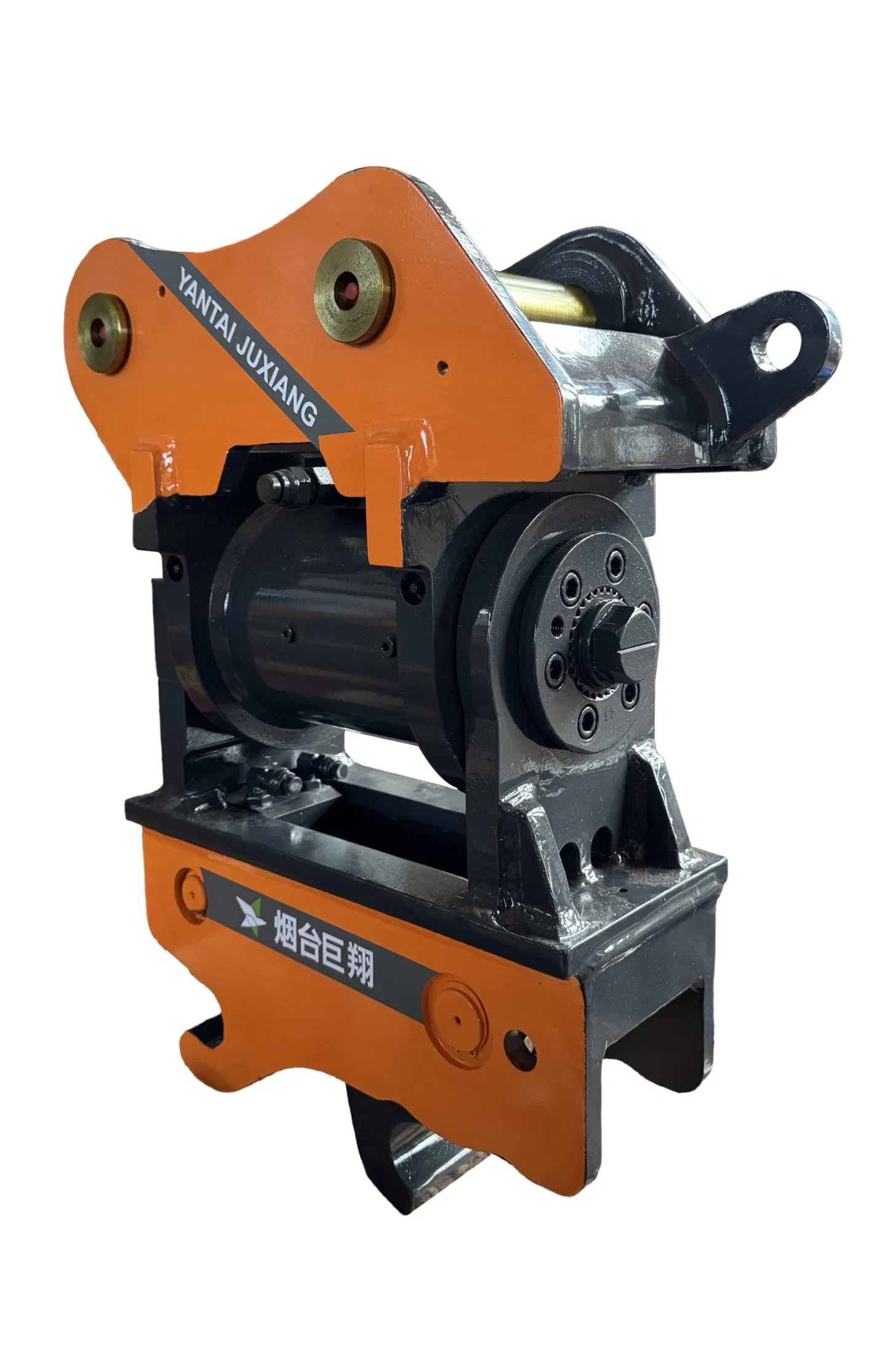

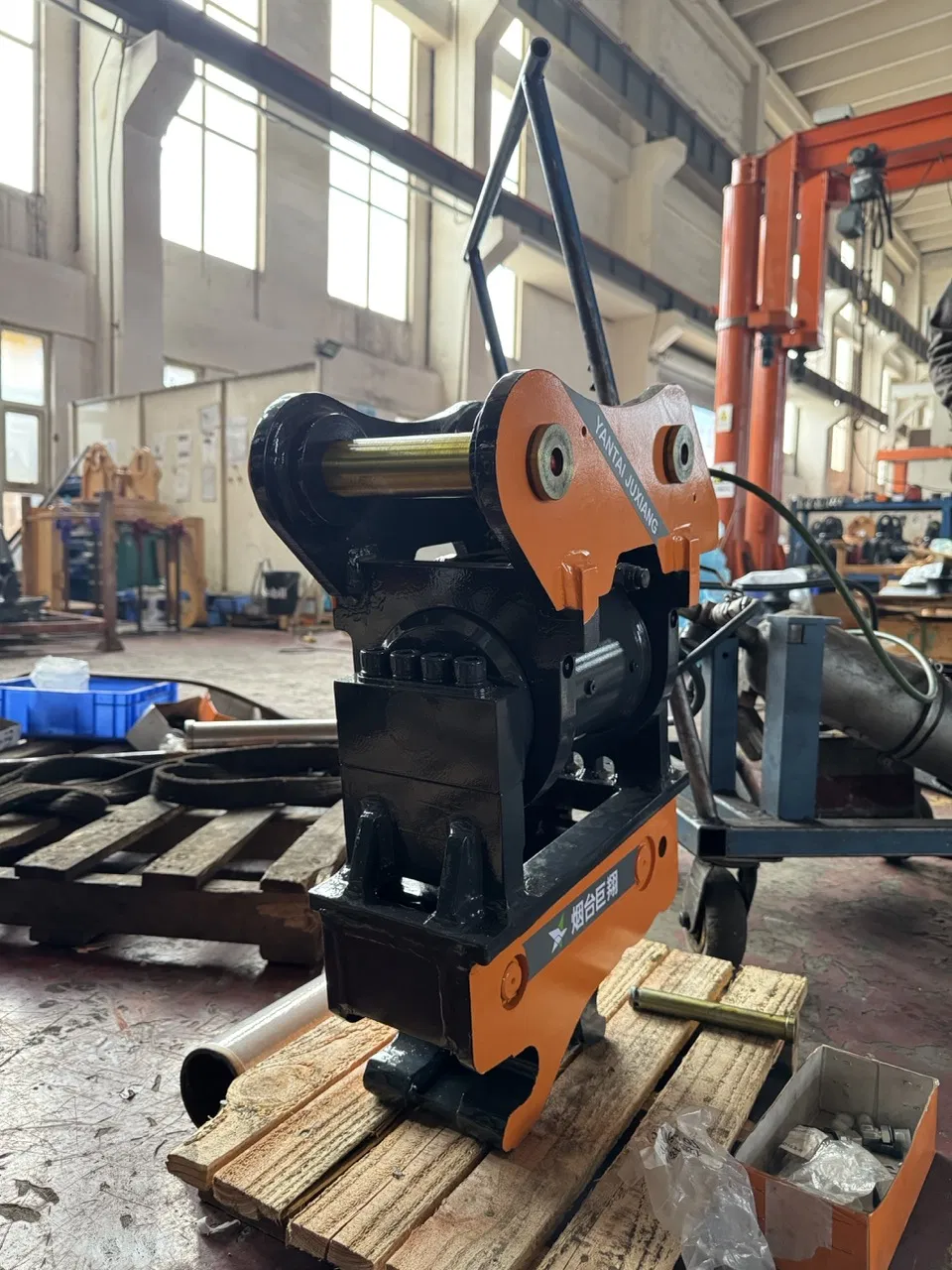

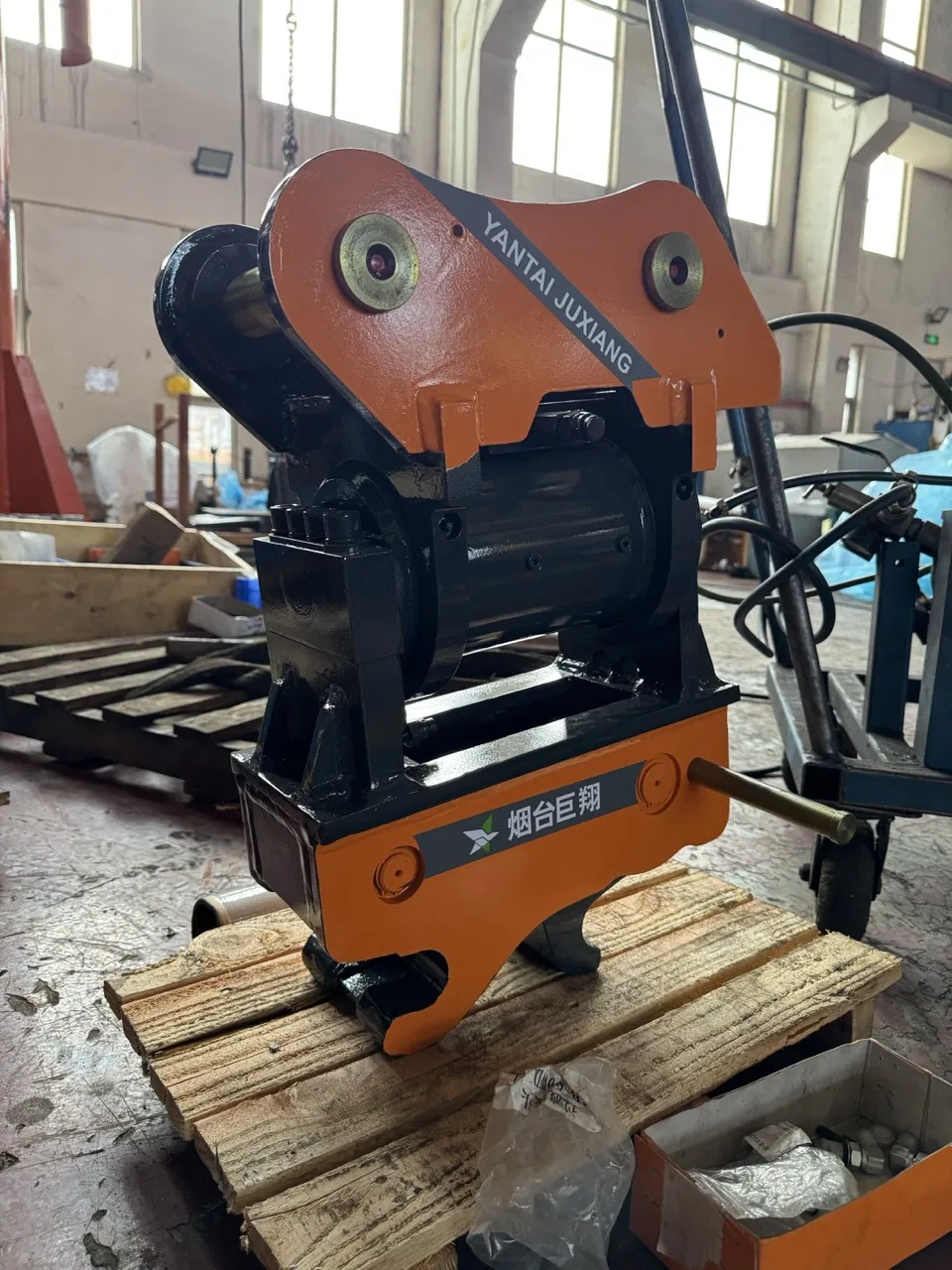

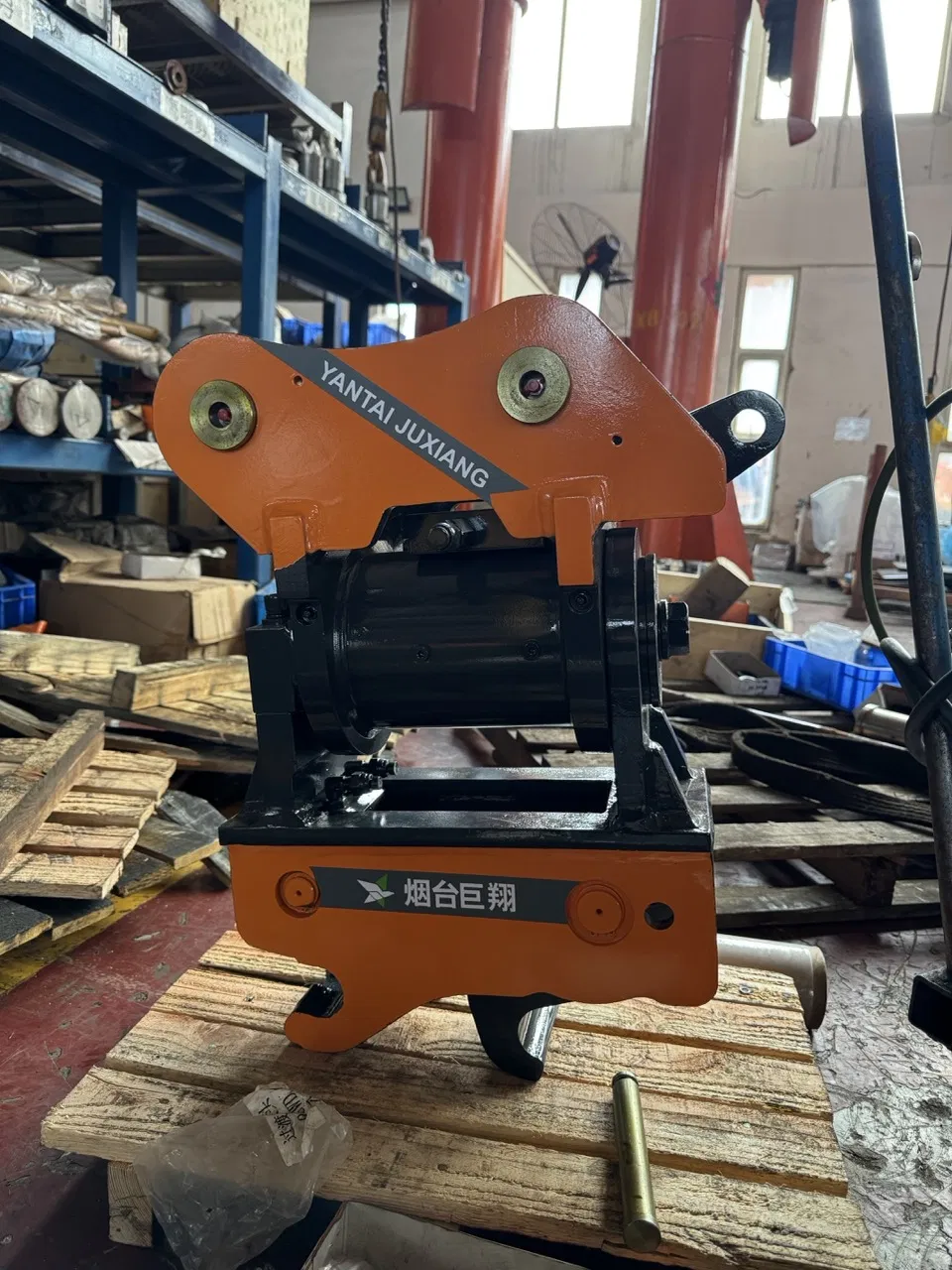

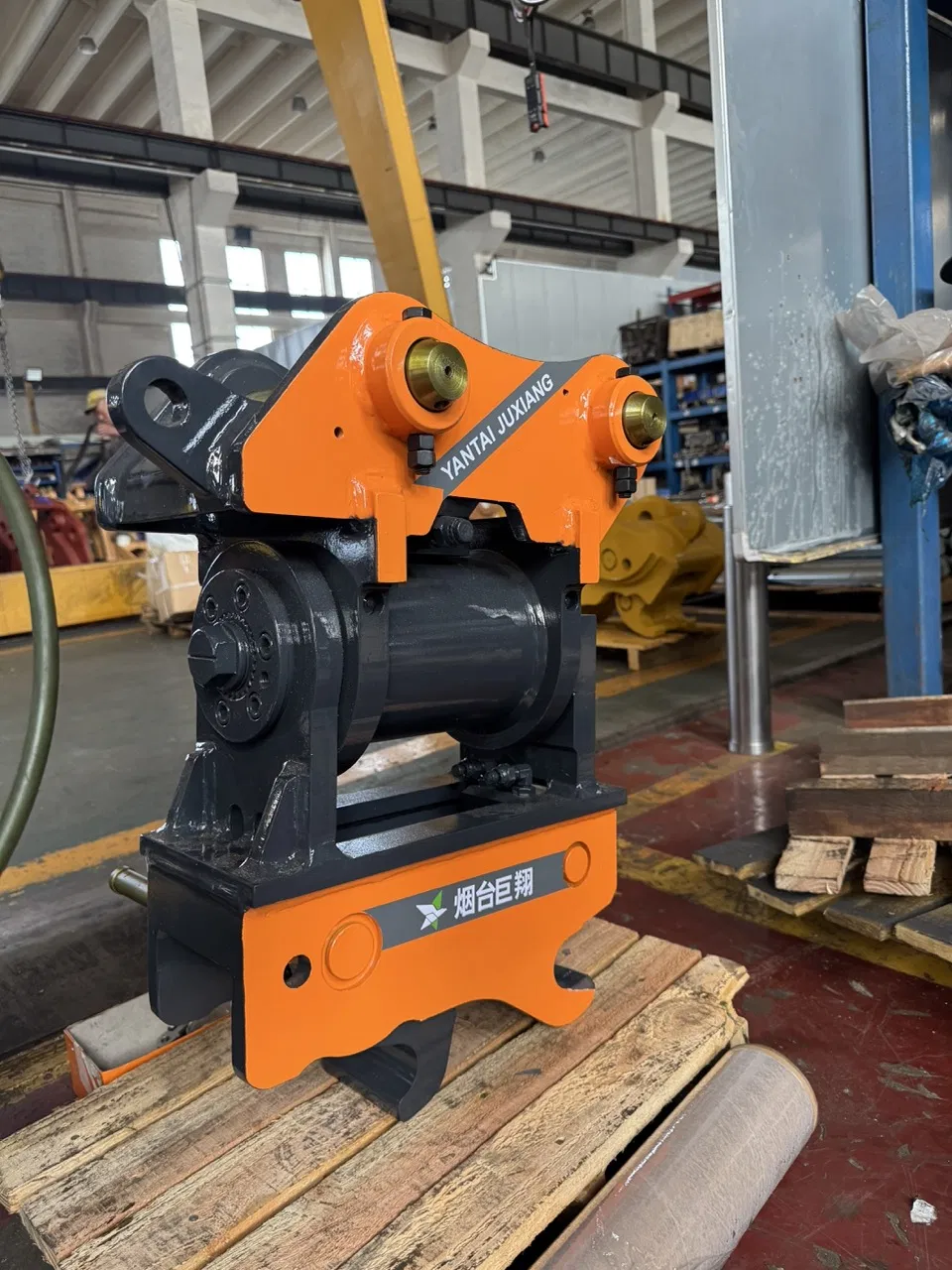

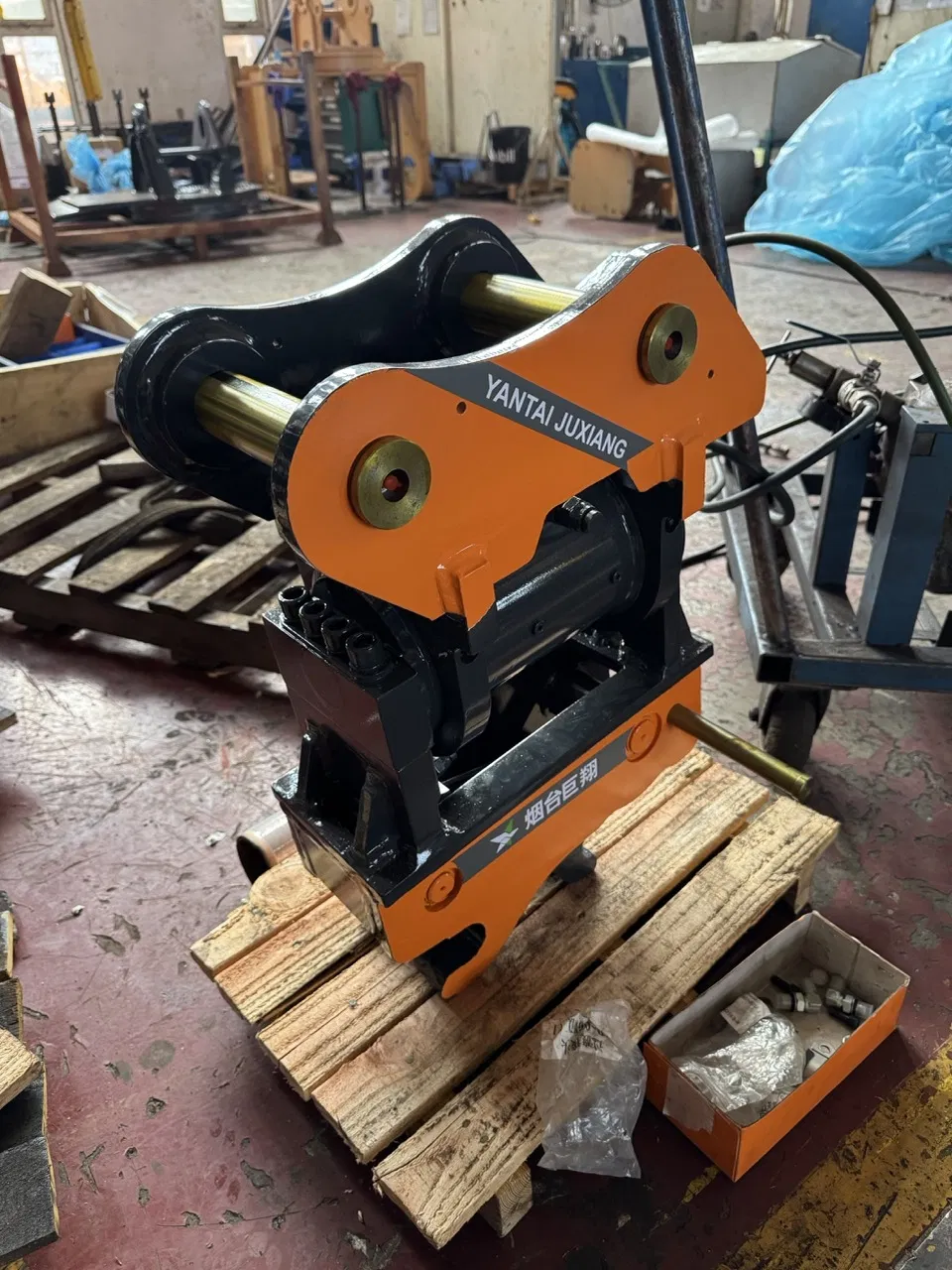

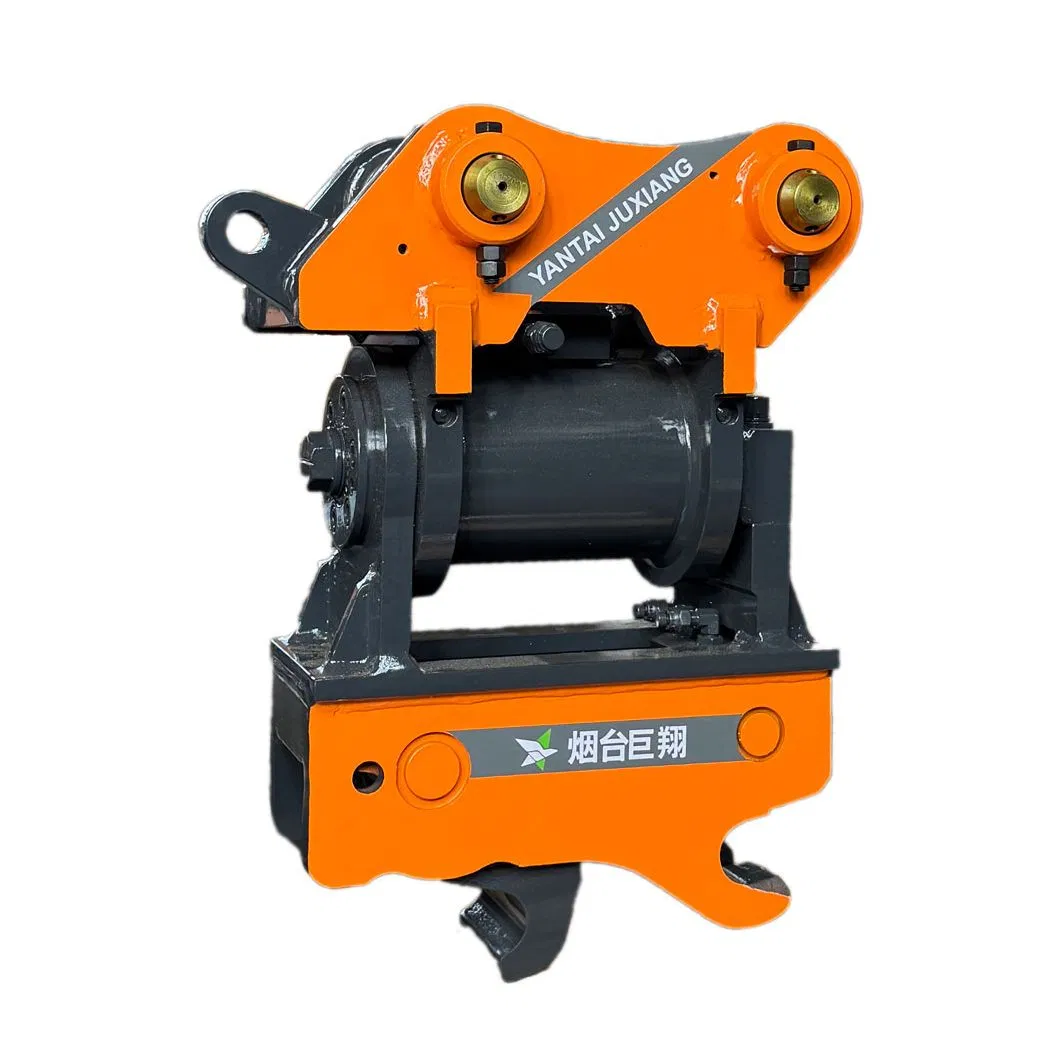

Heavy-Duty Compact Excavator Quick Hitch Coupler with Smart Tilting Feature
⚙ Swing Oil Cylinder: Powers unrivaled tilting operation. Equipped with high-torque and high-load bearings, moving seamlessly within a closed system for extended life. Delivers up to 180° tilt angle.
⚙ Quick-Change Cylinder: Engineered with imported seals for exceptional sealing capabilities and a longer operational lifespan.
⚙ Easy Installation: All supporting pipelines come pre-packaged for immediate setup upon receipt.
⚙ Safety First: Enhanced with a safety pin for "dual protect" functionality, ensuring uninterrupted performance even if the cylinder fails.
Hydraulic Quick Hitch Coupler
| Model | Unit | MINI | JXK-02 | JXK-04 | JXK-06 | JXK-08 | JXK-10 | JXK-17 | JXK-20 |
|---|---|---|---|---|---|---|---|---|---|
| Length | mm | 300-450 | 550-595 | 590-630 | 795-825 | 888-980 | 980-1060 | 1050-1250 | 1050-1250 |
| Height | mm | 250-280 | 312 | 320 | 410 | 520 | 608 | 620 | 620 |
| Width | mm | 170-230 | 270-300 | 300-355 | 365-420 | 460-500 | 510-590 | 580-650 | 580-680 |
| Pins center | mm | 90-210 | 225-285 | 285-360 | 370-420 | 430-500 | 470-550 | 540-600 | 540-600 |
| Arm width | mm | 90-140 | 155-200 | 160-230 | 220-275 | 300-350 | 340-420 | 420-500 | 420-500 |
| Weight | kg | 30-50 | 50-80 | 70-100 | 220-290 | 370-420 | 500-600 | 650-900 | 700-1000 |
| Suitable | ton | 1.5-4 | 4-6 | 6-10 | 10-16 | 16-24 | 24-32 | 34-42 | 45-52 |

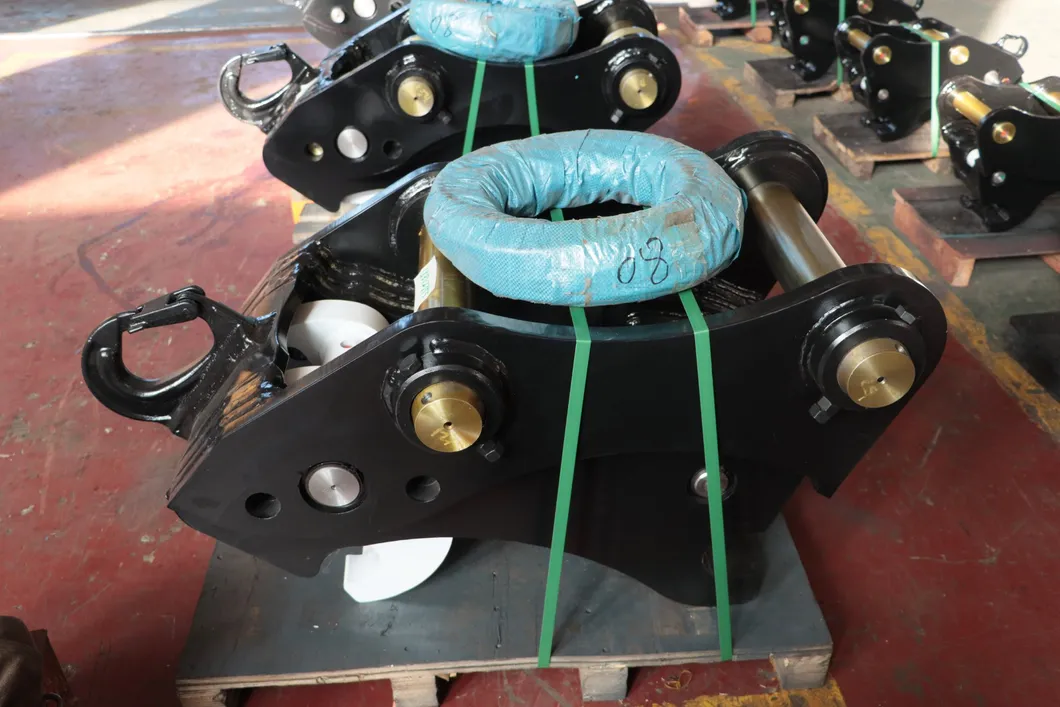

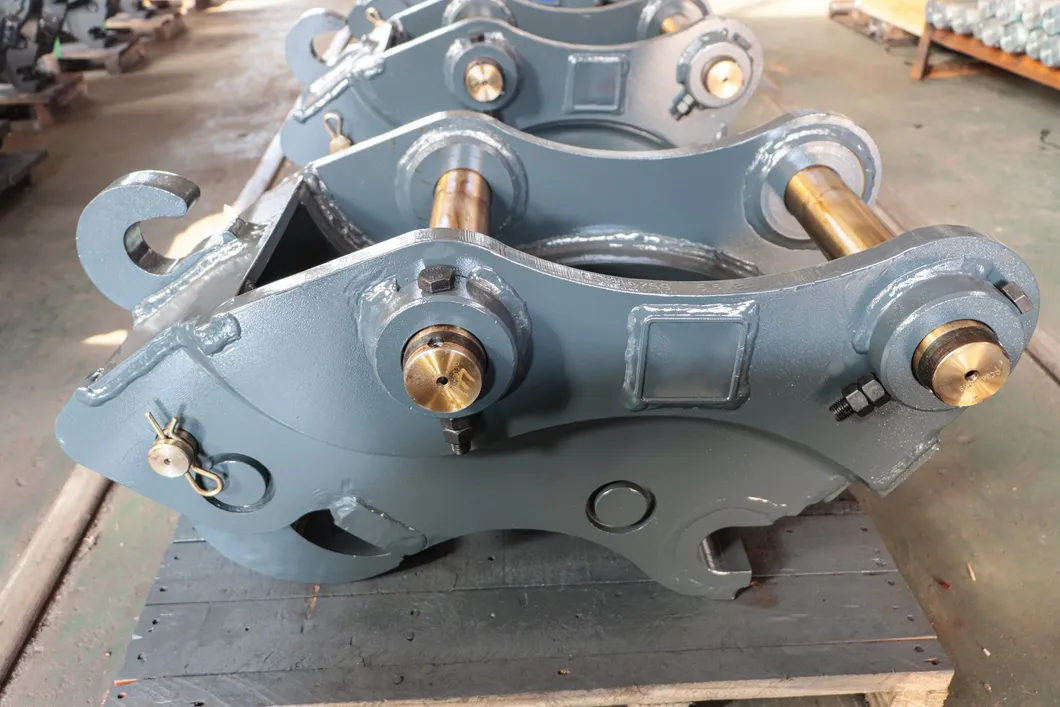

Mechanical Quick Hitch Coupler
| Model | Unit | JXK-00M | JXK-01M | JXK-02M | JXK-04M | JXK-06M |
|---|---|---|---|---|---|---|
| Length | mm | 300-450 | 300-450 | 550-595 | 590-630 | 795-825 |
| Height | mm | 250-280 | 250-280 | 312 | 320 | 410 |
| Pins center | mm | 90-210 | 90-210 | 225-285 | 285-360 | 370-420 |
| Weight | kg | 30-50 | 30-50 | 50-80 | 70-100 | 220-290 |
| Suitable | ton | 1.5-4 | 1.5-4 | 4-6 | 6-10 | 10-16 |
Payment Method: T/T (30% deposit before production, 70% balance prior to delivery).

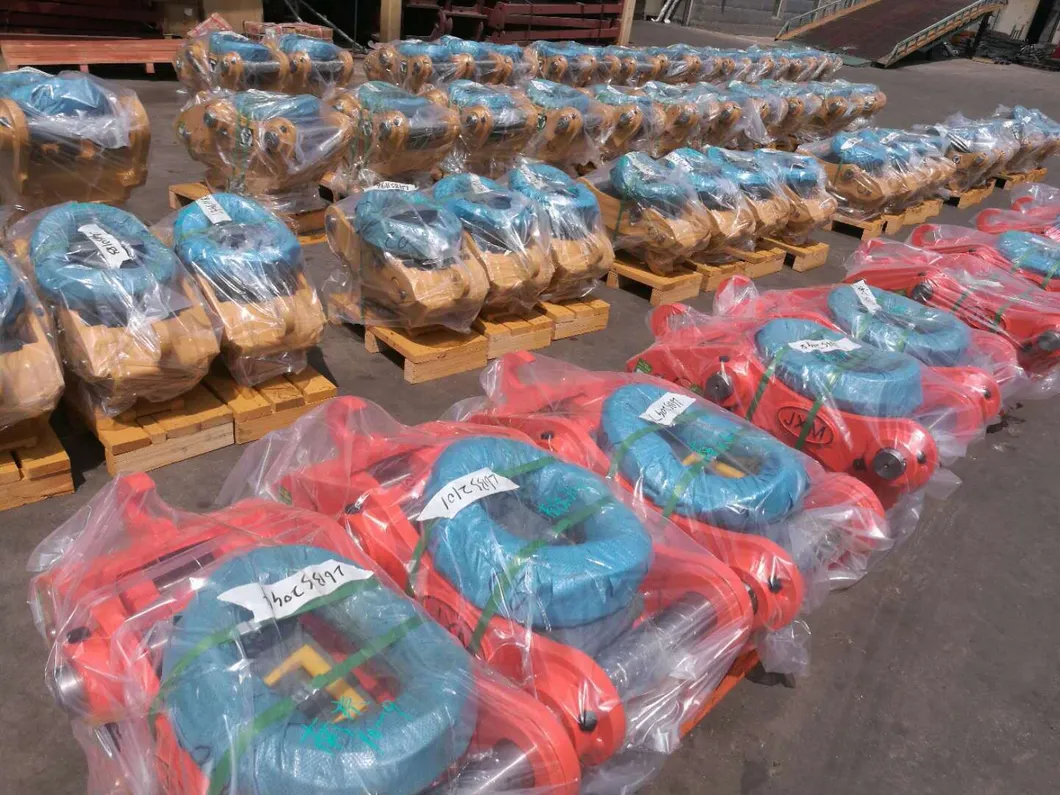

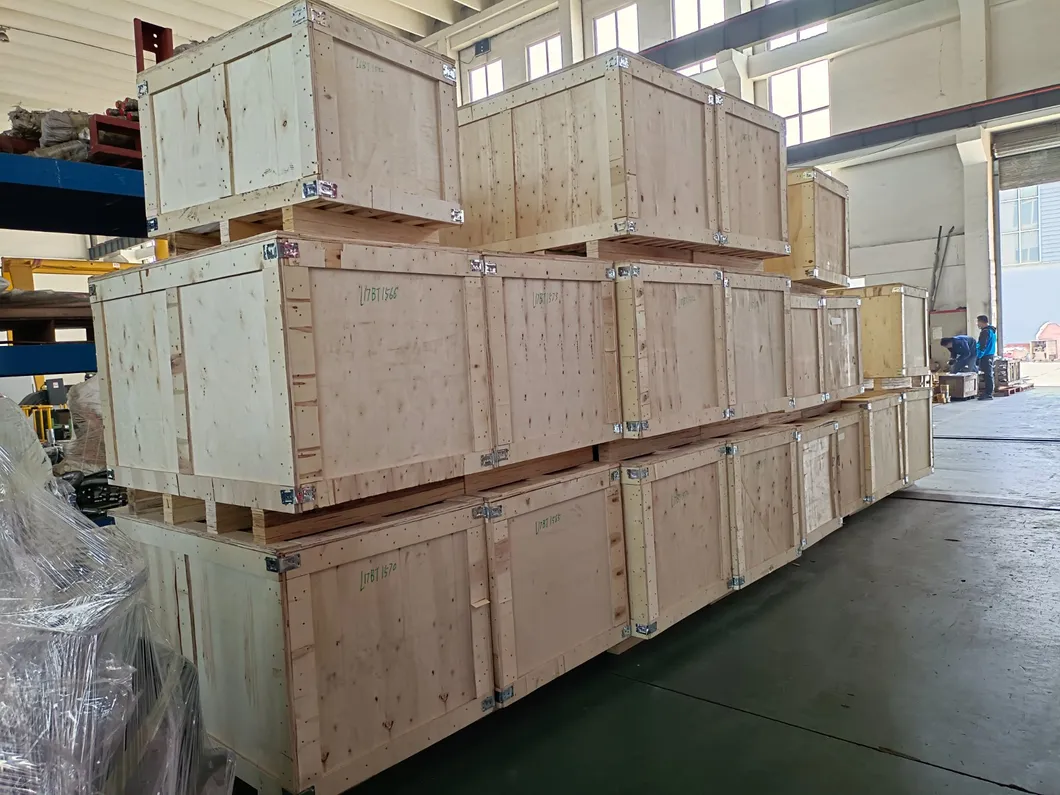

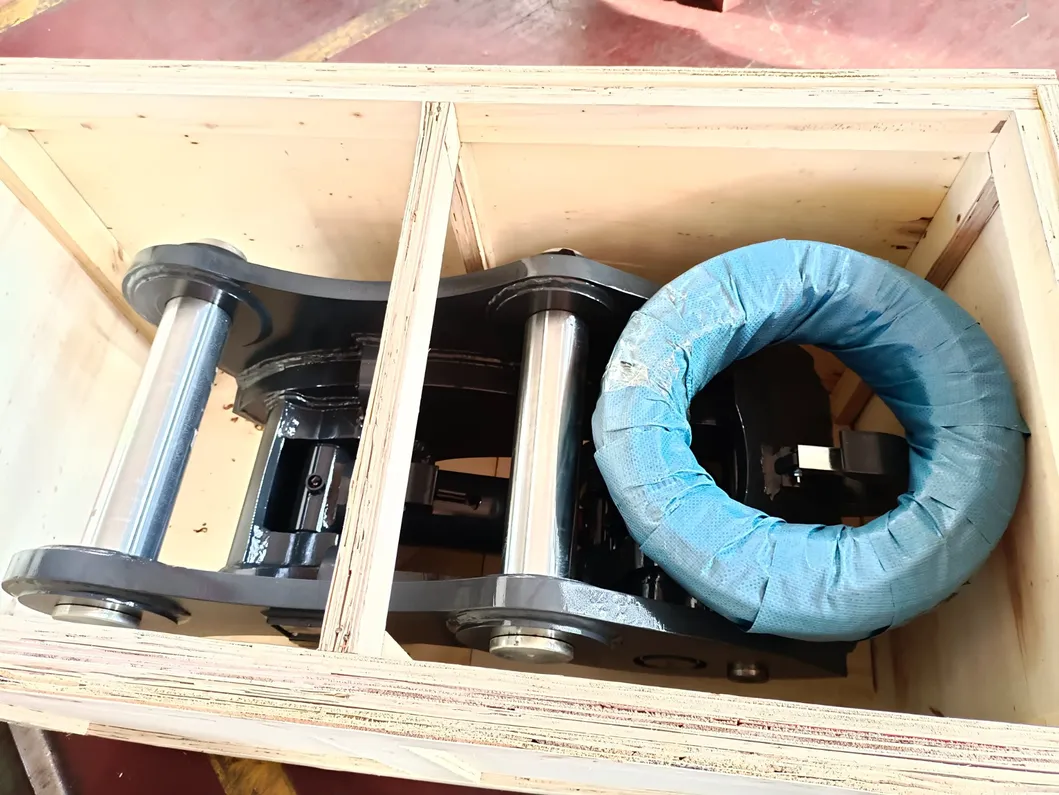

Shipping Details:
- Small orders: Express delivery via TNT, DHL, UPS, or EMS.
- Bulk orders: Efficient shipment handling through major domestic ports.
As a high-tech enterprise, we hold ISO9001 and CE certifications, along with 12 patent certificates. Our product range includes hydraulic pile hammers, excavator booms, quick couplers, hydraulic breakers, and various specialized grapples.
Quality Inspection: Following 5S management principles, each product undergoes 18 rigorous quality inspection stages from initial processing to final delivery.
We provide OEM/ODM services for 13 leading excavator companies globally. With 18 years of continuous innovation, we deliver smart, workable solutions to clients in over 20 countries, including the USA, Russia, Australia, Japan, and Brazil.
