ABP Scaffolding
ABP Scaffolding
Our company can supply various construction products according to the customers' drawings and requirements. Please offer us your enquiry with detailed drawings, specifications, unit weight, quality requirements and pictures. We will supply you not only the products with high quality but also competitive price and good after-sale service.

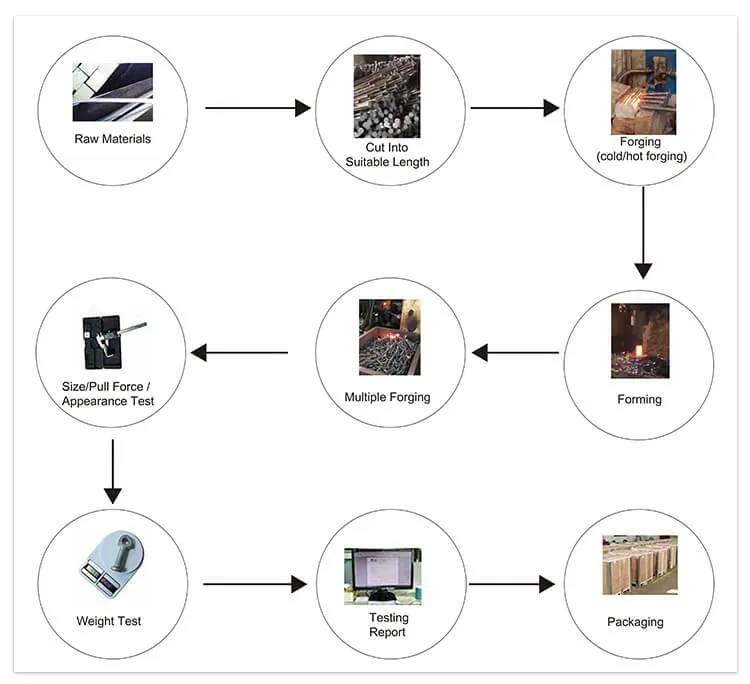

Our factory performs process management based on customer orientation emphasizes process control, quality cost management, and reduces waste. We also use the Advantaged Product Quality Planning (PAPP), Potential Failure Mode and Effects Analysis (FMEA), Statistical Process Control (SPEC) Production Part Approval Process (PPAP), Measurement System Analysis (MAS) Error Proofing method to prevent the defects from being happened.
The Lift Eye Anchor is similar to the Foot anchor. But has an eye at the foot to accept Tension Bars. The Eye Anchor is used primarily in thin sections, Thin panels of lightweight concrete or shapes that must be handled at concrete compressive strengths below 2,000 psi.
Lifting Anchor is the most versatile and widely used anchor in the Lifting Anchor range. Available in a wide range of Working Load Limits (WLL), all Lifting Anchor comply with AS 3850.1:2015.
Spherical head anchors are designed for the transport of precast concrete units only. Multiple-use within the transport chain(from production to installation of the unit) means no repeated usage. This Installation and Application Instruction does not specify a repeated usage (e.g.-ballasts for cranes) or a permanent fixation.

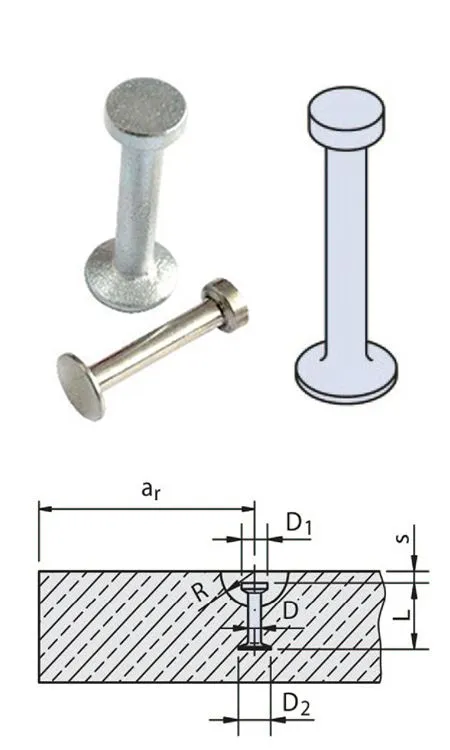

| Code | Load group (T) | L (mm) | D (mm) | D1 (mm) | D2 (mm) | S (mm) | R (mm) | Ar (mm) |
|---|---|---|---|---|---|---|---|---|
| DRX1.3-120 | 1.3 | 120 | 10 | 19 | 25 | 10 | 30 | 390 |
| DRX1.3-240 | 1.3 | 120 | 10 | 19 | 25 | 10 | 30 | 390 |
| DRX2-140 | 2 | 140 | 14 | 26 | 35 | 11 | 37 | 450 |
| DRX2-190 | 2 | 190 | 14 | 26 | 35 | 11 | 37 | 450 |
| DRX4-210 | 4 | 210 | 18 | 36 | 45 | 15 | 47 | 675 |
| DRX7.5-300 | 7.5 | 300 | 24 | 46 | 60 | 15 | 59 | 945 |
| DRX10-340 | 10 | 340 | 28 | 46 | 70 | 15 | 59 | 1100 |
| DRX20-500 | 20 | 500 | 38 | 69 | 98 | 15 | 80 | 1550 |
| Code | Rated Load (Tons) | D (mm) | D1 (mm) | D2 (mm) | Popular Lengths (mm) |
|---|---|---|---|---|---|
| DRX1002013 | 1.3 | 10 | 19 | 25 | 50, 55, 65, 85, 100, 120 |
| DRX1002025 | 2.5 | 14 | 26 | 35 | 65, 85, 110, 120, 140, 170 |
| DRX1002050 | 5.0 | 20 | 36 | 50 | 95, 120, 140, 170, 180, 210 |
| Code | SWL (LBS) | H (Inch) | L (Inch) | D (Inch) | Slab Thickness |
|---|---|---|---|---|---|
| DRX100812318 | 1200 | 3-1/8 | 5.28 | 0.45 | 4 |
| DRX 100812334 | 3000 | 3-3/4 | 6 | 0.45 | 4-1/2 |
| DRX 100812434 | 4000 | 4-3/4 | 7.12 | 0.45 | 5-1/2 |
| DRX 100817634 | 10000 | 6-3/4 | 10 | 0.67 | 8 |
| Code | Rated Load (Tons) | D (mm) | D1 (mm) | L (mm) | S (mm) |
|---|---|---|---|---|---|
| DRX1004013 | 1.3 | 10 | 19 | 65 | 8 |
| DRX1004050 | 5.0 | 20 | 36 | 120 | 14 |
| DRX1004200 | 20.0 | 38 | 69 | 250 | 28 |

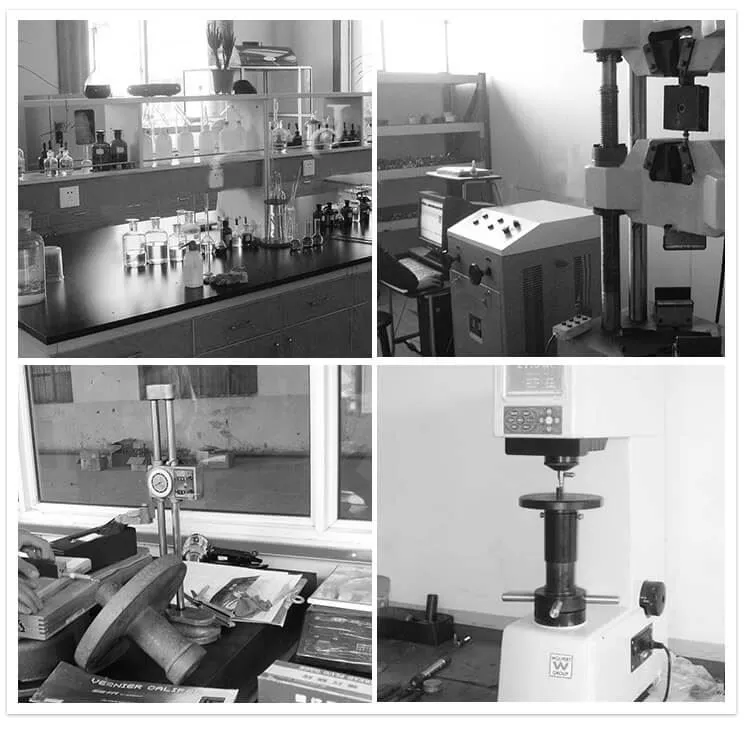

What sets us apart from our competitors is our ideal magnetic solution, excellent quality, and great service. With a testing laboratory equipped with state-of-the-art measuring and testing devices, our QC dept. ensures ongoing development and maintenance of high-quality standards.
Plywood Carton + woven bag + Iron belt
