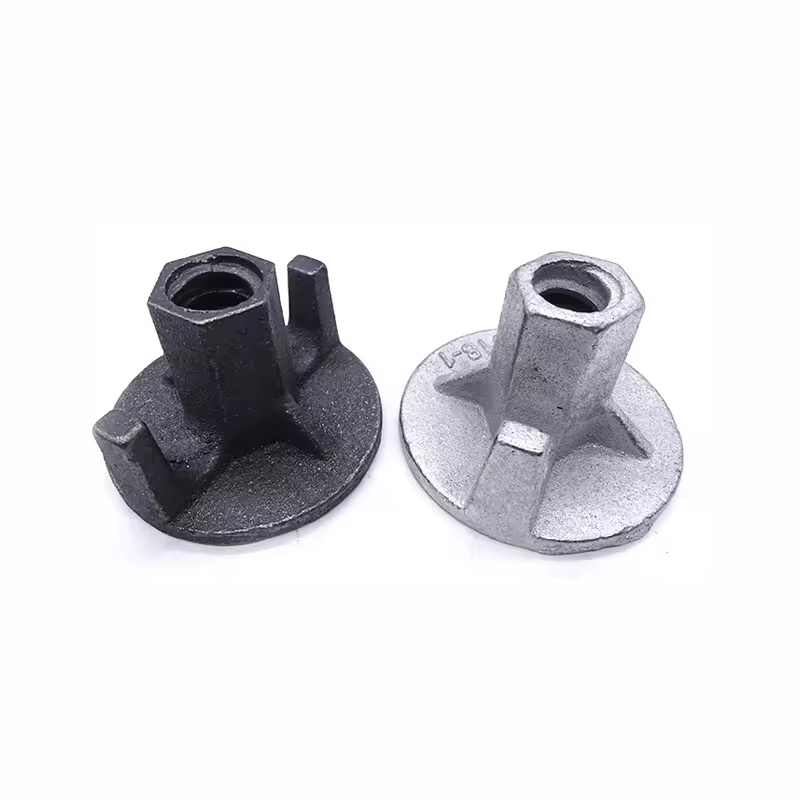

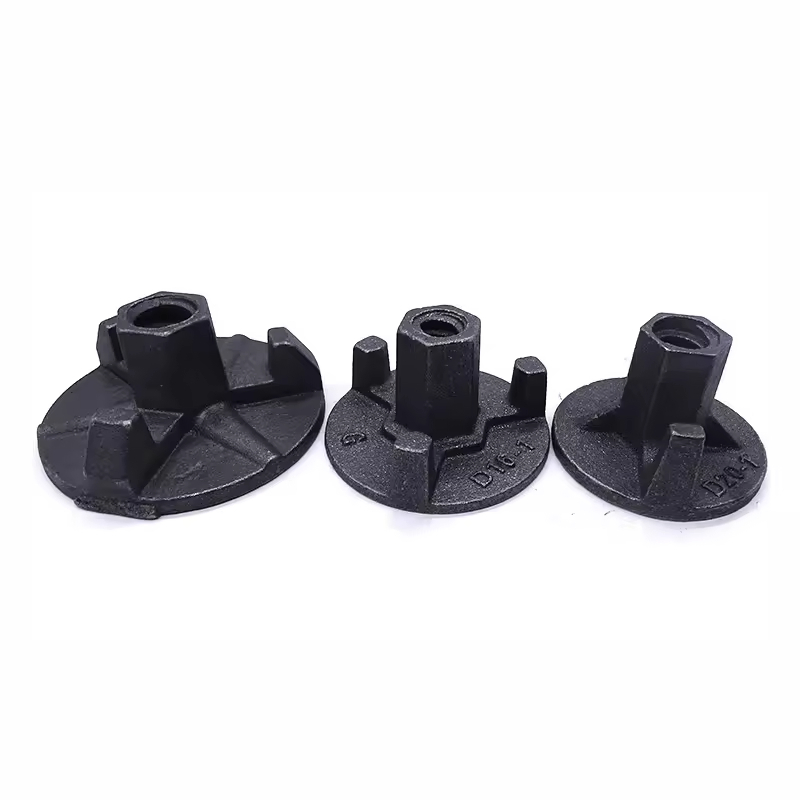

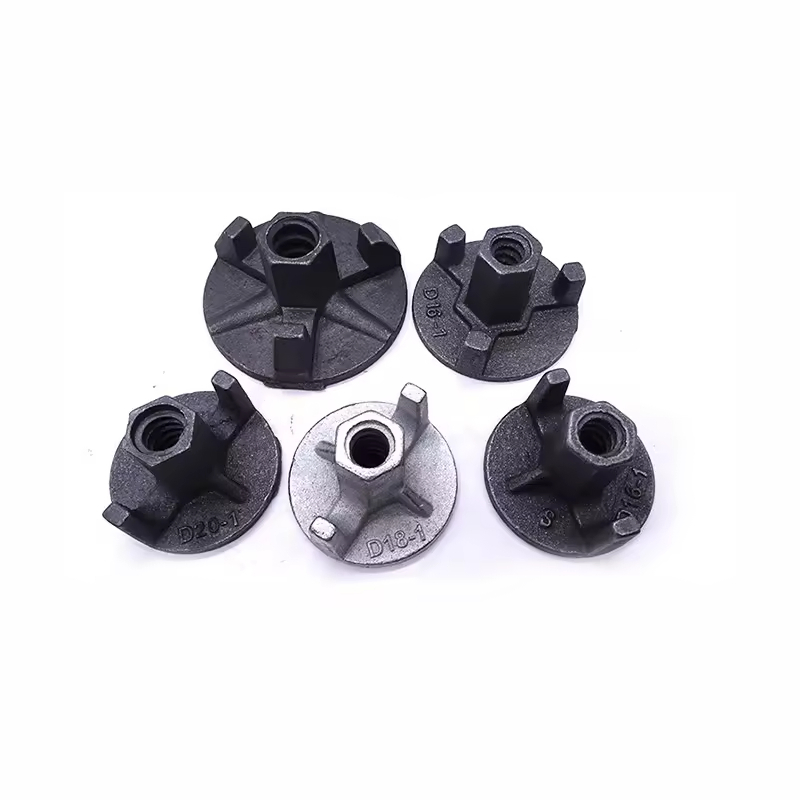

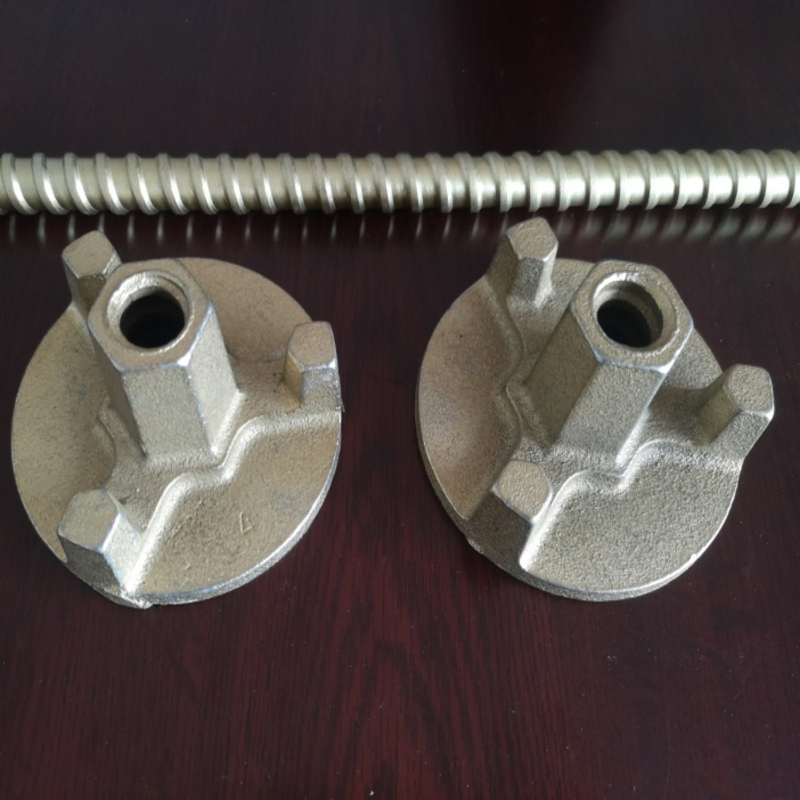

Wing Nut Formwork is a type of fastening tool commonly used in construction and bridge projects, particularly in concrete formwork systems. It is typically used in conjunction with rods, nuts, and other fasteners to securely and quickly fix formwork during construction. Its simple design and ease of use make it an efficient solution for formwork installation and removal.
| Product Name | Formwork Wing Nut |
|---|---|
| Surface Treatment | HDG (Hot Dip Galvanized) or Zinc Plate |

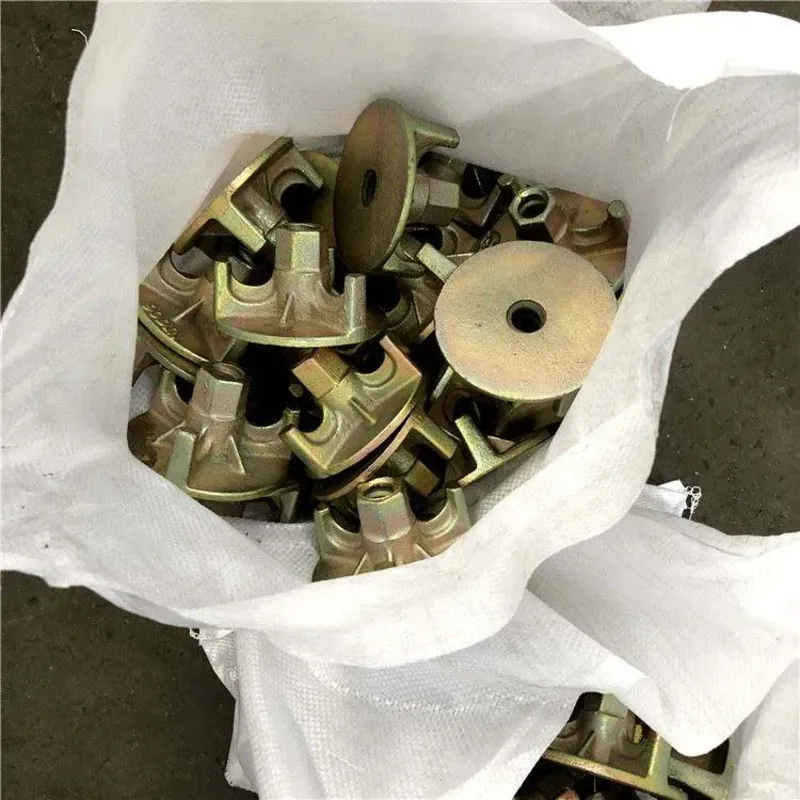

| Package | Steel pallet, carton, plywood case, or as requested |
| Material Features | High tensile strength, precise thread |

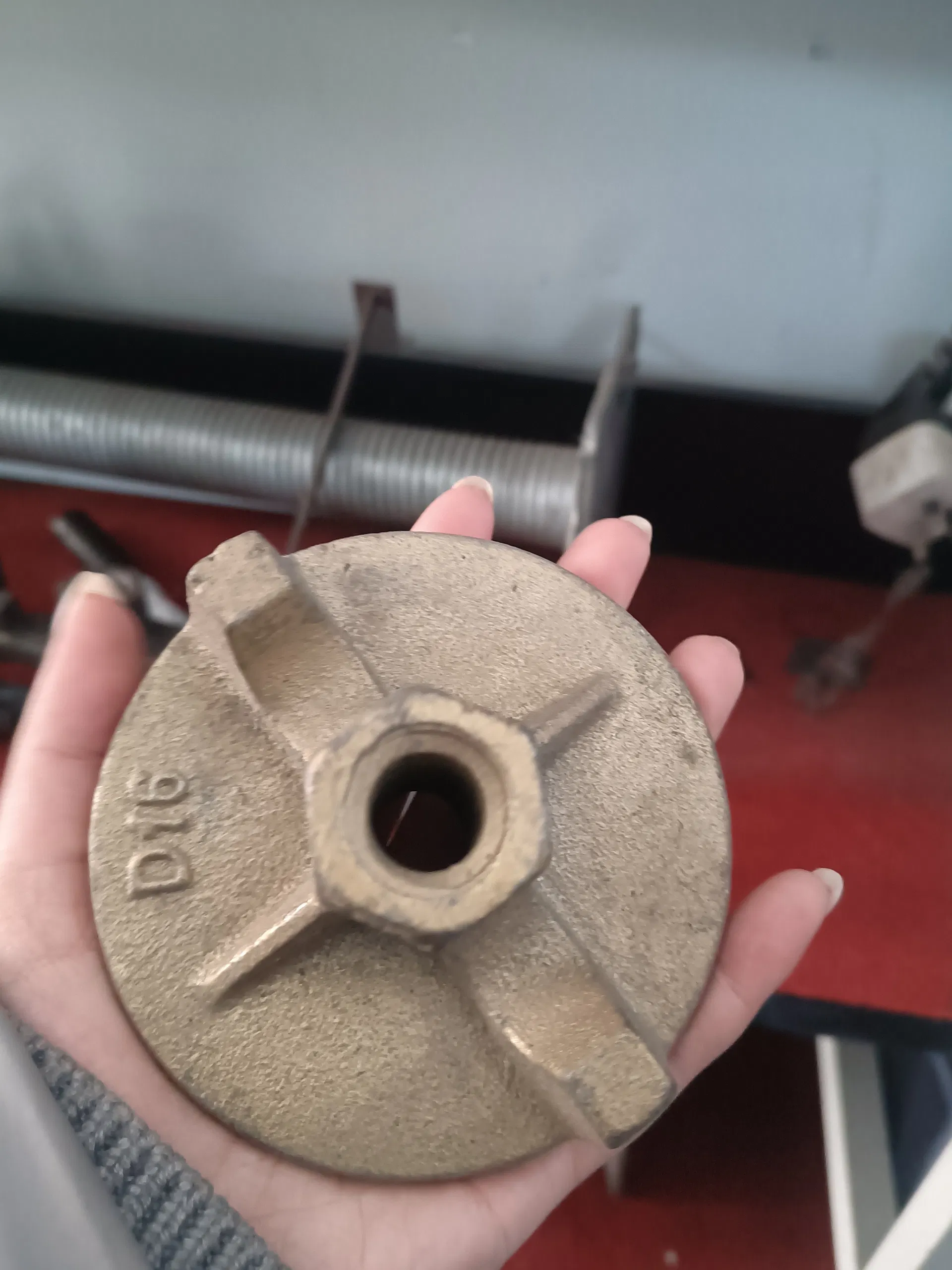

| Round Plate Formwork Wing Nut (2 Legs) | ||||
|---|---|---|---|---|
| Size (mm) | Thickness (mm) | Diameter (mm) | Weight (g) | Legs |
| D12 | 5.5 | 100 | 400 | 2 legs |
| D16 | 6 | 80 | 370 | 2 legs |
| D17 | 10 | 80 | 365 | 2 legs |
| D20 | 6 | 80 | 400 | 2 legs |
| D22 | 10 | 110 | 780 | 2 legs |

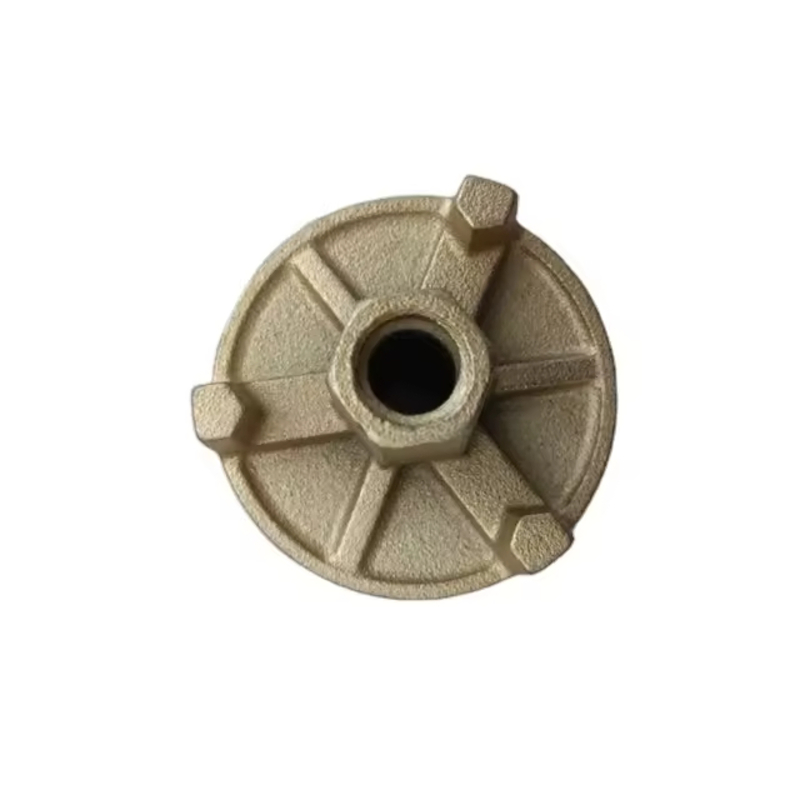

| Round Plate Formwork Wing Nut (3 Legs) | ||||
|---|---|---|---|---|
| Size (mm) | Thickness (mm) | Diameter (mm) | Weight (g) | Legs |
| D16 | 6 | 100 | 530 | 3 legs |
| D17 | 10 | 90 | 450 | 3 legs |
| D18 | 6.35 | 90 | 450 | 3 legs |
| D22 | 10 | 110 | 950 | 3 legs |

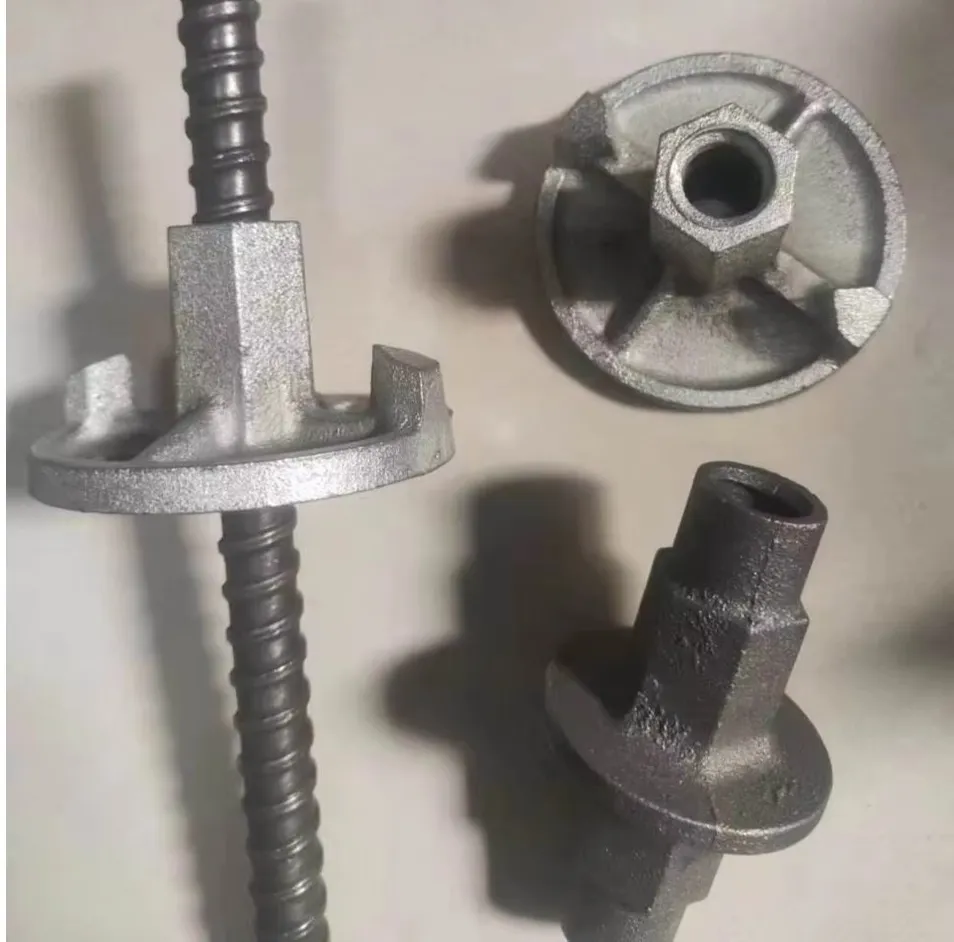

Features two or three wings for easy tightening and loosening by hand or tools, enhancing efficiency.
Made from carbon or alloy steel for maximum tensile strength and durability in harsh environments.
Designed for fast deployment and removal, significantly reducing labor time on construction sites.
Surface treatments like HDG or Zinc plating ensure long-term performance against moisture and rust.
Our products are widely used in bridge engineering, tunnel construction, foundation pit engineering, and high-rise buildings. We utilize advanced production technology and strict quality control systems.
