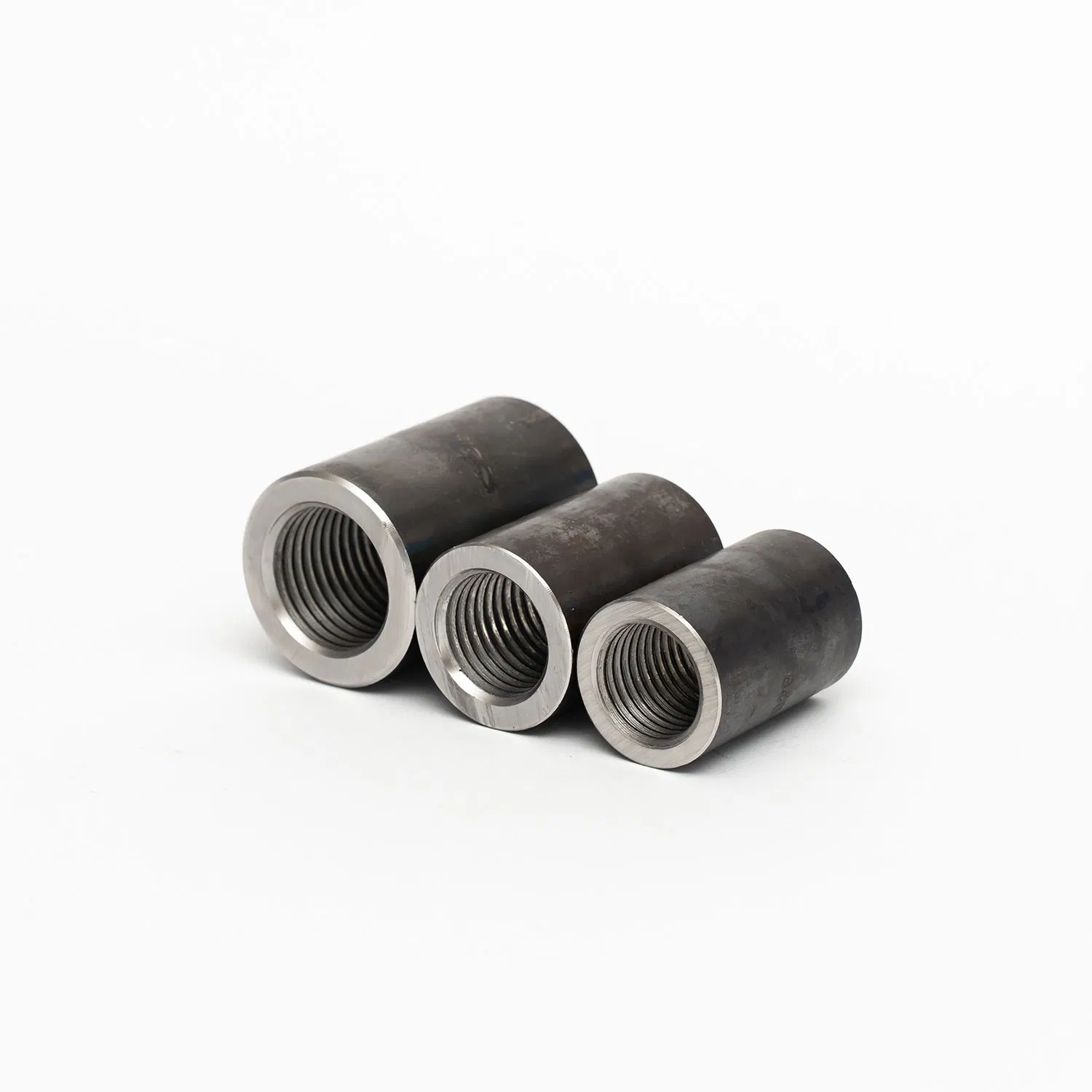

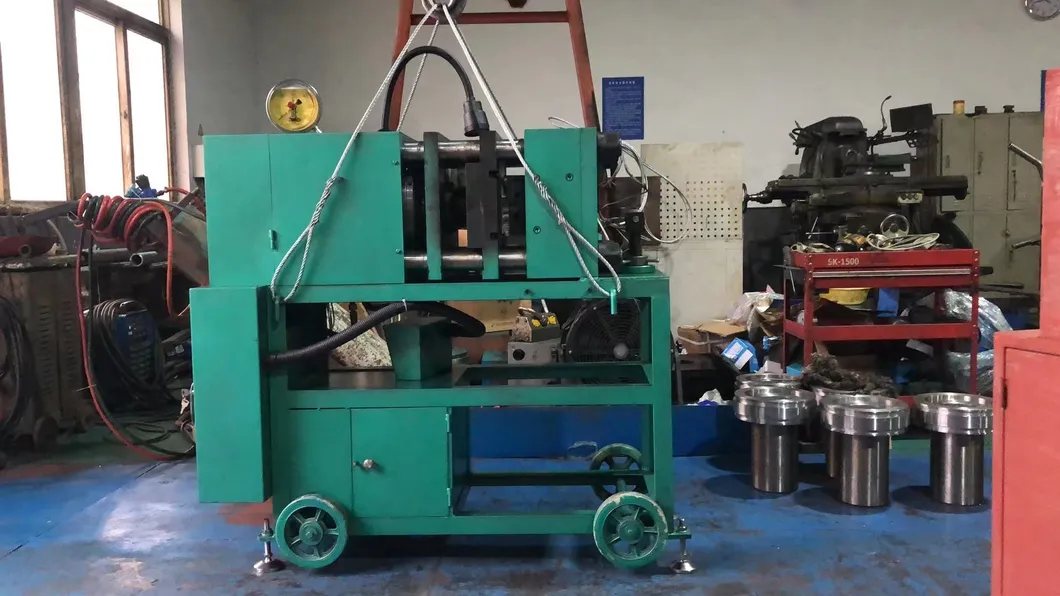

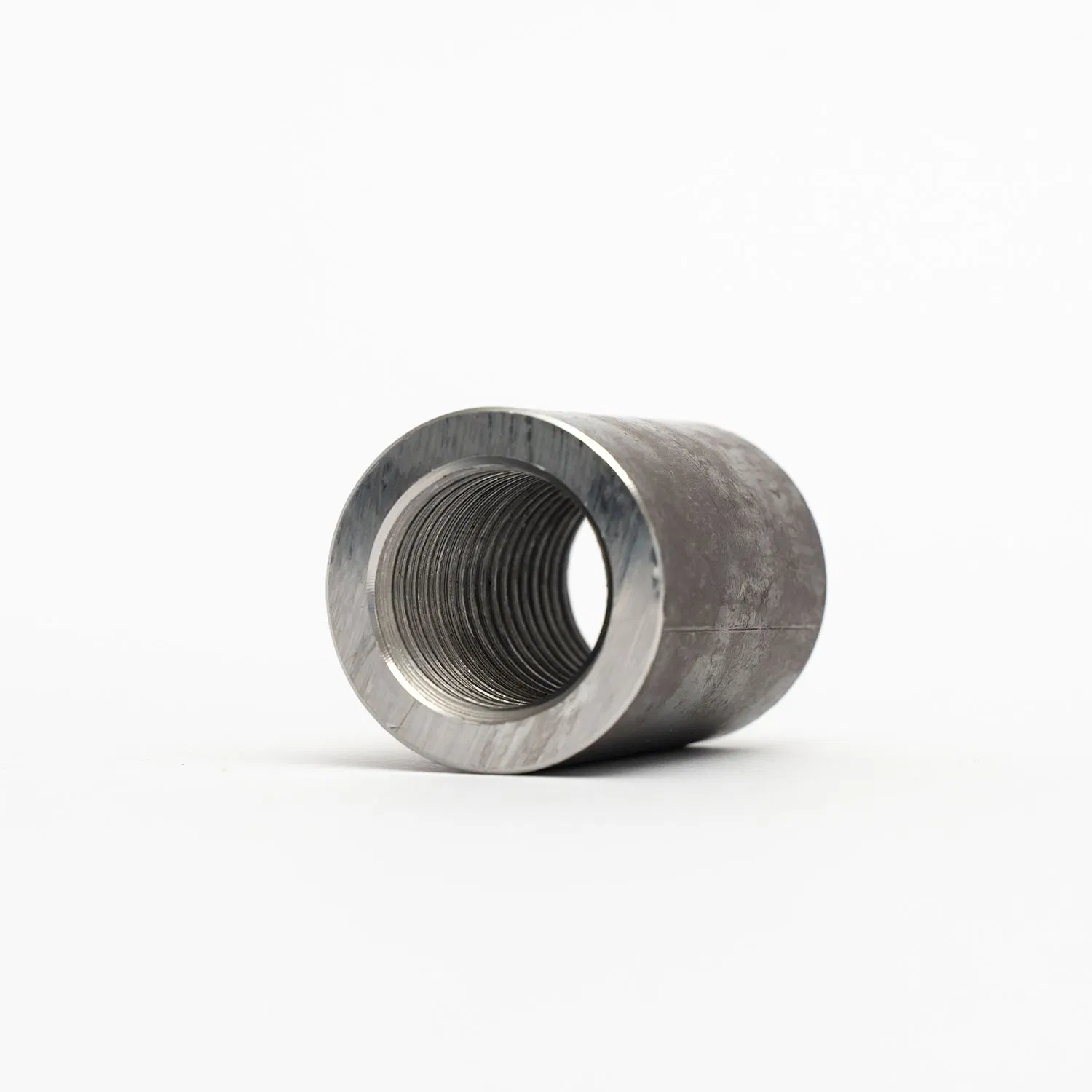

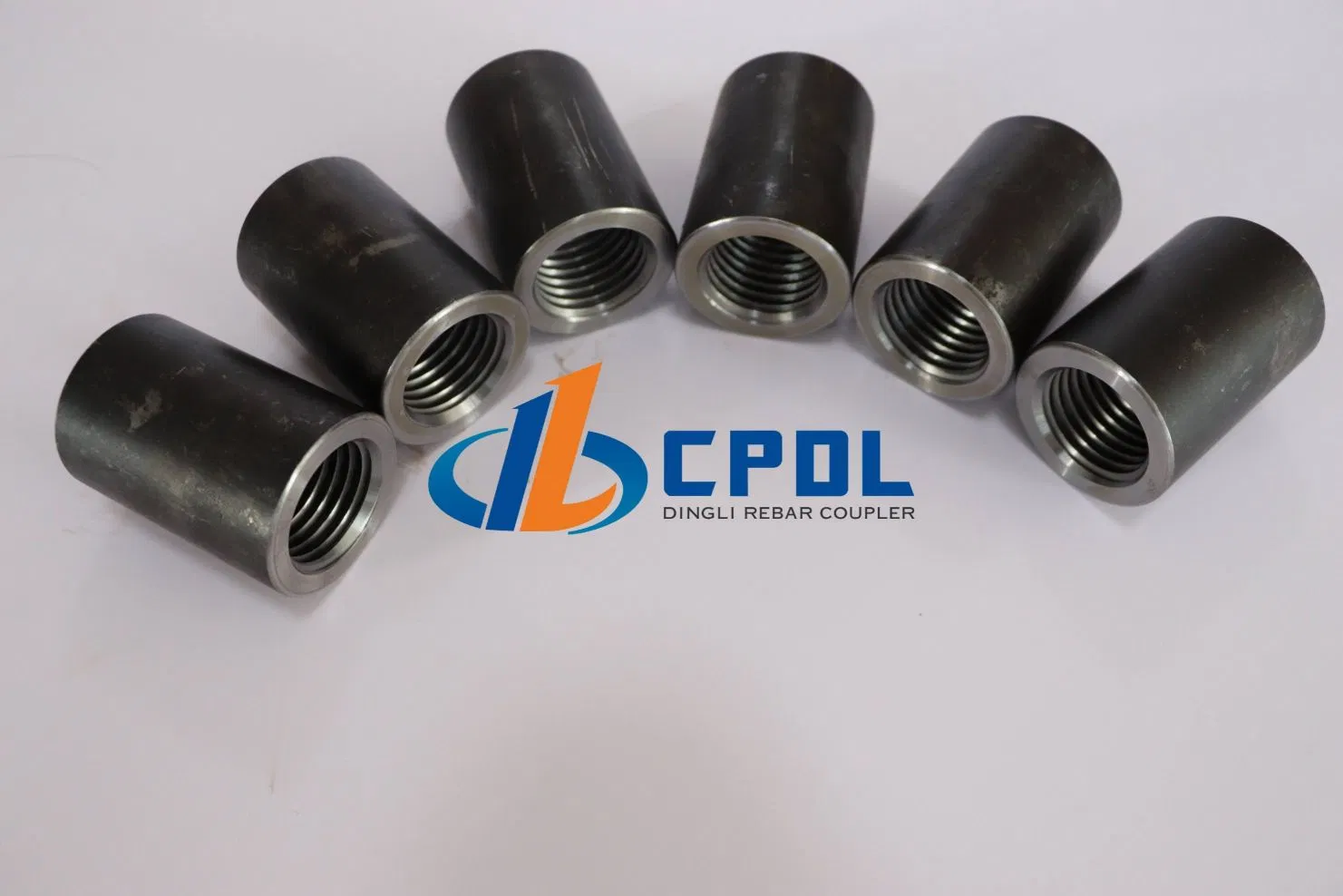

Upsetting type rebar coupler is a robust parallel thread mechanical splicing system that enlarges rebar nominal diameters by cold forging prior to thread cutting. After cutting, the thread's minor diameter remains larger than the rebar's nominal diameter, ensuring exceptionally strong connections. This specialized design yields smooth threads for rapid, easy installations and high-efficiency structural connections.
| Specification | Details & Standards |
|---|---|
| Name | Parallel Upsetting Rebar Couplers (U Type) |
| Used for Rebar | HRB500 / Grade 75 / Kuwait 550 / 500B with yield strength > 500MPa |
| Raw Material | 40Cr (Yield strength: 750Mpa, Tensile strength: 860MPa) |

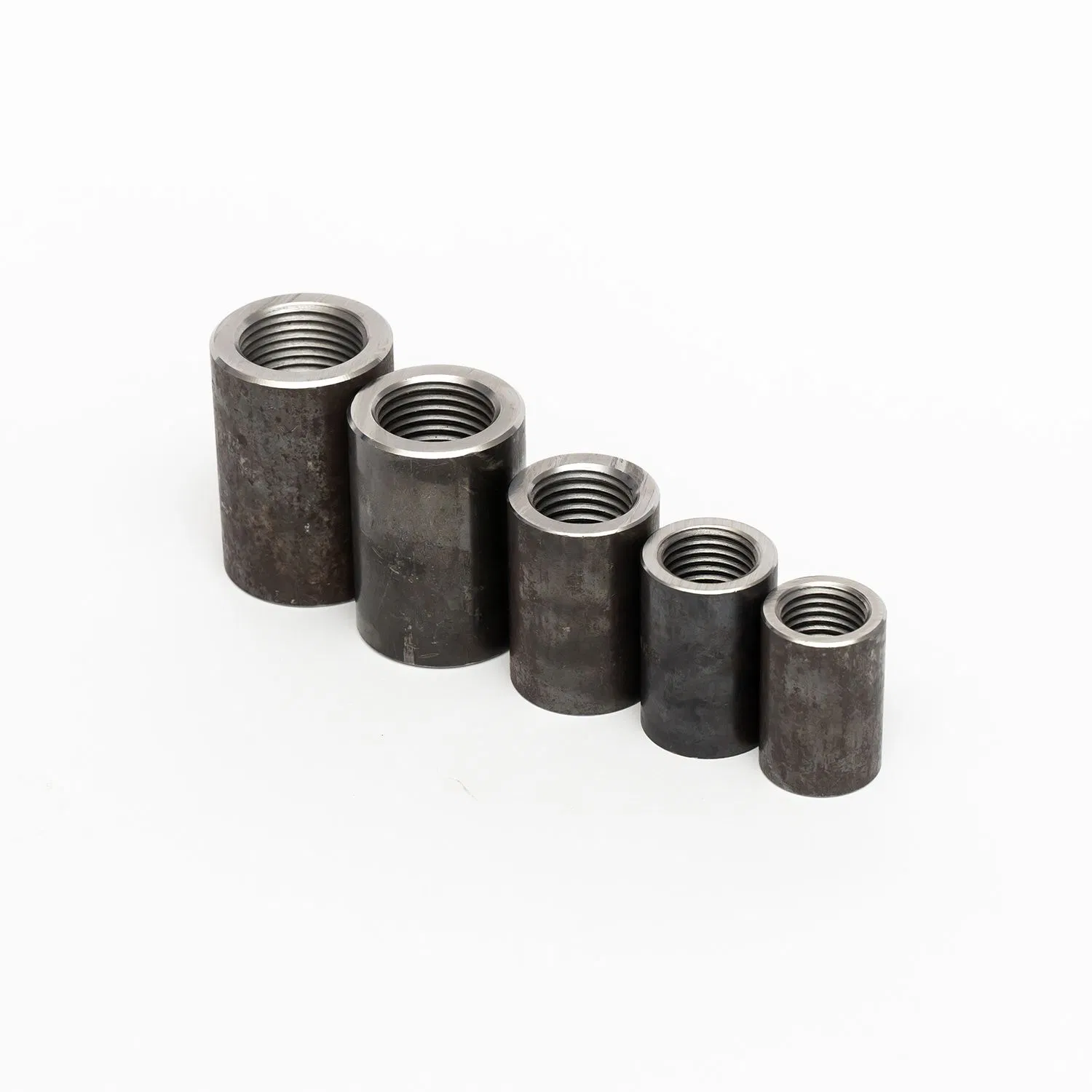

| Size Range | 16mm / 18mm / 20mm / 25mm / 28mm / 32mm / 36mm / 40mm |
| Packing | Bags and pallets, or wooden cases (25KG smaller pack, 1700KG per pallet) |
| Sample Policy | Free existing samples available for size and quality validation |
| Production Lead Time | 15 - 40 days based on order quantity post-payment |
| Shipping Ports | Xingang (Tianjin), Shanghai, China |
| Payment Terms | T/T or L/C |
| Certificates | ISO / CE Approval |
| Size (mm) | Outer Diameter (mm) | Length (mm) | Pitch (mm) | N.W (KG) | Qty/Bag (pcs) | Bag Weight (KG) | Approvals |
|---|---|---|---|---|---|---|---|
| 16 | 26 | 40 | 2.5 | 0.083 | 250 | 20.75 | CE / ISO |
| 18 | 29 | 44 | 2.5 | 0.116 | 200 | 23.20 | CE / ISO |
| 20 | 32 | 48 | 3.0 | 0.159 | 132 | 20.98 | CE / ISO |
| 22 | 36 | 52 | 3.0 | 0.214 | 121 | 25.89 | CE / ISO |
| 25 | 40 | 60 | 3.5 | 0.308 | 80 | 24.64 | CE / ISO |
| 28 | 44 | 66 | 3.5 | 0.404 | 56 | 22.62 | CE / ISO |
| 32 | 50 | 72 | 4.0 | 0.615 | 42 | 25.83 | CE / ISO |
| 36 | 56 | 80 | 4.0 | 0.894 | 27 | 24.13 | CE / ISO |
| 40 | 62 | 90 | 4.0 | 1.136 | 25 | 28.40 | CE / ISO |
Designed for mechanical efficiency and substantial material cost savings, this connection system offers unique advantages over traditional splicing techniques:
Designed and manufactured in complete compliance with China standard of JGJ107-2010, UK standard of BS8110, USA standard of ACI318, VN standard of TCVN8163, and equivalent international directives.
Couplers are crafted from structural 40Cr steel, matching international classifications JIS: SCr440, ASTM: 5140, and ISO: 41Cr4.
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.37 ~ 0.44 |
| Silicon (Si) | 0.17 ~ 0.37 |
| Manganese (Mn) | 0.50 ~ 0.80 |
| Chromium (Cr) | 0.80 ~ 1.10 |
| Nickel (Ni) | ≤ 0.30 |
| Phosphorus (P) / Sulfur (S) | ≤ 0.035 each |
Mechanical Properties: Yield strength ≥ 785MPa | Tensile Strength ≥ 980MPa.

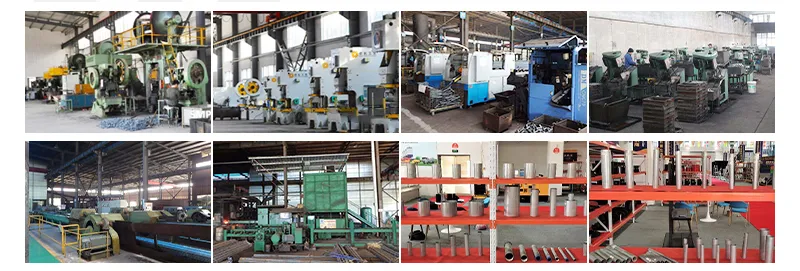

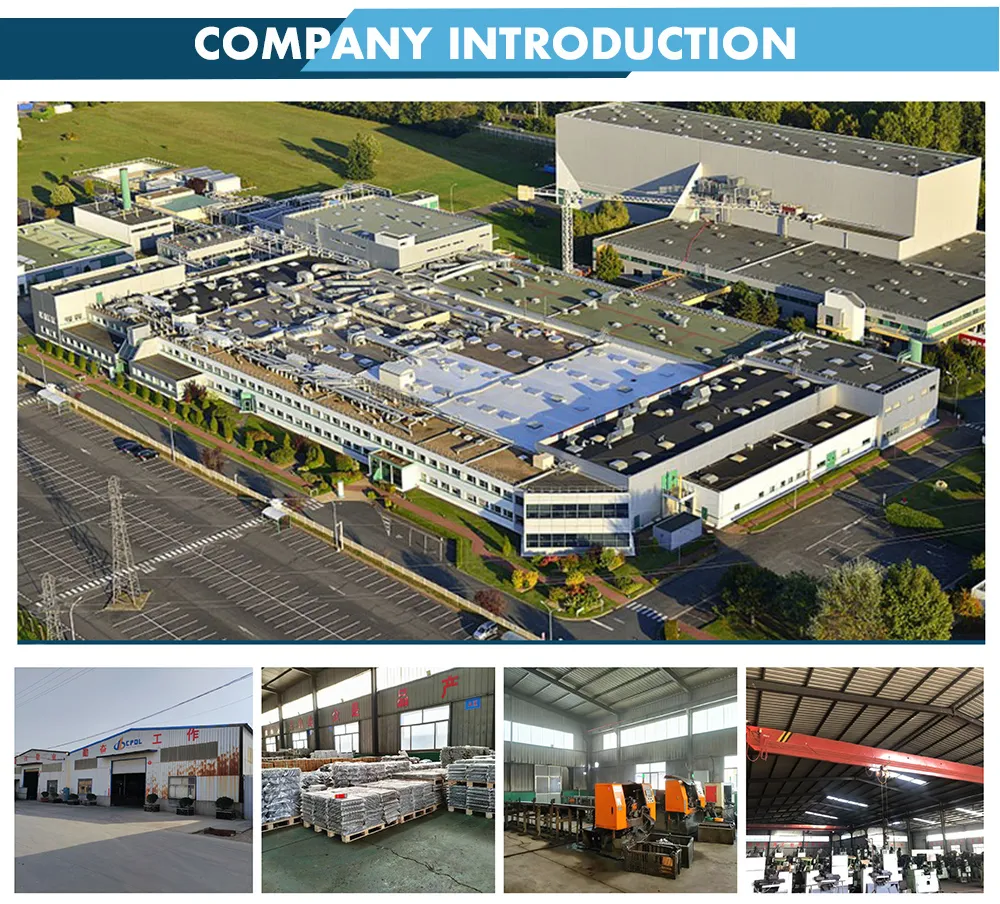

With more than 10 years of expertise in high-grade rebar couplers manufacture, the enterprise operates out of a modern facility spanning over 5,000 square meters. Initially serving the major domestic nuclear power stations and large-scale industrial complexes, the brand expanded globally in 2016. Ongoing research and development led to successful cone-thread structural systems in 2017 and advanced rapid-connect systems in 2018.

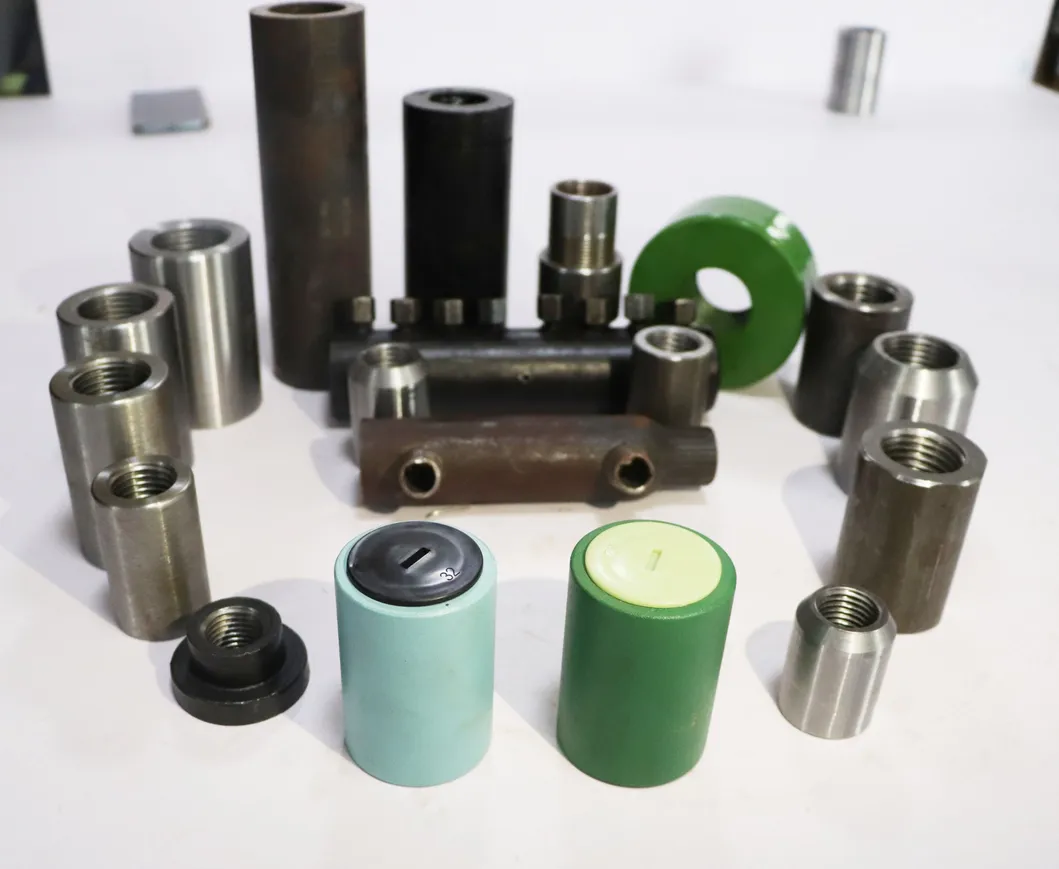

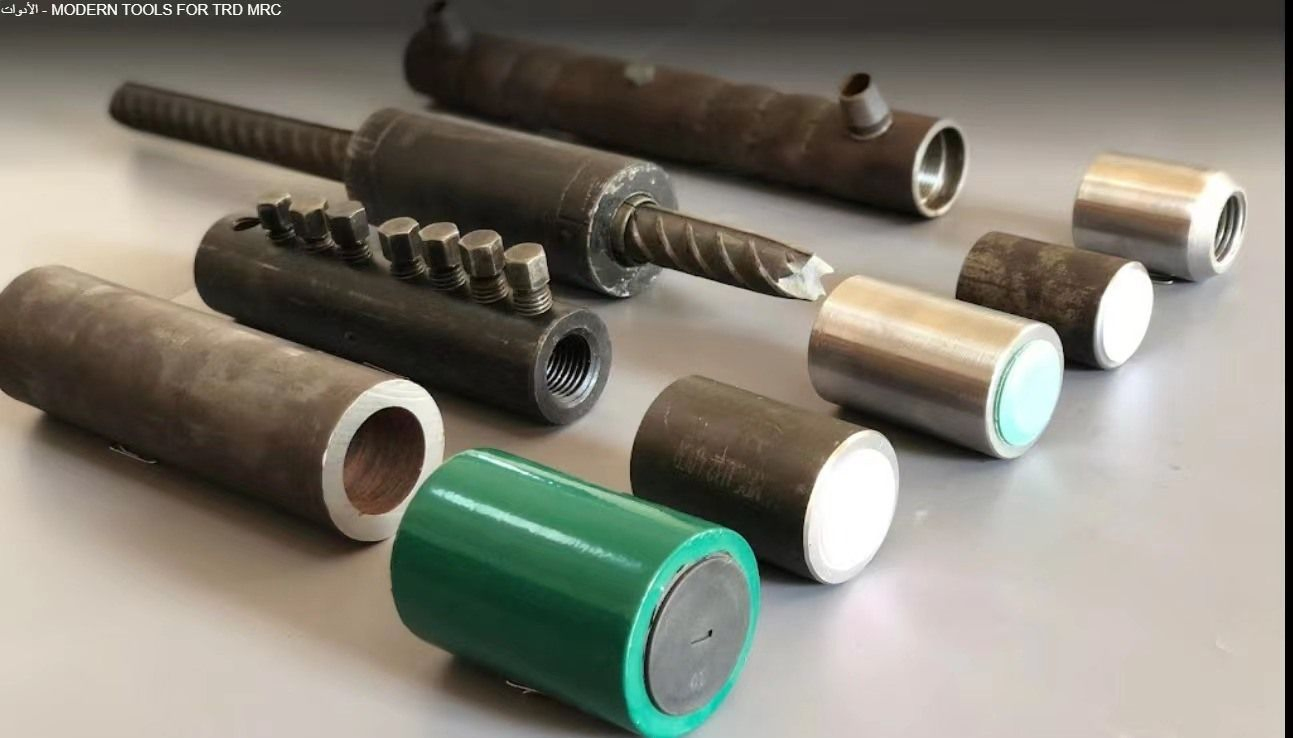

Operating under rigorous internal management protocols, the facility processes and exports standard and custom-made connection solutions to the USA, Europe, Australia, and key Asian-Pacific regions. Annual productivity exceeds 5,000,000 units of versatile configurations, ensuring rapid delivery times (often within 5 days for single container requirements) and uncompromised quality controls.
