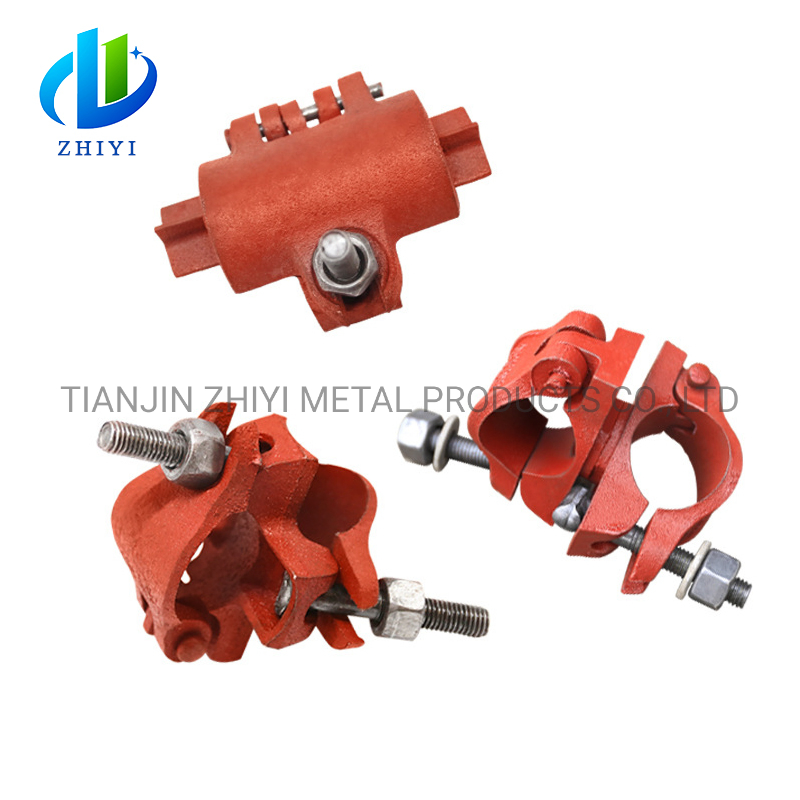

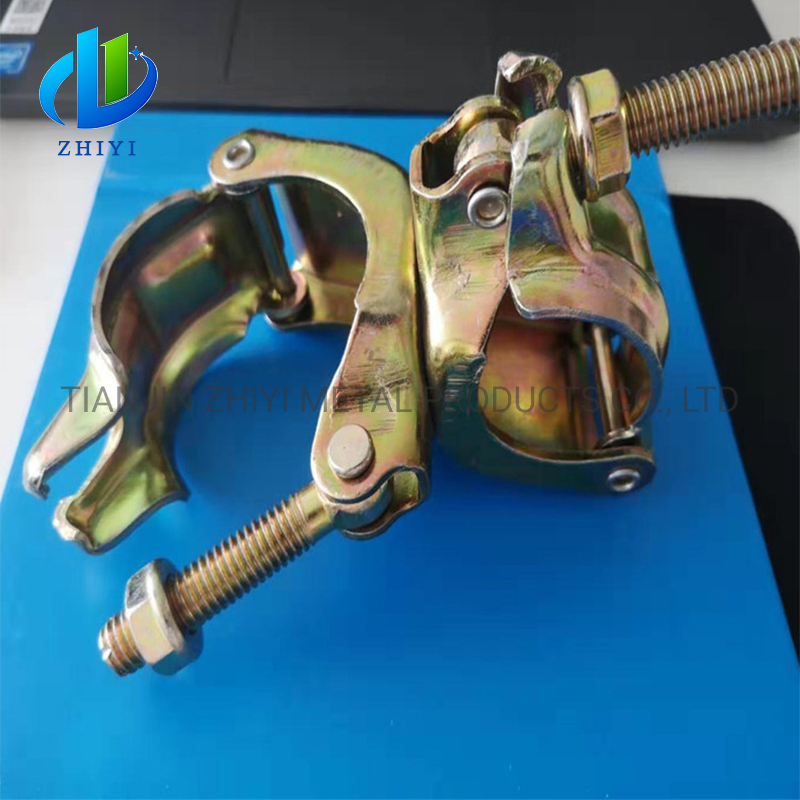

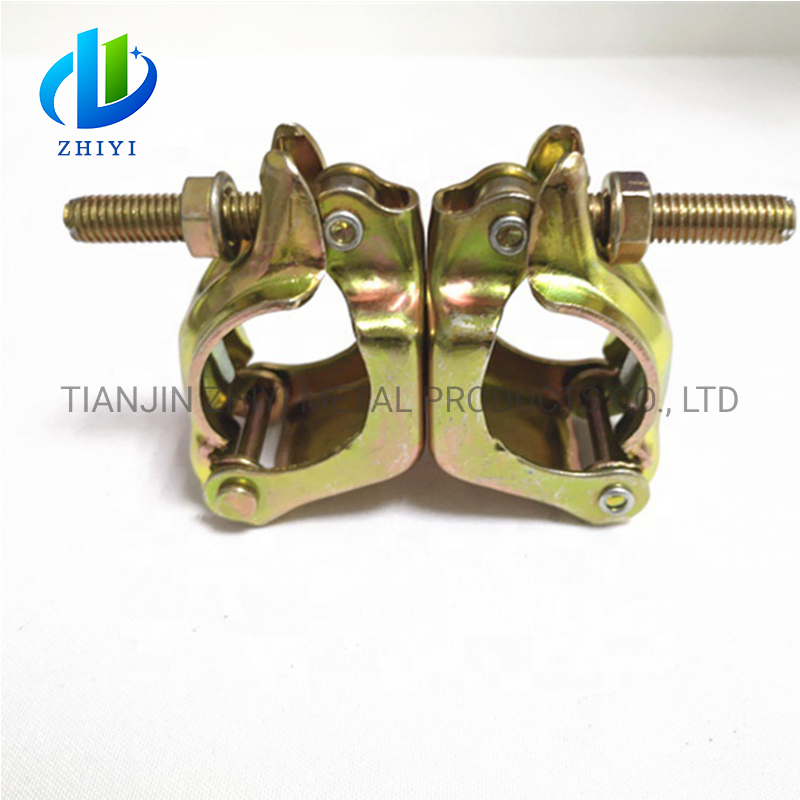

German Type Drop Forged Steel Fixed Right Angle Clamp/ Double Coupler Drop Forged 360 Degree Swivel Clamp/Coupler for Tube and Fittings Scaffold/Scaffolding

Still deciding? Get samples of $ !
Request Sample

Product Description

📊

Product Overview & Specifications

Model NO. scaffolding coupler
Material Steel
Type Fixed
Structural Style Multi-Pole Scaffolding
Framework Frame Combined Scaffolding
Supporting Mode Projecting Scaffolding
Lapping Form Double Scaffolding
Erection Position External Scaffolding
Move Method Attached Lifting Scaffolding
Scaffolding Part Type Scaffolding Coupler
Construction Properties Building Scaffold
Color Silver or Gold
Hscode 7308900000
Certificate ISO9001/ISO14001
Surface Treatment Elec-Galvanized, Hot-Galvanized
Transport Package Pallet
Specification 48.6*48.6mm
Production Capacity 1000 tons Per Month
🔧

Product Description

Item: Scaffolding coupler/clamp. Scaffolding coupler is used to assemble tube-and-coupler scaffolding systems. Special marking can be provided as per customer requirements.

German Type Drop Forged Steel Fixed Right Angle Clamp / Double Coupler Drop Forged 360 Degree Swivel Clamp

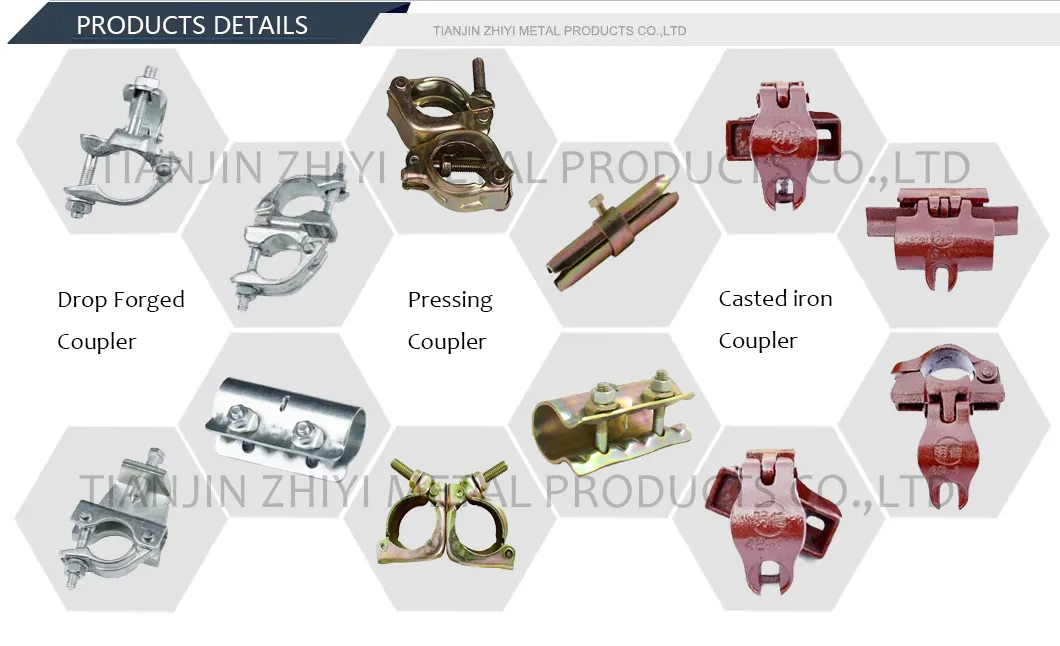

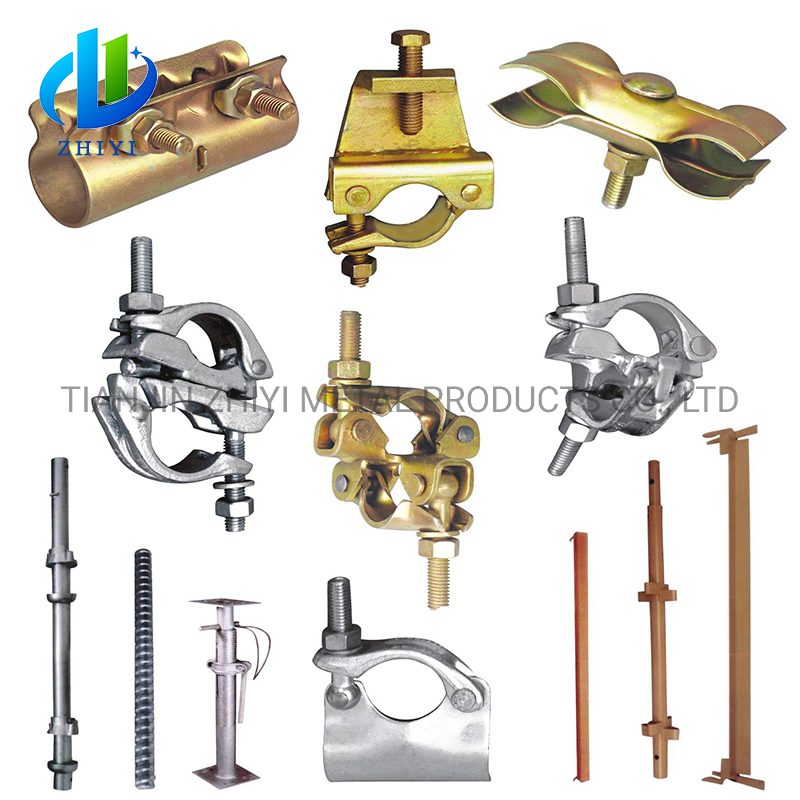

Scaffolding Coupler Fittings for Tube and Scaffold
⚙️ 1. Pressed Scaffolding Coupler Fittings
NAME STANDARD SIZE WEIGHT / KG MATERIAL SURFACE TREATMENT
Double coupler BS1139 48.3mm 0.82 Q235 Electro-Galvanized
Swivel coupler BS1139 48.3mm 1.00 Q235 Electro-Galvanized
Half Coupler BS1139 48.3mm 0.45 Q235 Electro-Galvanized
Putlog coupler BS1139 48.3mm 0.58 Q235 Electro-Galvanized
Board retaining coupler BS1139 48.3mm 0.57 Q235 Electro-Galvanized
Sleeve coupler BS1139 48.3mm 1.00 Q235 Electro-Galvanized
Inner Joint Pin Coupler BS1139 48.3mm 0.60 Q235 Electro-Galvanized
Beam Coupler BS1139 48.3mm 1.00 Q235 Electro-Galvanized
Limpet Coupler BS1139 48.3mm 0.32 Q235 Electro-Galvanized
Ladder Coupler BS1139 48.3mm 0.45 Q235 Electro-Galvanized
⚙️ 2. Drop Forged Scaffolding Coupler Fittings
NAME STANDARD SIZE WEIGHT / KG MATERIAL SURFACE TREATMENT
Double Coupler BS1139/EN74 48.3mm 0.98 Q235 Electro-Gal. / HDG
Swivel Coupler BS1139/EN74 48.3mm 1.12 Q235 Electro-Gal. / HDG
Half Coupler BS1139/EN74 48.3mm 0.52 Q235 Electro-Gal. / HDG
Board Retaining Coupler BS1139/EN74 48.3mm 0.62 Q235 Electro-Gal. / HDG
Putlog Coupler BS1139/EN74 48.3mm 0.63 Q235 Electro-Gal. / HDG
Girder/Beam Coupler BS1139/EN74 48.3mm 1.50 Q235 Electro-Gal. / HDG
Sleeve Coupler BS1139/EN74 48.3mm 1.00 Q235 Electro-Gal. / HDG
Inner Joint Coupler BS1139/EN74 48.3mm 1.05 Q235 Electro-Gal. / HDG
⚙️ 3. Cast Iron Scaffolding Coupler Fittings
NAME STANDARD SIZE WEIGHT / KG MATERIAL SURFACE TREATMENT
Double Coupler BS1139 48.3mm 1.00 Ductile iron Painted
Swivel Coupler BS1139 48.3mm 1.00 Ductile iron Painted
Inner Joint Coupler BS1139 48.3mm 1.00 Ductile iron Painted

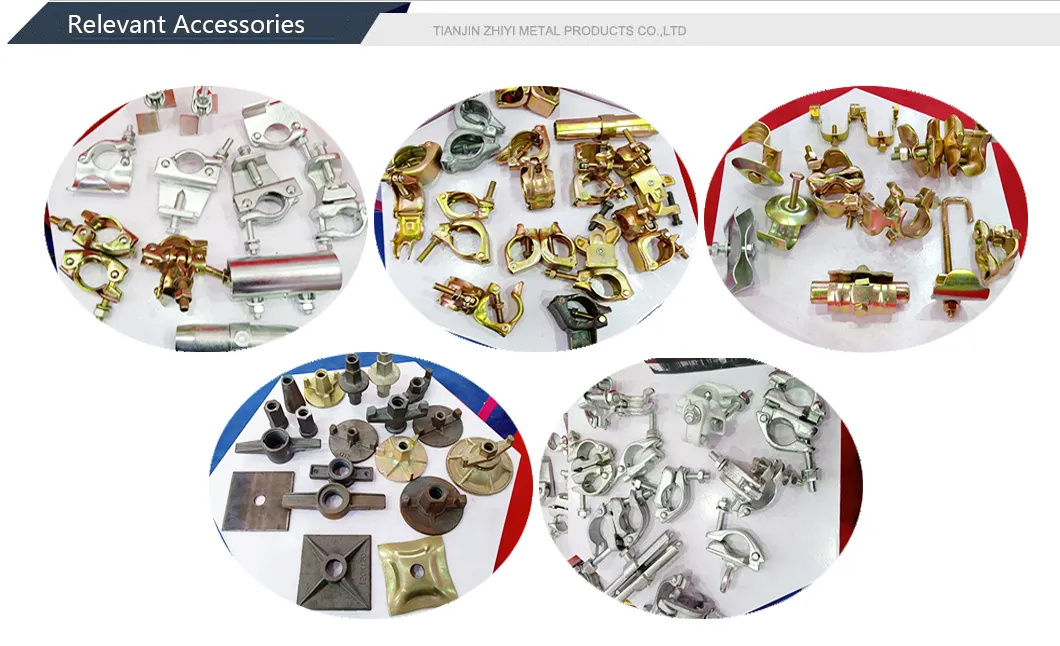

Heavy Duty Drop Forged Clamps
🏗️

Product Application

Scaffolding couplers serve as structural connections widely utilized across construction, marine engineering, infrastructure projects, and building maintenance. They provide strong stability and maximum safety for high-altitude operational platforms.

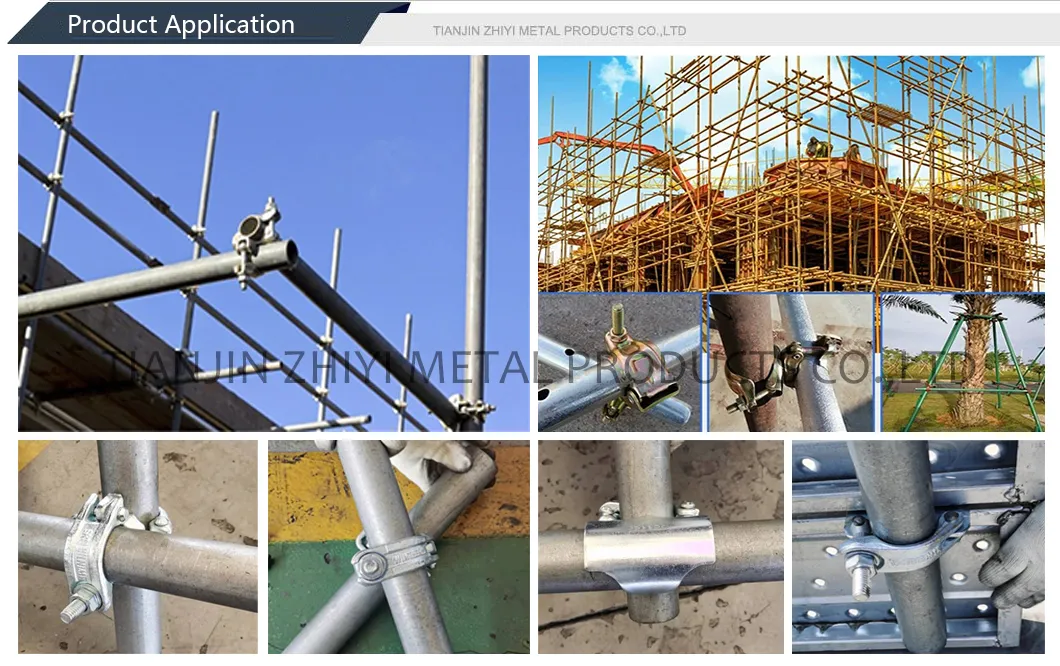

Scaffolding Coupler Construction and Field Site Application
📦

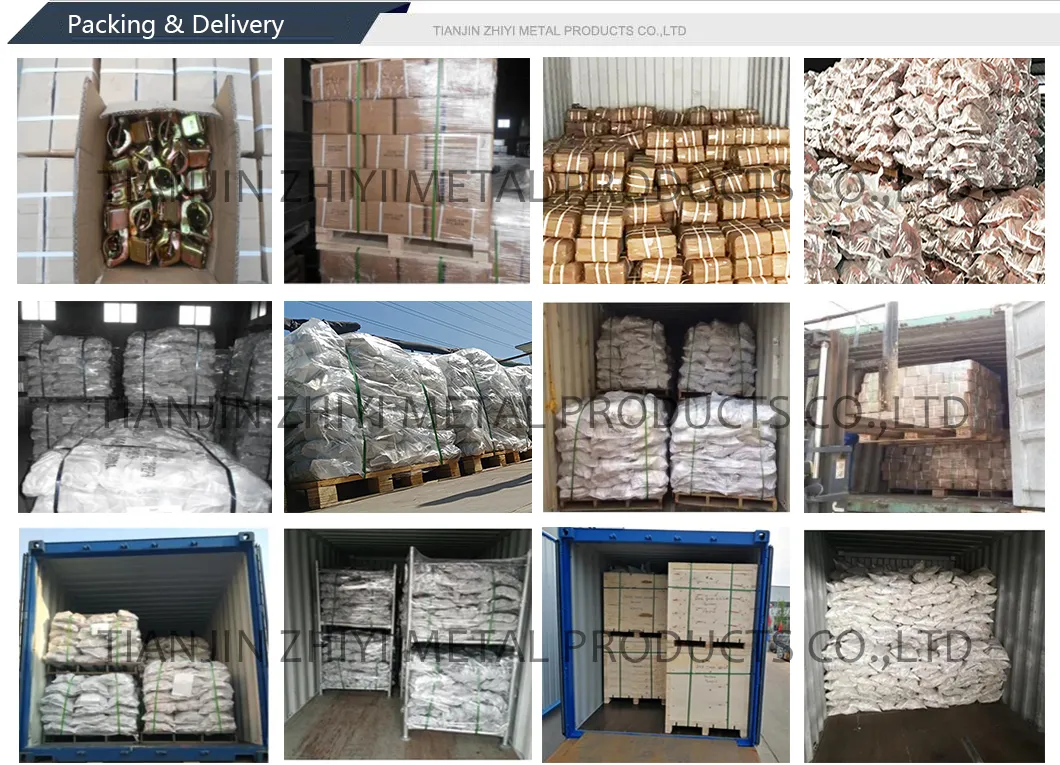

Packaging & Shipping

All couplers are strictly packed in steel pallets or export-grade bags with heavy duty wooden crates to guarantee stability and prevent surface scratches or damage during shipping.

Pallet Packaging and Shipping Container Load Prep
🔗

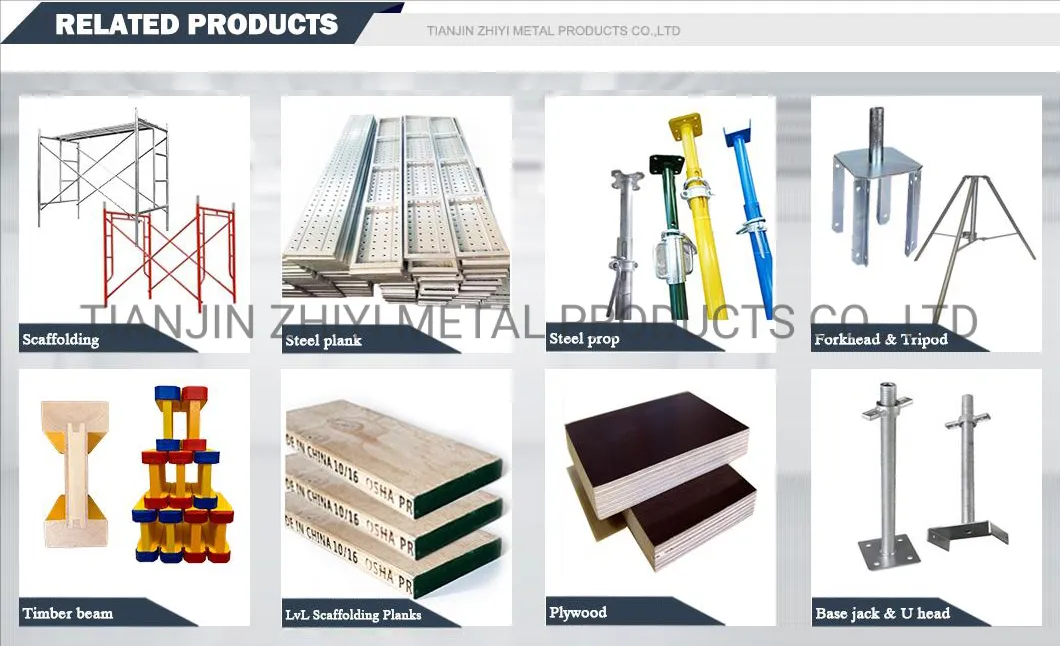

Related Products

Explore our extensive list of metal formwork components, pipes, structural steel items, and supporting fittings for various engineering requirements.

Related Building Metalwork Products and Scaffoldings
🏢

Company Profile

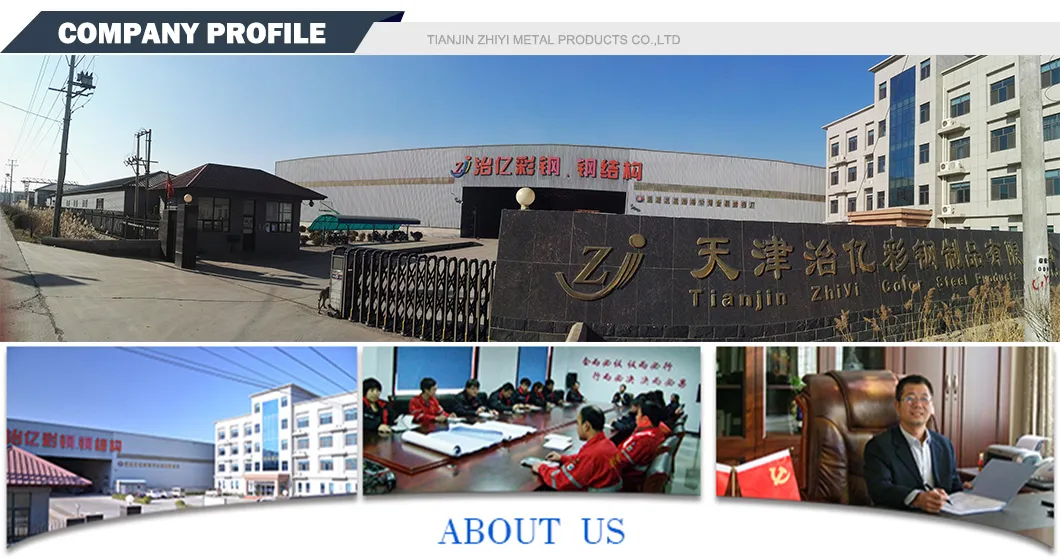

Manufacturing Plant Overview and Production Base

Our company was founded in 2002, holding a registered capital of ten million RMB. Our base is located in a primary northern port city of China, covering an area of 27,000 square meters. We specialize in the design and manufacture of high-quality metal products, which have been widely recognized by domestic and global customers alike.

Our main products include steel props, scaffolding systems, steel planks, LVL planks, plywood, base jacks, scaffolding couplers, formwork accessories, galvanized pipes, H20 beams, ground screws, solar mounting structures, C/Z/H section steels, and other structural materials.

With professional management personnel and a highly qualified technical team, we focus strictly on the key goals of "innovation, quality, service, economy, and dedication." Quality control is considered our ultimate corporate vitality.

Workshop Assembly Lines and Machine Facilities
Precision Metalwork Machinery
📜

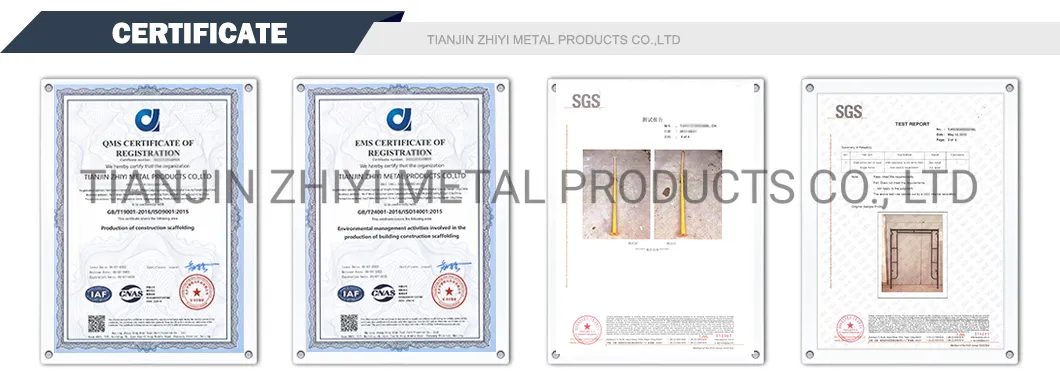

Certifications

Our production cycles strictly adhere to ISO9001 Quality Management Standards and ISO14001 Environmental System Requirements, ensuring consistency, high physical durability, and standard weight specifications.

ISO and Structural Performance Certifications

Frequently Asked Questions

1How to buy your ideal products?

You can provide us with your structural drawings, and we will produce them according to your exact designs. Alternatively, we can design the layout and solutions for your structural project if you do not have a clear plan yet.

2What are the available payment terms?

Both TT (Telegraphic Transfer) and L/C (Letter of Credit) are accepted. TT payment method is generally more appreciated as it speeds up processing.

3What is the expected delivery time?

Delivery time mostly depends on the overall order quantity. Typically, the production and delivery cycle will range between 15 to 30 days.

4How is the product quality guaranteed?

All metal components and scaffolding prop piles are manufactured using first-quality raw materials under strict ISO certification guidelines, including performance stress tests and weight evaluations.

5What steel grades are used in manufacturing?

Our scaffolding systems and coupler systems are built primarily from Q235 steel conical pipes with high-quality welded blades, suitable for a vast variety of complex geological locations.

6What is the typical ordering process?

Buyer sends an initial inquiry → Receive our official quotation → Order detail confirmation → Buyer arranges 30% deposit → Production starts instantly upon receipt of the deposit.
