Tube and Coupler Scaffold System Fixed Clamps Couplers

Basic Info.

MaterialSteel

TypeFixed

Structural StyleMulti-Pole Scaffolding

FrameworkCombined Scaffolding

Supporting ModeProjecting Scaffolding

Lapping FormDouble Scaffolding

Erection PositionExternal Scaffolding

Move MethodNo

Scaffolding Part TypeScaffolding Couplers

Construction PropertiesBuilding Scaffold

Raw MaterialQ235

Processing MethodDrop Forged

Coupler TypeUSA Type, America Type

FinishingZinc Plated

PackagePlastic Woven Bags and Steel Pallet

Processing Capacity25 Containers Per Month

Business TypeManufacturer and Exporter

BoltEye Bolt M14X95mm, Grade 8.8

NutAf 22mm Flanged Nut

Connect TypePipe and Clamp Connection Scaffold

H.S. Code73089000

Tube Diameter48.3mmx48.3mm, 2"X2"

SampleFree and Available

Test StandardANSI//Ssfi Sc100-5/05

CertificateSGS

Transport PackageNylon Bags and Steel Pallet

Specification48.3mmx48.3mm

OriginChina

HS Code73089000

Production Capacity500000 PCS/Month

Product Description

Tube and fittings scaffolding is a traditional scaffolding, all the tubes are joined by clamps vertically and horizontally. Clamps are fixed by screwed Eye bolts. The diamater of the tubes is usually 48.3mm, so the diameter of the clamps are also of 48.3mm. It is widely used in commercial construction, residential construction, industrial construction, oil and gas industry, bridge construction etc.

This American type fixed double coupler is used to connect two tubes at 90 degrees (crossed). Once the bolt and nut are tightened, it is very strong can load at least 100 KN.

Raw material: Q235 steel bar
Processing method: drop forged
Diameter: 48.3mmx48.3mm
Finishing: Zinc plated
Processing capacity: 25 containers per month
Test Standard: ANSI/SSFI SC100-5/05
Package: plastic woven bags and steel pallet

Tube and Fittings Scaffolding Forged fixed Clamps Parameter Table:

Component Name	Diameter	Configuration	Finishing	Unit Weight (kg/pc)
America type Forged Fixed TUBE Clamp	48.3mmx48.3mm	Eye Bolt: M14x91mm, Nut AF 22 mm Flanged Nut	hot dip galvanized	1.45kg

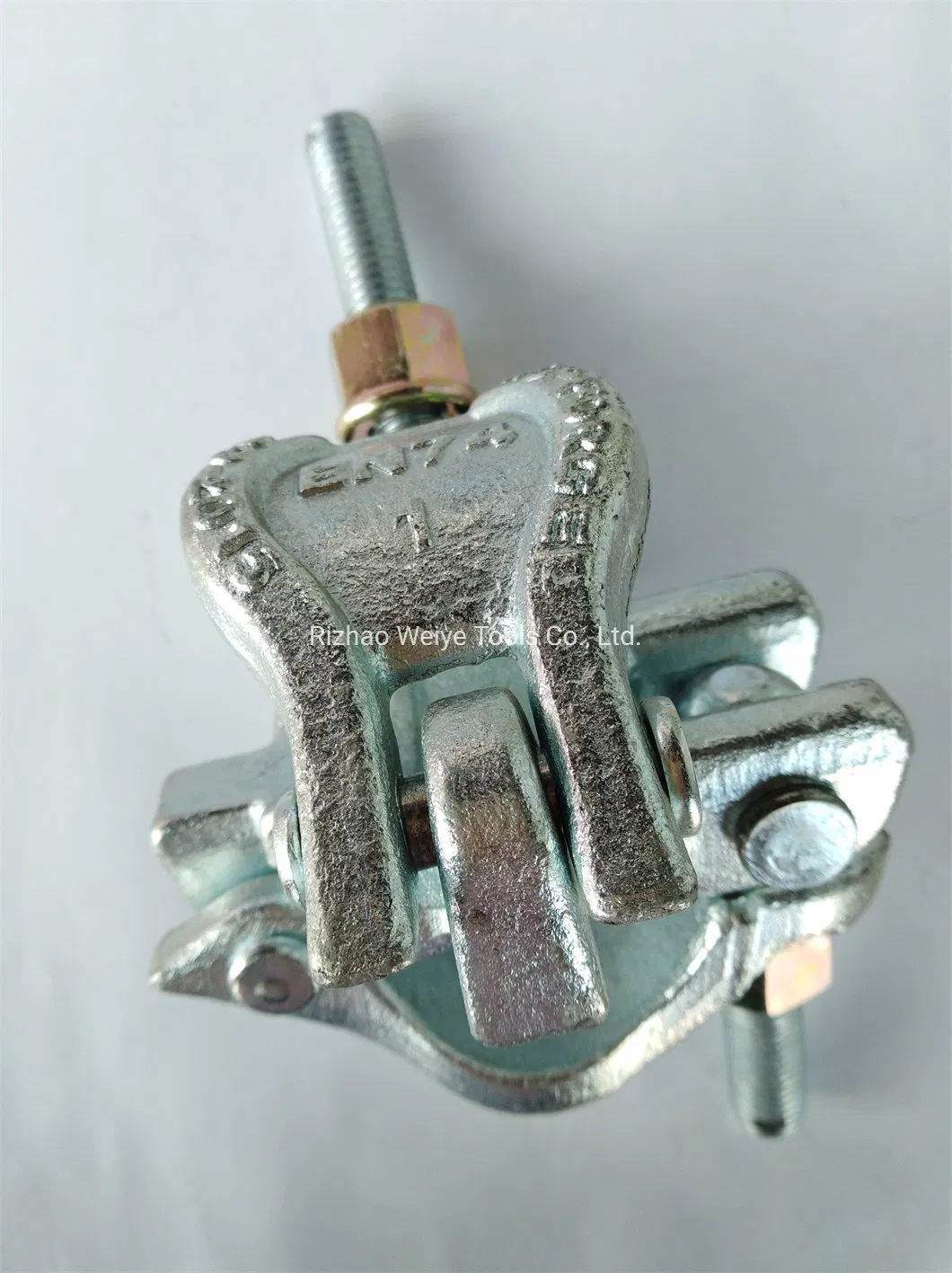

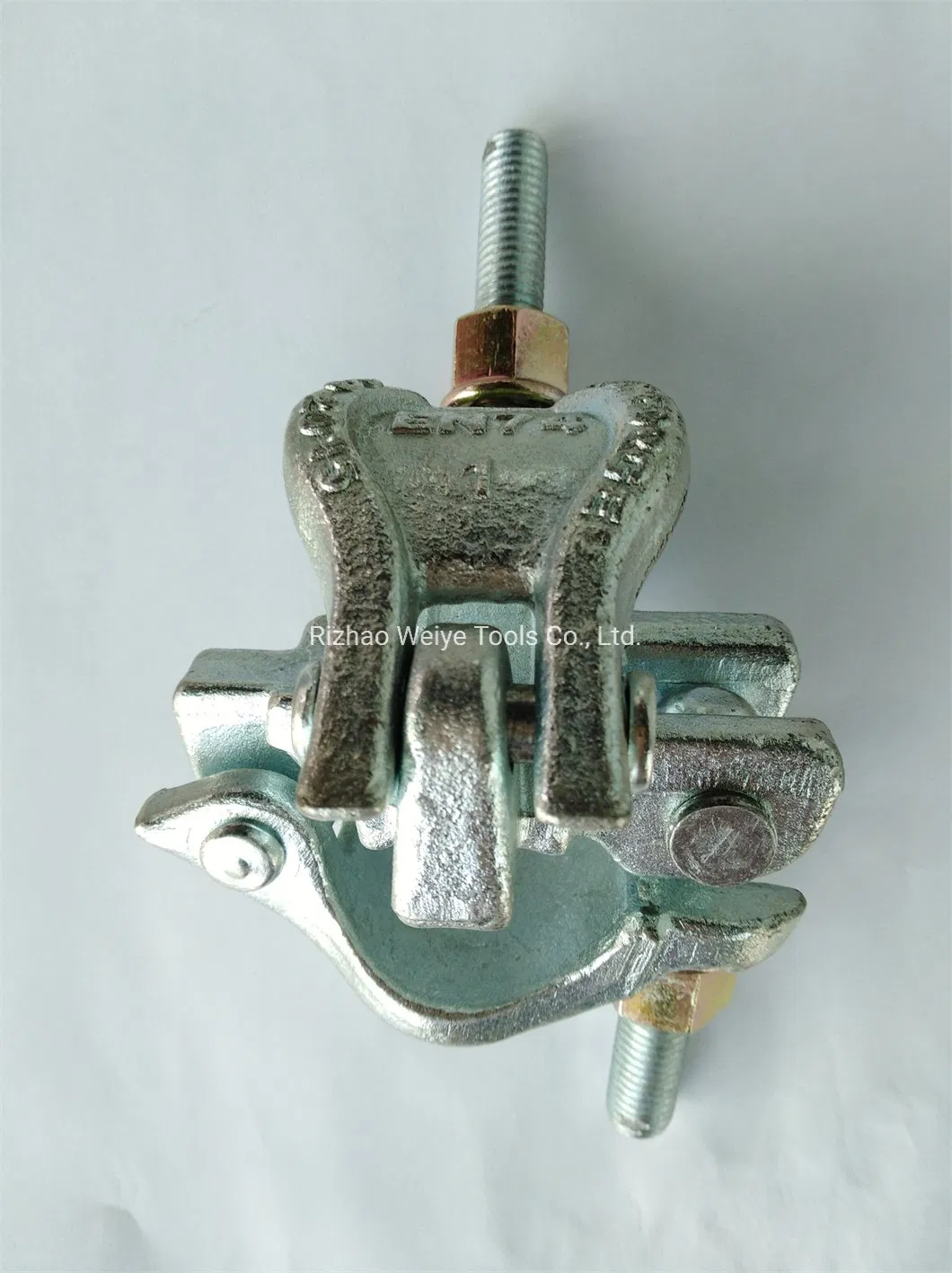

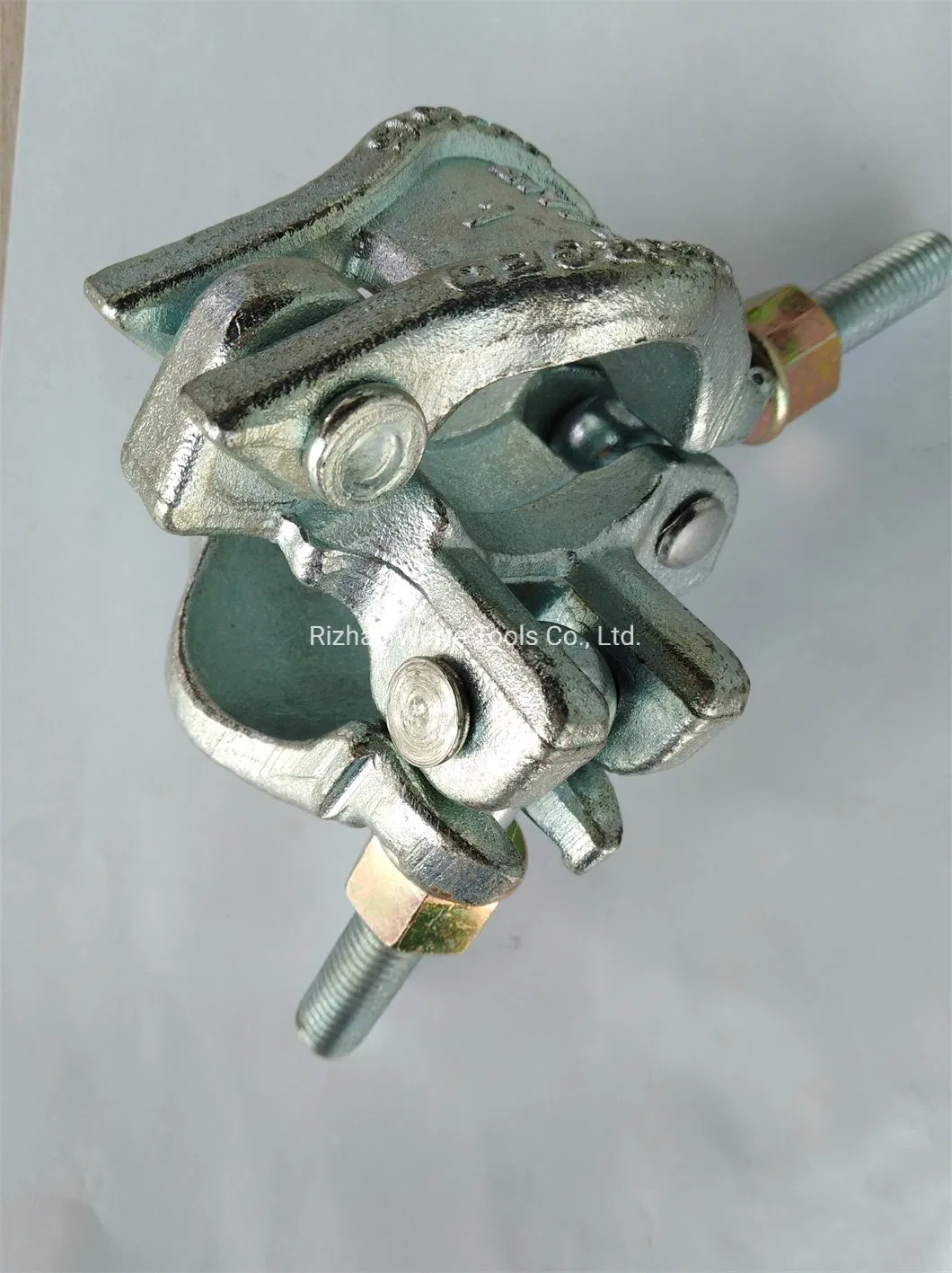

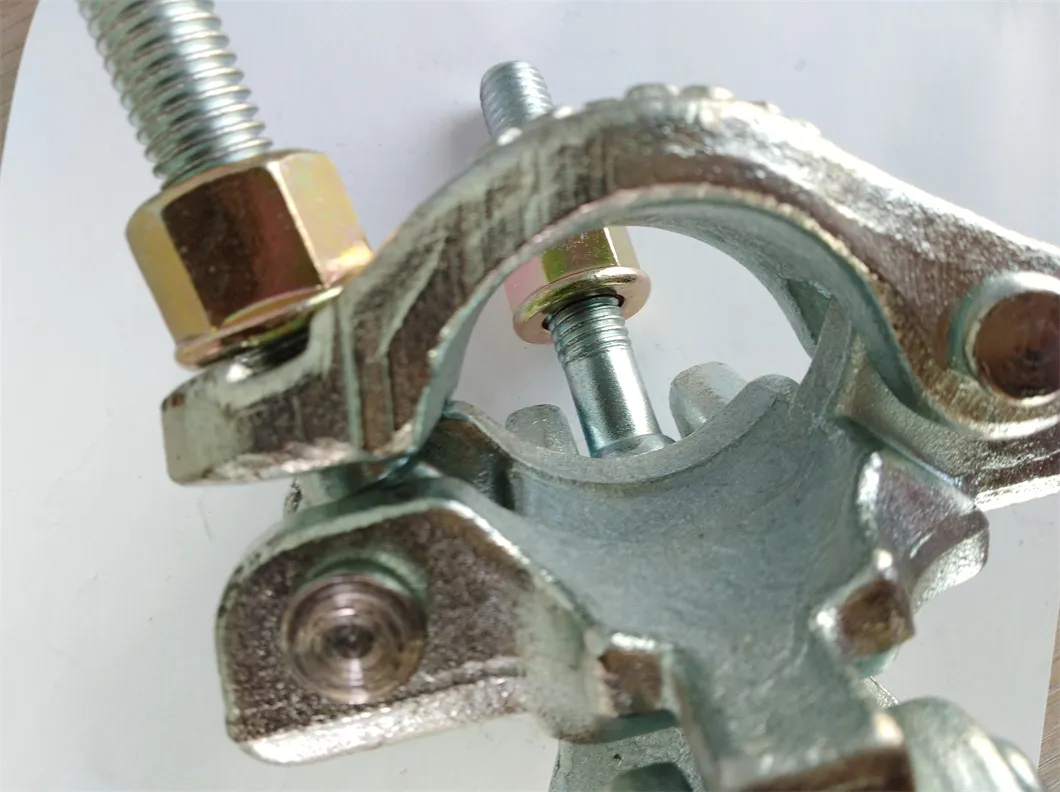

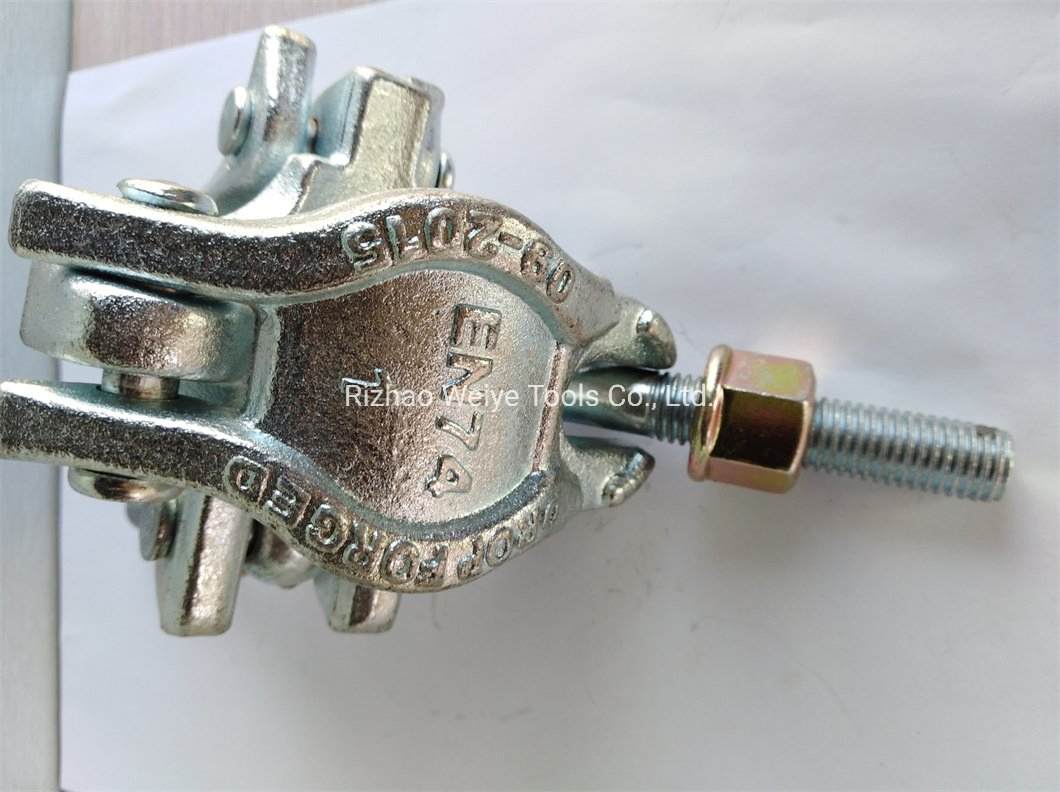

Detailed Photos

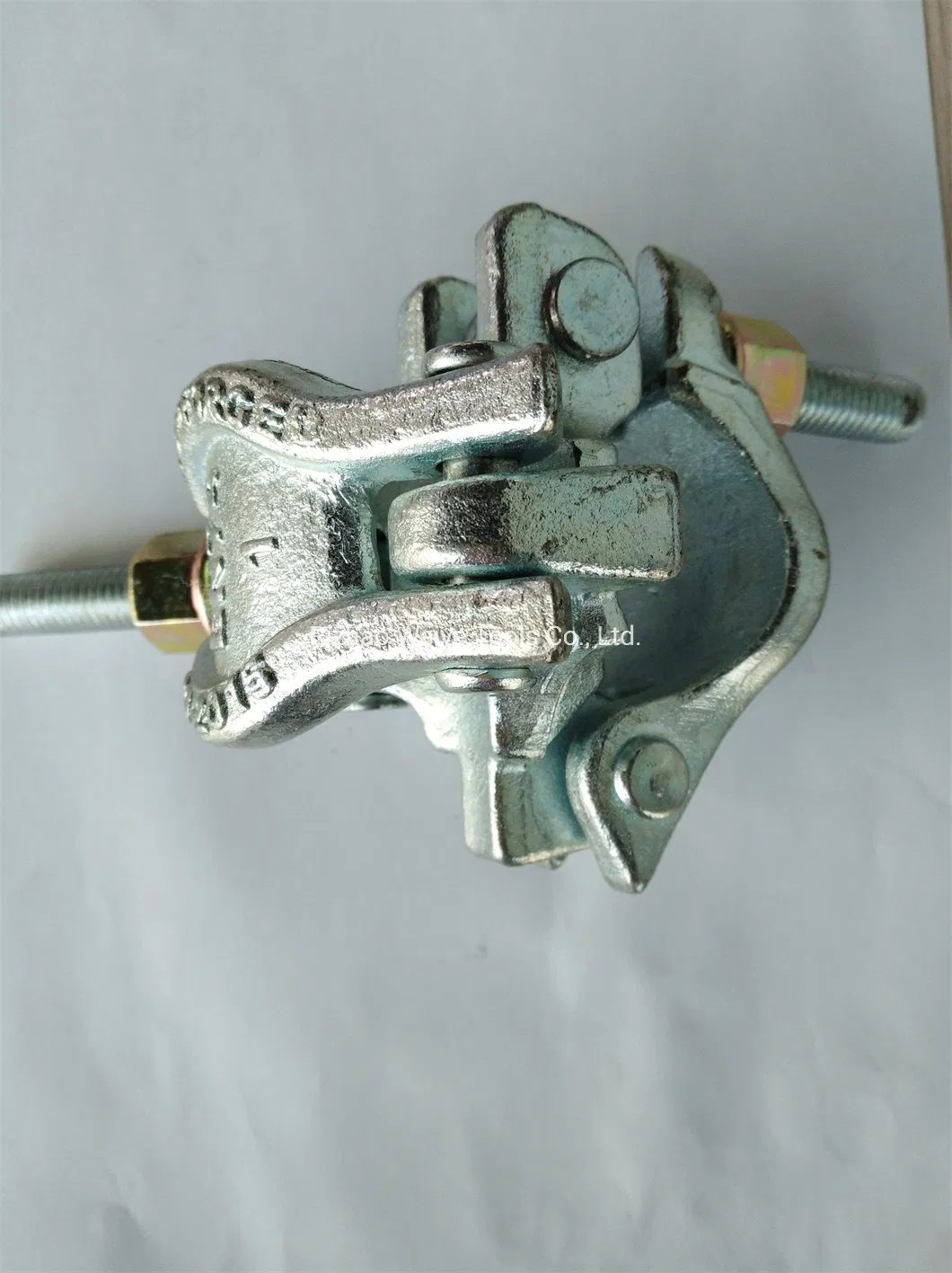

Tube and Coupler Scaffold System Fixed Clamps Couplers

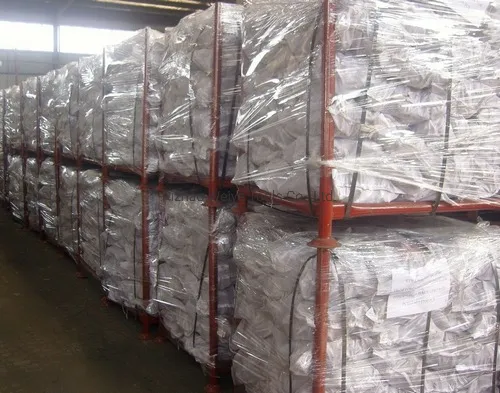

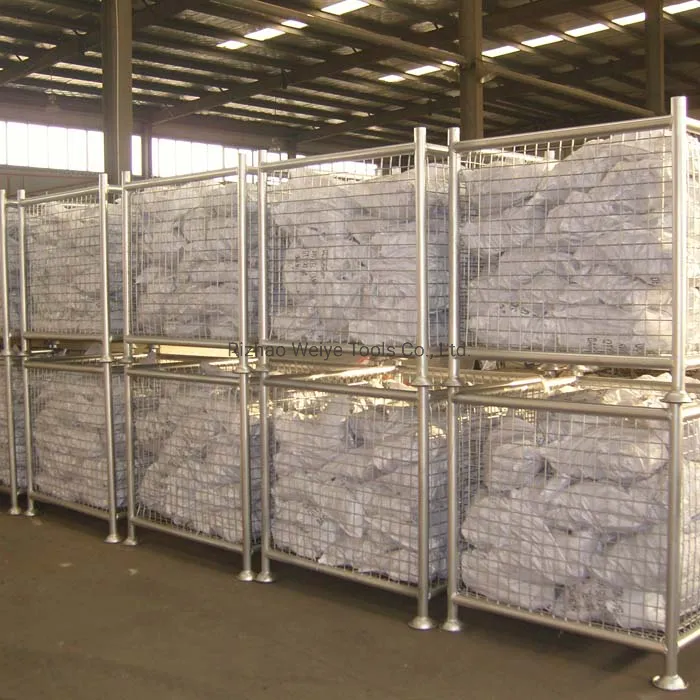

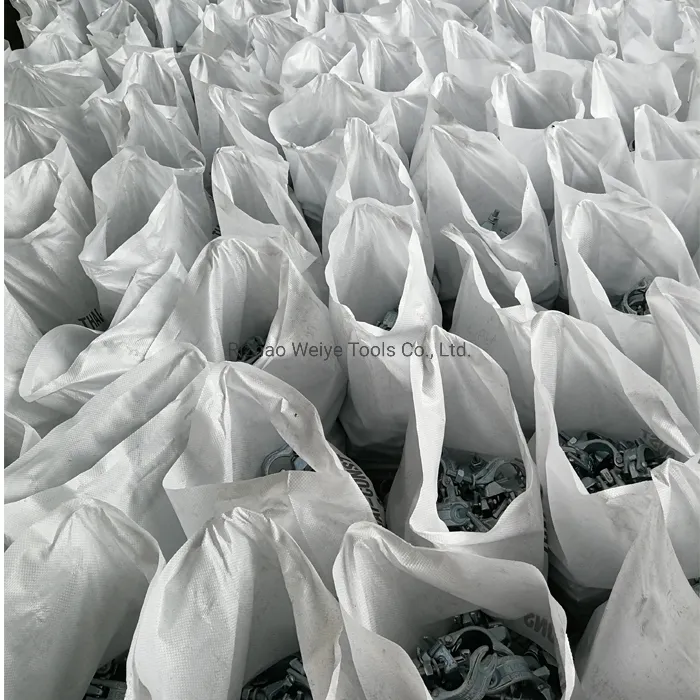

Packaging & Shipping
