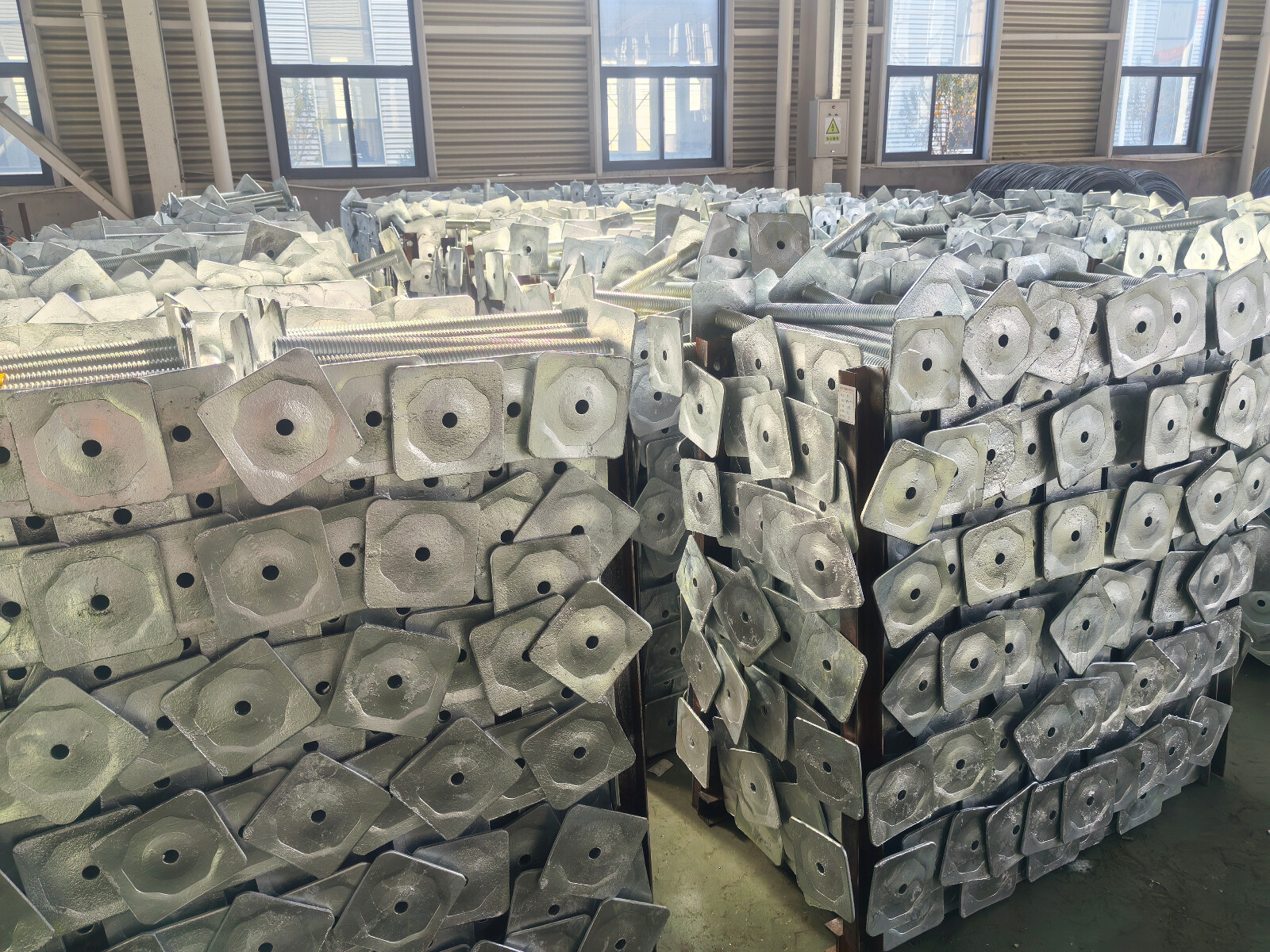

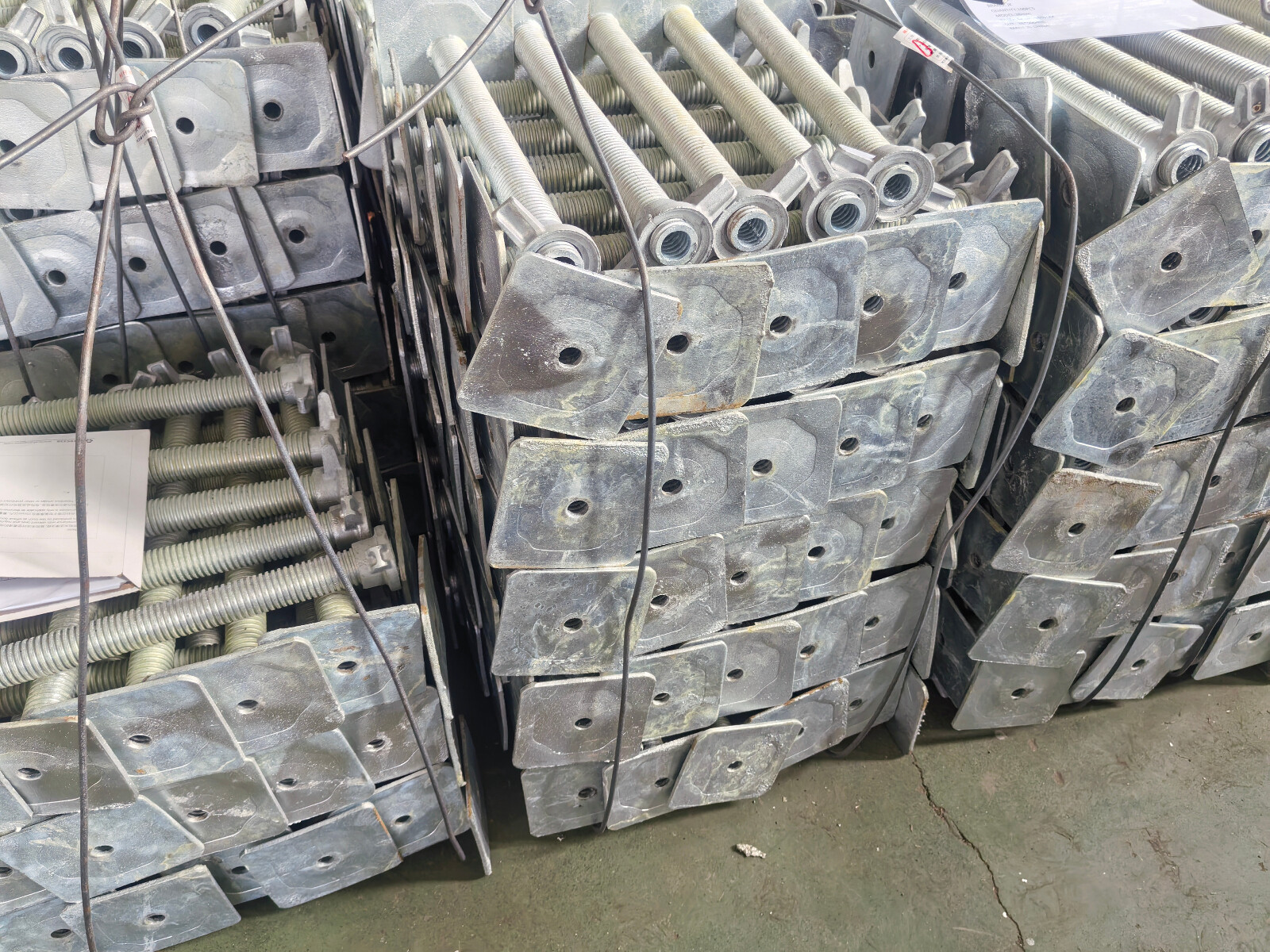

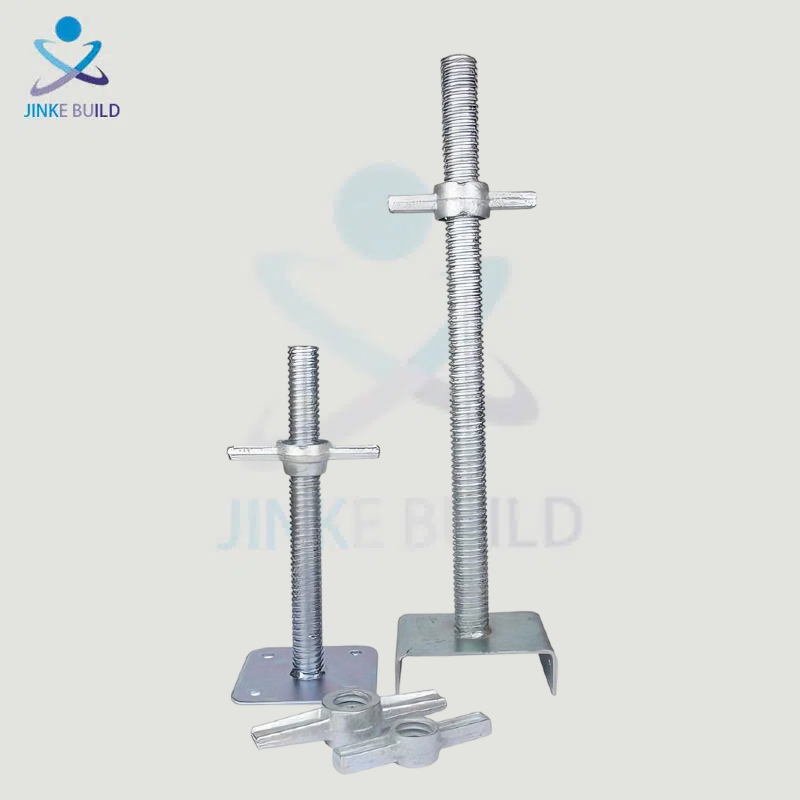

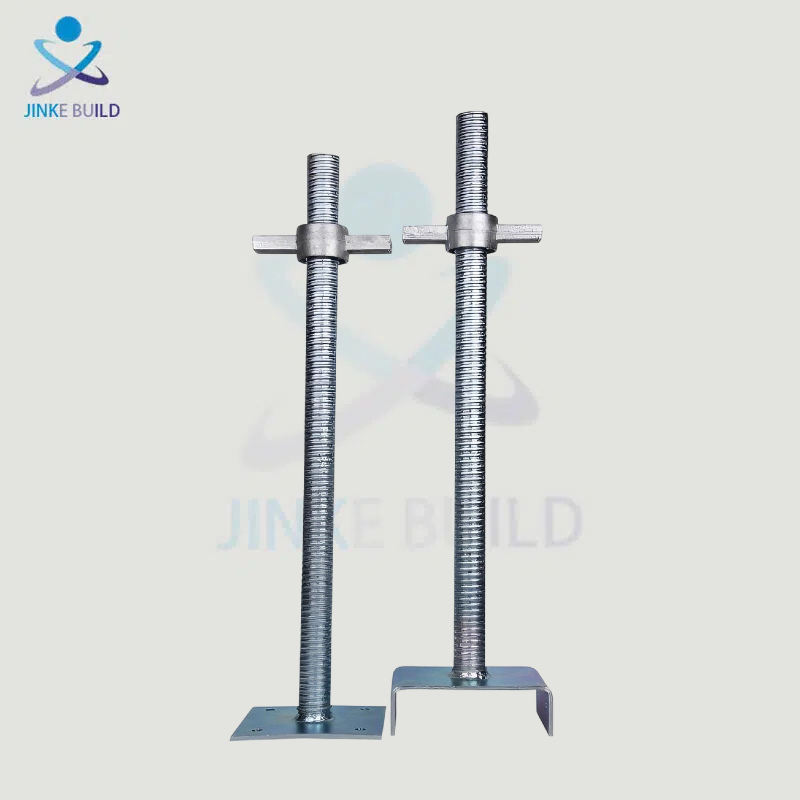

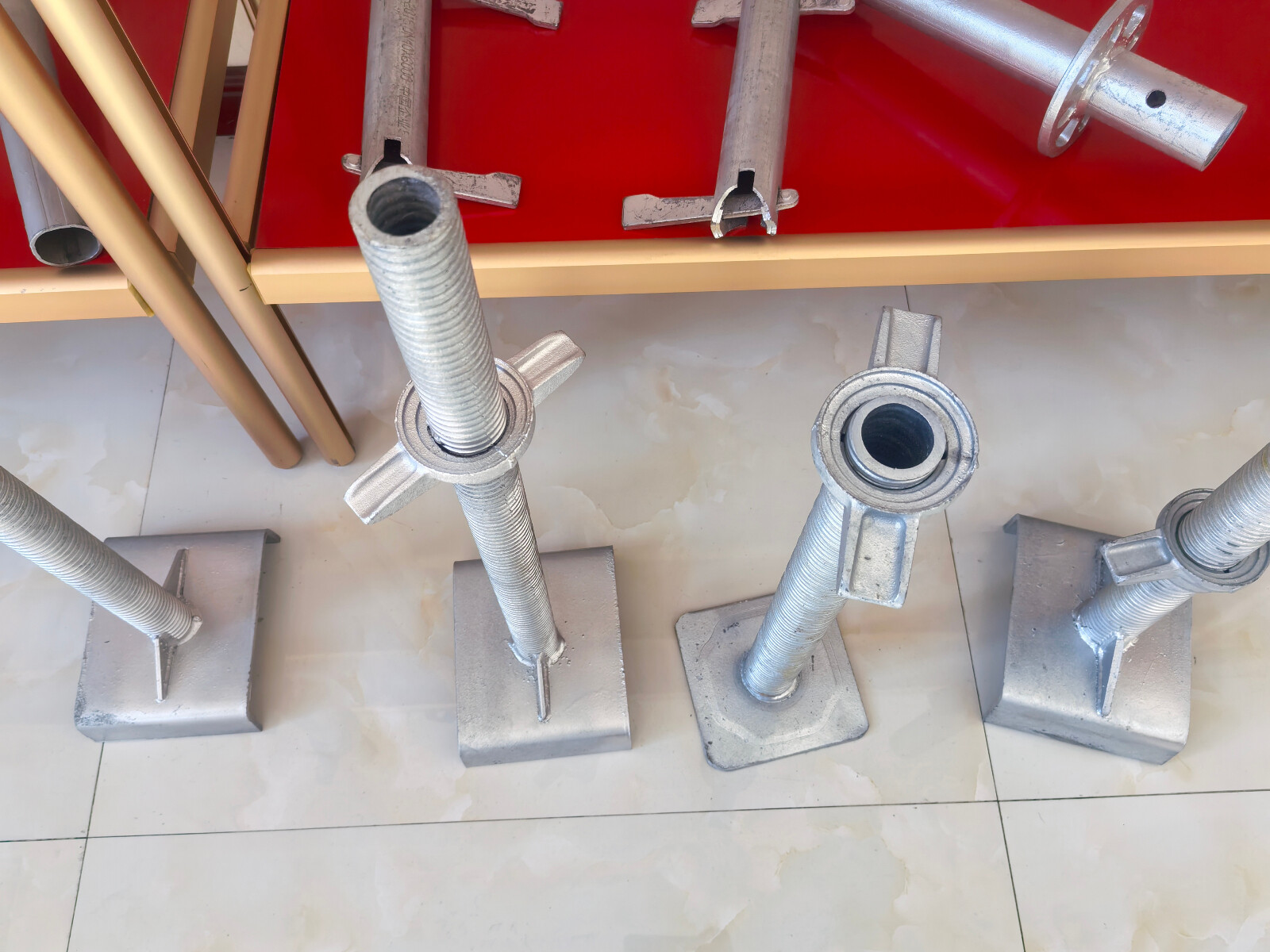

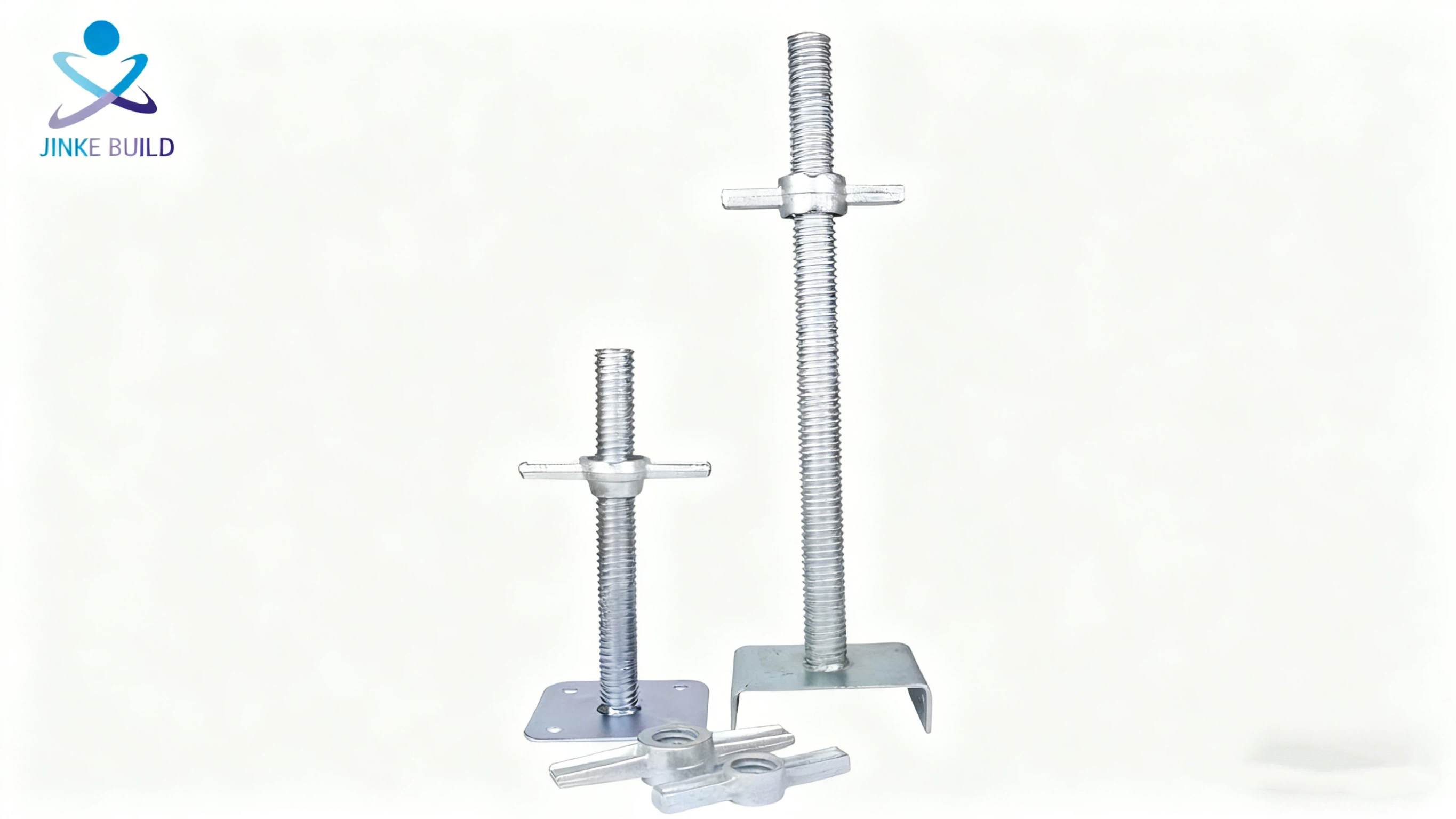

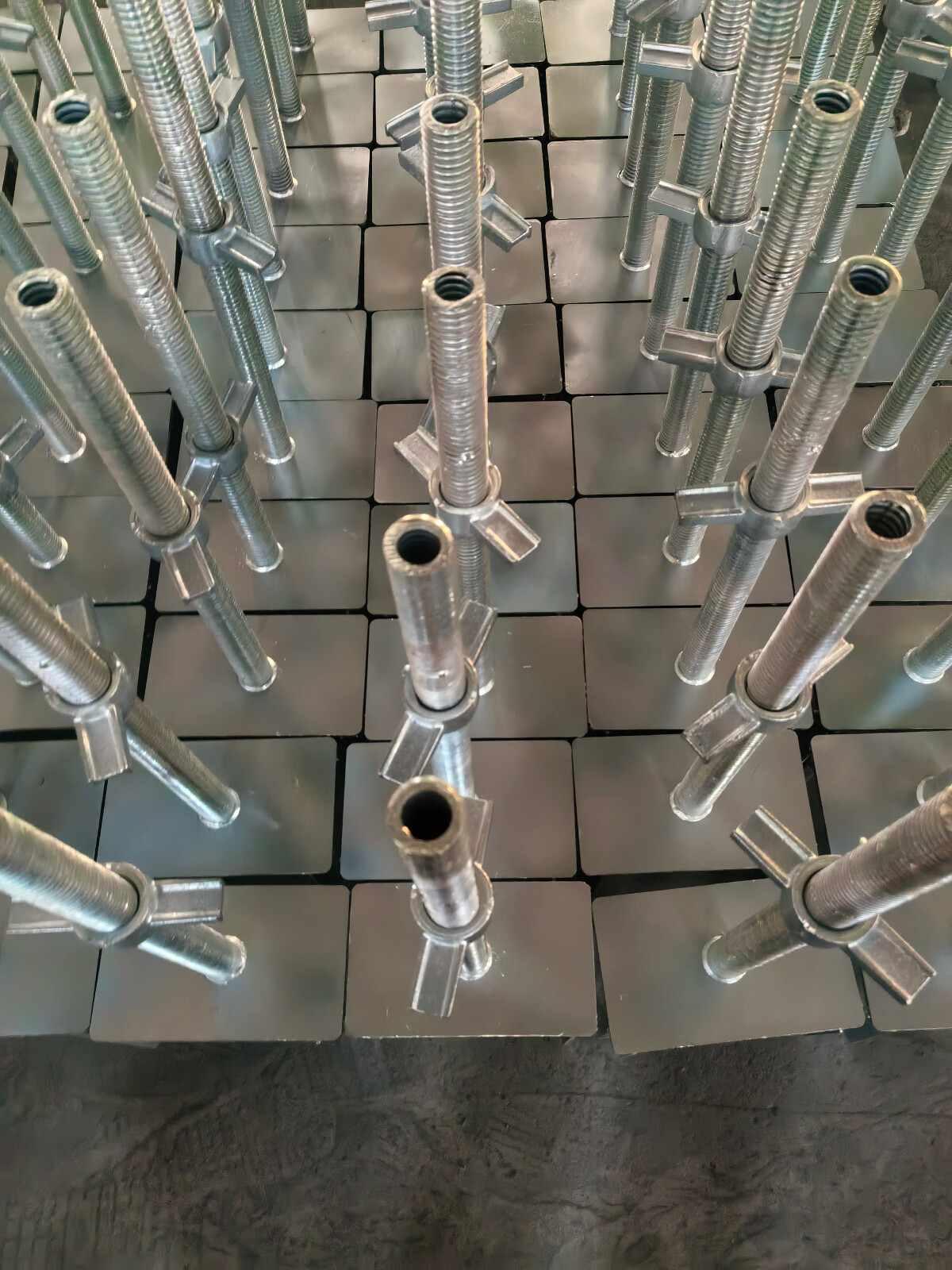

Our Jack Base is designed to provide stable and secure support for all types of scaffolding systems. Made from high-strength steel with precise threading, it allows easy height adjustment to ensure a level and safe working platform on uneven ground. The heavy-duty base plate increases ground contact area, offering superior load-bearing capacity and enhanced safety at job sites.
| Type | Name | Screw Size (mm) | Base Plate (mm) Option 1 | Base Plate (mm) Option 2 | Base Plate (mm) Option 3 |
|---|---|---|---|---|---|
| Solid | Jack Base | D30 * L400 / L600 | 120 * 120 * T4/5 | 140 * 140 * T4/5 | 150 * 150 * T4/5 |
| 32 * 400/600 | 120 * 120 * 4/5 | 140 * 140 * 4/5 | 150 * 150 * 4/5 | ||
| 34 * 400/600 | 120 * 120 * 4/5 | 140 * 140 * 4/5 | 150 * 150 * 4/5 | ||
| 38 * 400/600 | 120 * 120 * 4/5 | 140 * 140 * 4/5 | 150 * 150 * 4/5 | ||
| 42 * 400/600 | 120 * 120 * 4/5 | 140 * 140 * 4/5 | 150 * 150 * 4/5 | ||
| Solid | U-Head Jack | 30 * 400/600 | 150 * 120 * 50 * 4/5 | 150 * 150 * 50 * 4/5/6 | - |
| 32 * 400/600 | 150 * 120 * 50 * 4/5 | 150 * 150 * 50 * 4/5/6 | - | ||
| 34 * 400/600 | 150 * 120 * 50 * 4/5 | 150 * 150 * 50 * 4/5/6 | - | ||
| 38 * 400/600 | 150 * 120 * 50 * 4/5 | 150 * 150 * 50 * 4/5/6 | - | ||
| 42 * 400/600 | 150 * 120 * 50 * 4/5 | 150 * 150 * 50 * 4/5/6 | - | ||
| Hollow | Jack Base | 32 * 400/600 | 150 * 120 * 50 * 4/5 | 150 * 150 * 50 * 4/5/6 | - |
| 34 * 400/600 | 150 * 120 * 50 * 4/5 | 150 * 150 * 50 * 4/5/6 | - | ||
| 38 * 400/600 | 150 * 120 * 50 * 4/5 | 150 * 150 * 50 * 4/5/6 | - | ||
| 42 * 400/600 | 150 * 120 * 50 * 4/5 | 150 * 150 * 50 * 4/5/6 | - |
Our scaffolding Jack Base is made from high-quality Q235/Q345 steel, ensuring excellent strength and durability. The screw rod is available in various diameters and lengths, designed with either rolled or cut threads for smooth adjustment.
Surface treatments such as hot-dip galvanizing or painting provide strong corrosion resistance for long-term outdoor use. The heavy-duty base plate is customizable in size and thickness to enhance stability and load-bearing performance. Suitable for all scaffolding systems, it offers reliable support and precise height adjustment on uneven ground.
