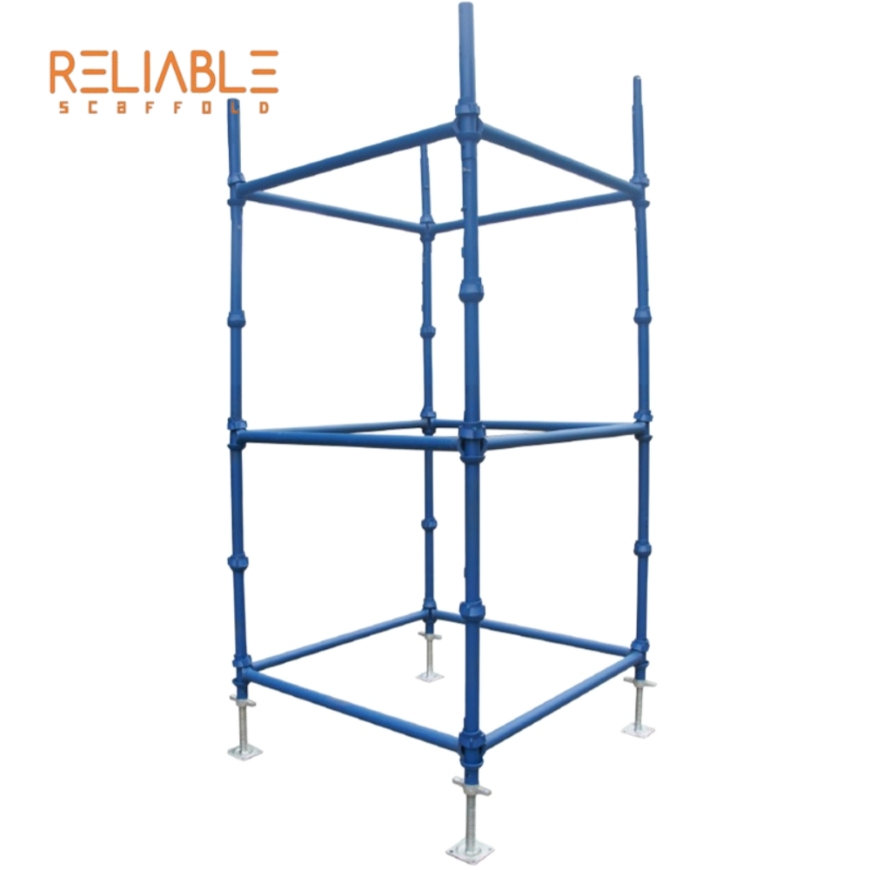

Reliable OEM Cuplock Top Bottom Cup and Blade System Accessories

1 / 5

Reliable OEM Cuplock Top Bottom Cup and Blade System Accessories

Customization:	Available
Material:	Steel
Type:	Mobile

Send Inquiry

Product Description

Basic Specifications

Structural Style: Multi-Pole Scaffolding

Framework: Combined Scaffolding

Supporting Mode: Floor Type Scaffolding

Lapping Form: Full Scaffolding

Erection Position: External Scaffolding

Main Material: Q235, Q345 Steel

Tube Dimension: 48.3mm x 3.25mm / 3.0mm / 2.5mm

Surface Finish: Hot-DIP Galvanized

Connection: Unique Circular Node Point

HS Code: 73084000

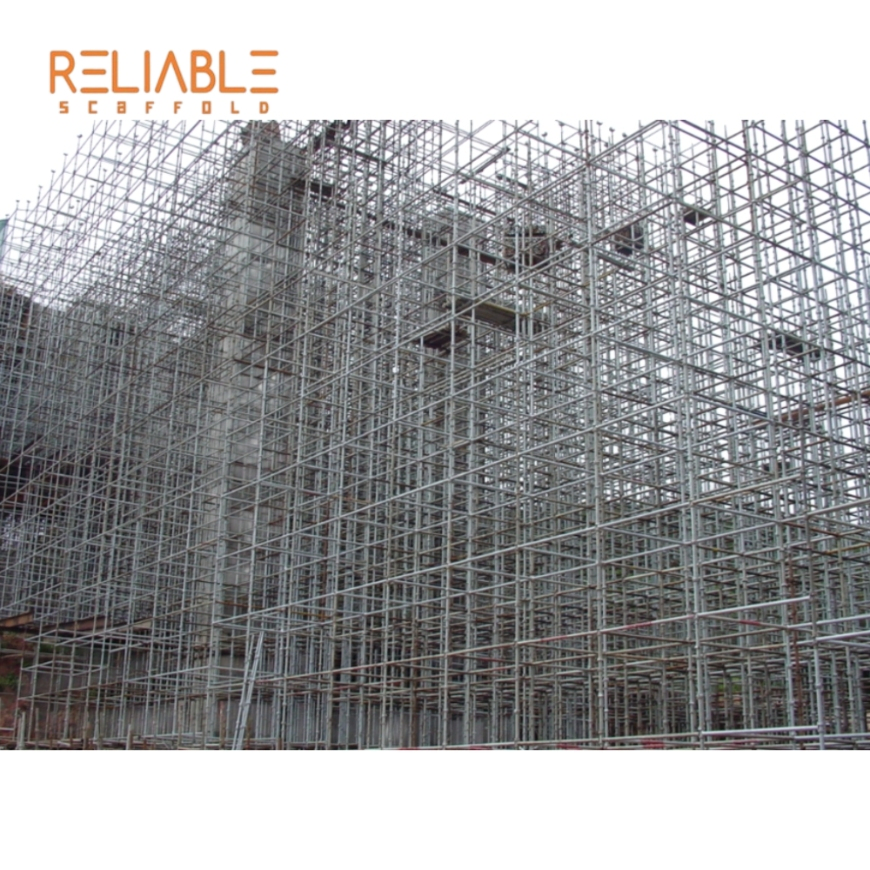

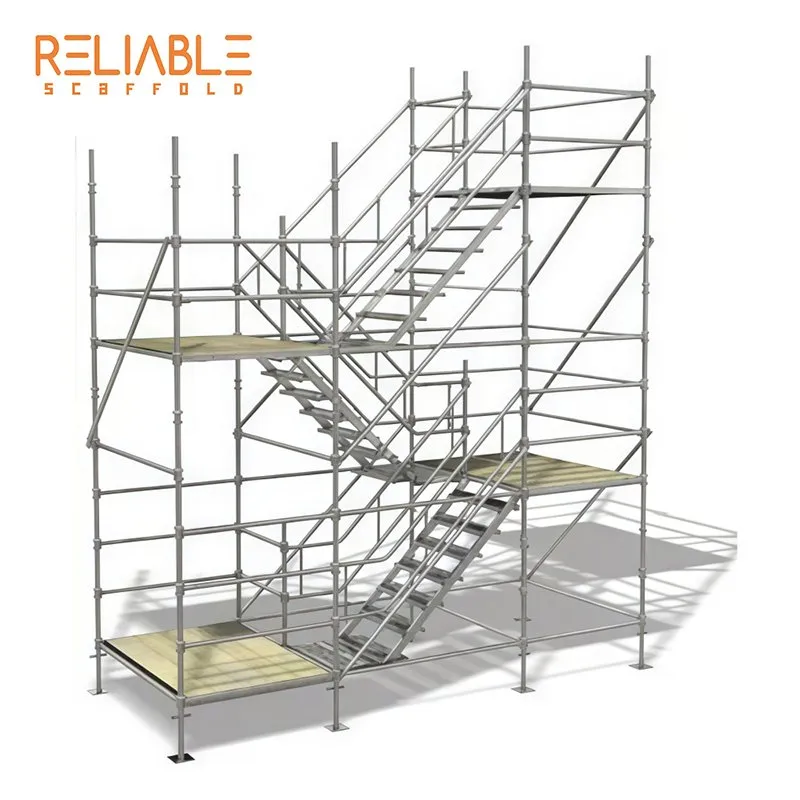

Cuplock Scaffolding System for Cost-Effective Projects

The cuplock scaffolding system is a proven and economical solution designed for fast erection and high efficiency in large-scale construction projects. With its simple cup-locking mechanism and robust steel structure, it provides stable performance and reliable load support in demanding site conditions.

🔹 Cost-effective solution for large-scale projects
🔹 Fast assembly with cup-locking system
🔹 High load capacity with strong steel structure
🔹 Durable hot-dip galvanized finish

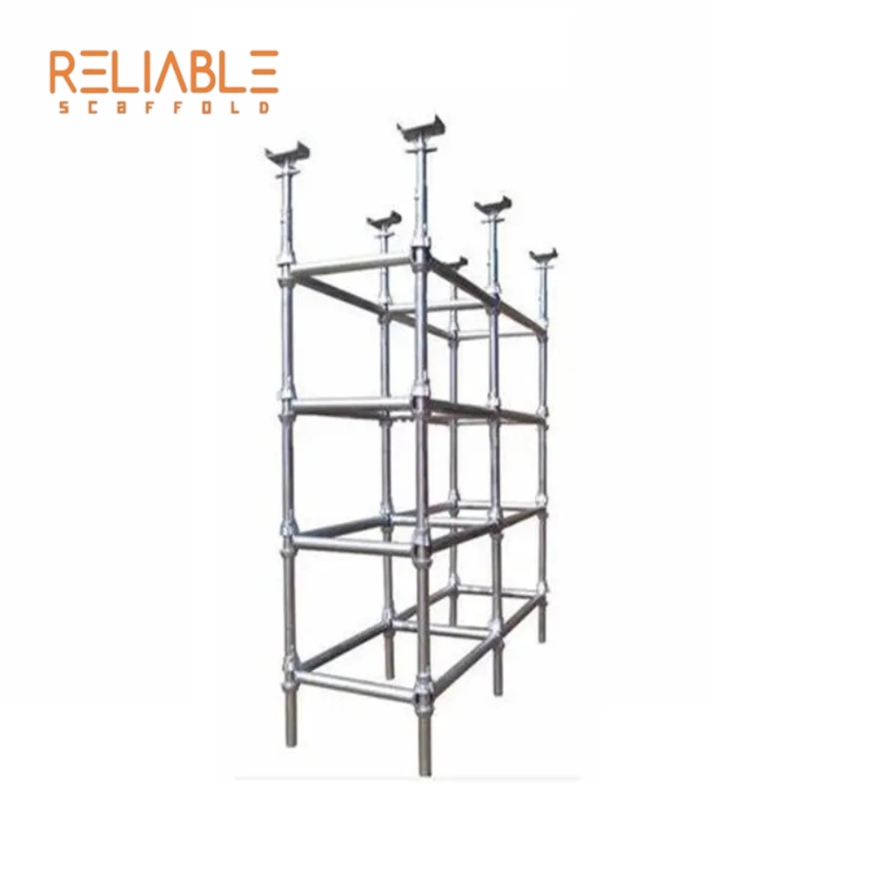

System Components

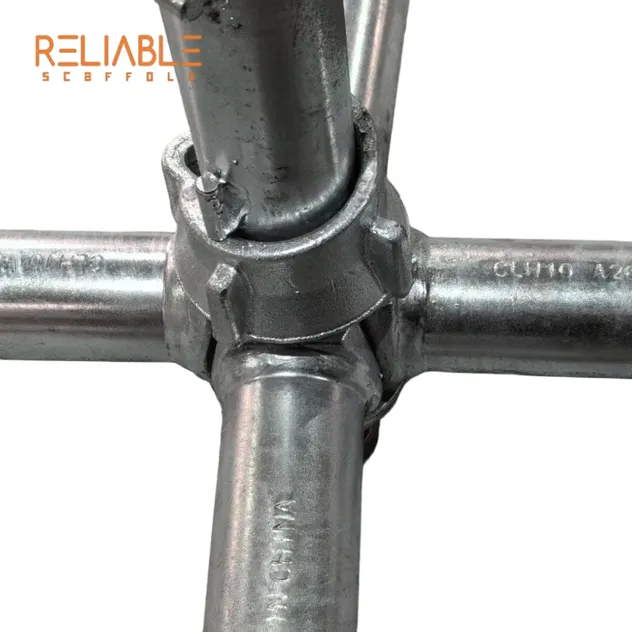

Cuplock Standard

Vertical component forming the main load-bearing structure.

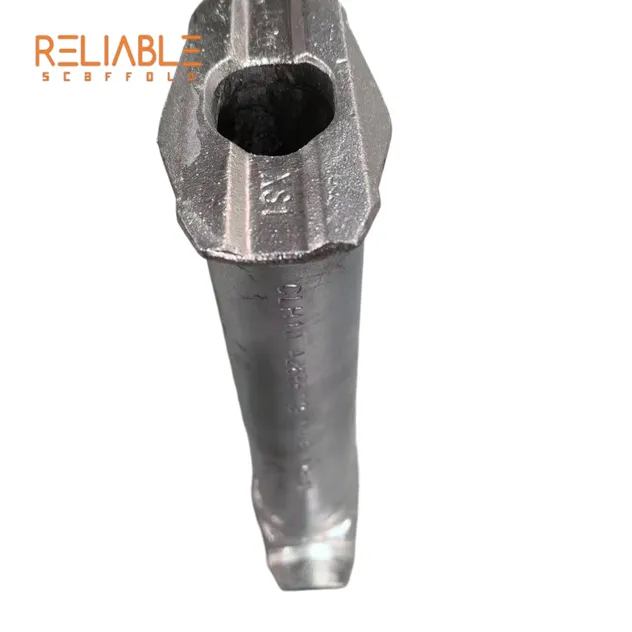

Cuplock Ledger

Horizontal member locked into the cup joint for stability.

Diagonal Brace

Enhances overall system rigidity and safety under load.

Steel Plank

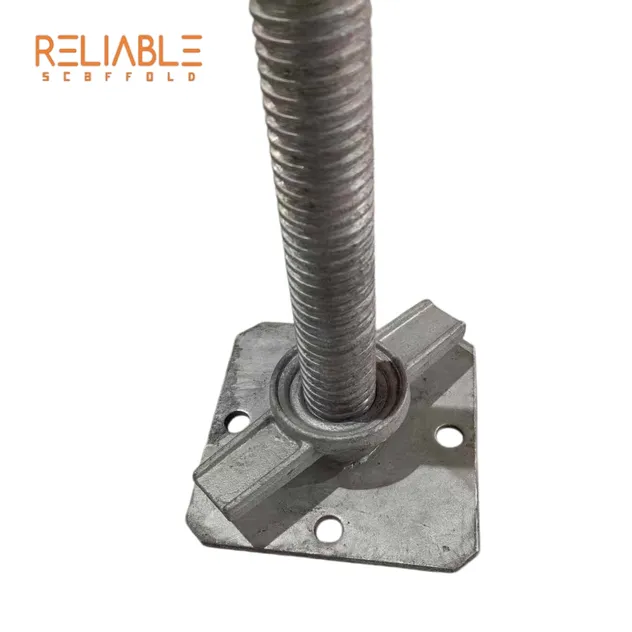

Base Jack / U-Head Jack

Ladder & Accessories

Key Benefits

💰 Cost-Effective

Reduces overall project cost by minimizing material complexity and labor requirements.

⚡ Fast Assembly

The cup-locking mechanism allows quick connection, improving on-site efficiency.

🏗️ High Load Capacity

Strong steel structure ensures reliable support for heavy-duty applications.

Wide Applications

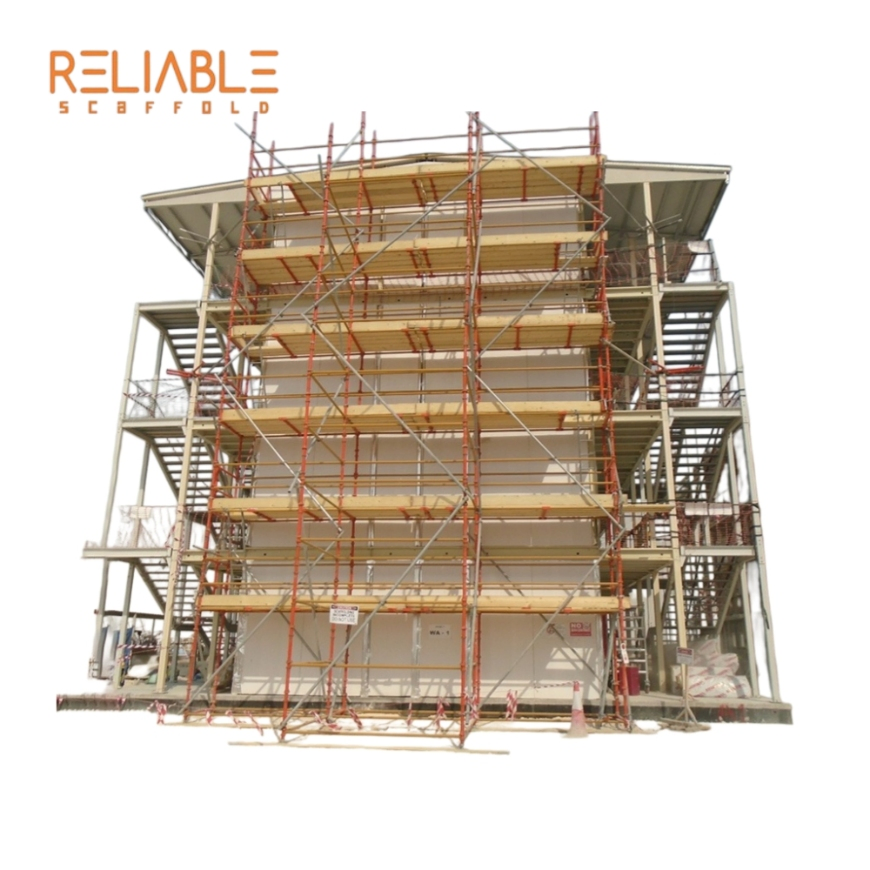

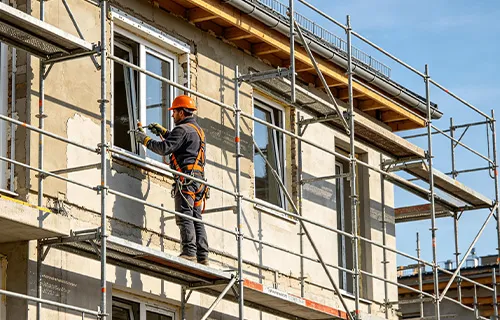

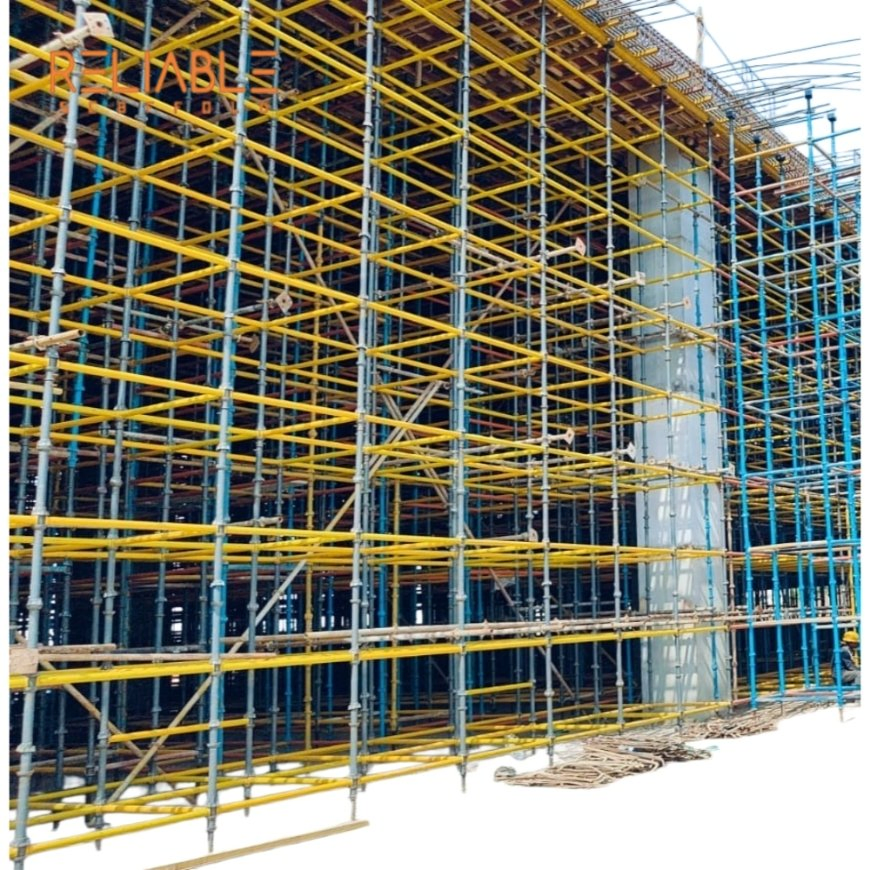

Civil & Building Construction

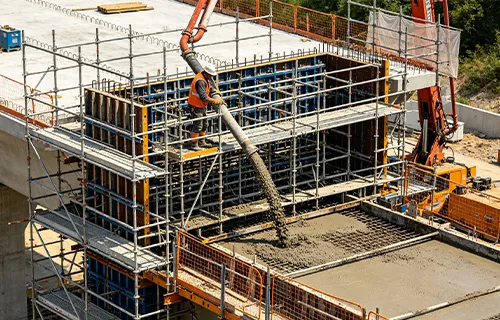

Bridge & Infrastructure

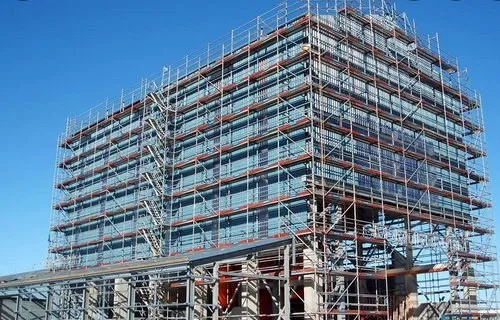

Industrial & Plant Construction

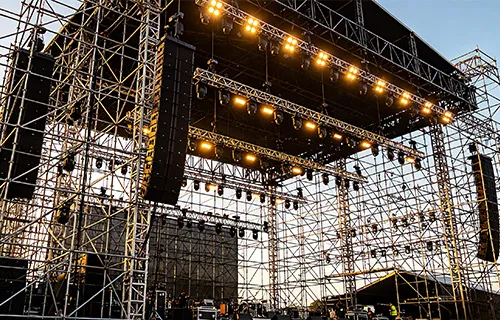

Temporary Structures & Events

Technical Specifications

Item	Specification
Material	Q345 / Q235 Steel
Tube Diameter	48.3 mm
Surface Treatment	Hot-dip Galvanized
Standard Length	0.5 m – 3.0 m
Ledger Length	0.6 m – 3.0 m
System Type	Cuplock Modular System
Customization	Available upon request

Supply Capability

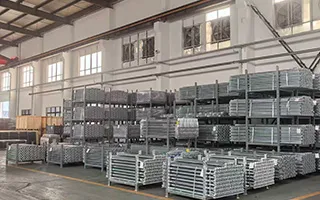

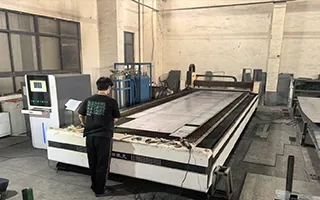

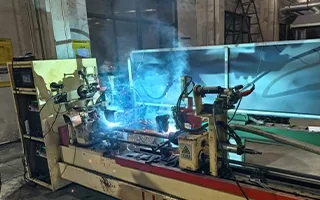

A 10,000 m² manufacturing facility equipped with advanced auto-welding and laser processing equipment ensures consistent quality. With a monthly output of up to 30 containers, we support large-scale projects with reliable lead times.

Frequently Asked Questions

What is the main advantage of cuplock scaffolding?

It is known for its cost-effectiveness and simple structure. The cup-and-blade locking mechanism allows fast assembly with fewer components, ideal for large-scale construction.

Is it suitable for heavy industrial projects?

Yes. Cuplock scaffolding is widely used in civil construction, infrastructure, and industrial plants where high load capacity and repeated use are essential.

What materials are used in production?

The system is manufactured using high-grade Q345 and Q235 steel, providing strong load capacity and structural reliability.

How is the corrosion resistance handled?

All components are hot-dip galvanized, which ensures a long service life and high resistance to rust, even in harsh outdoor or coastal environments.

Can the system be customized?

Yes. Customized production is supported based on specific project drawings, dimensions, or load requirements.

How fast can the system be assembled?

The cup-locking system allows multiple components to be connected in a single action, significantly reducing installation time and labor costs compared to traditional tube-and-clamp systems.
