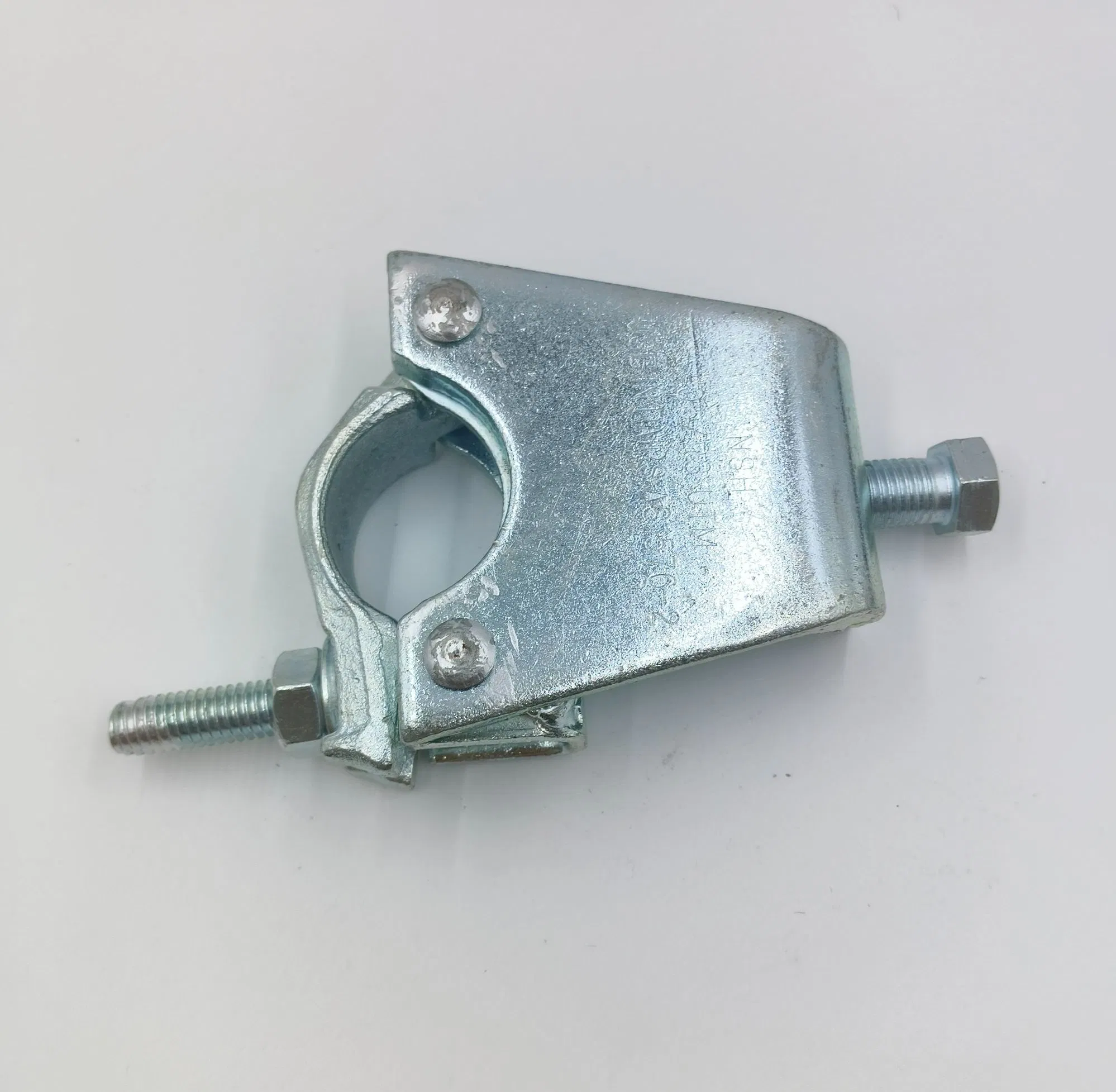

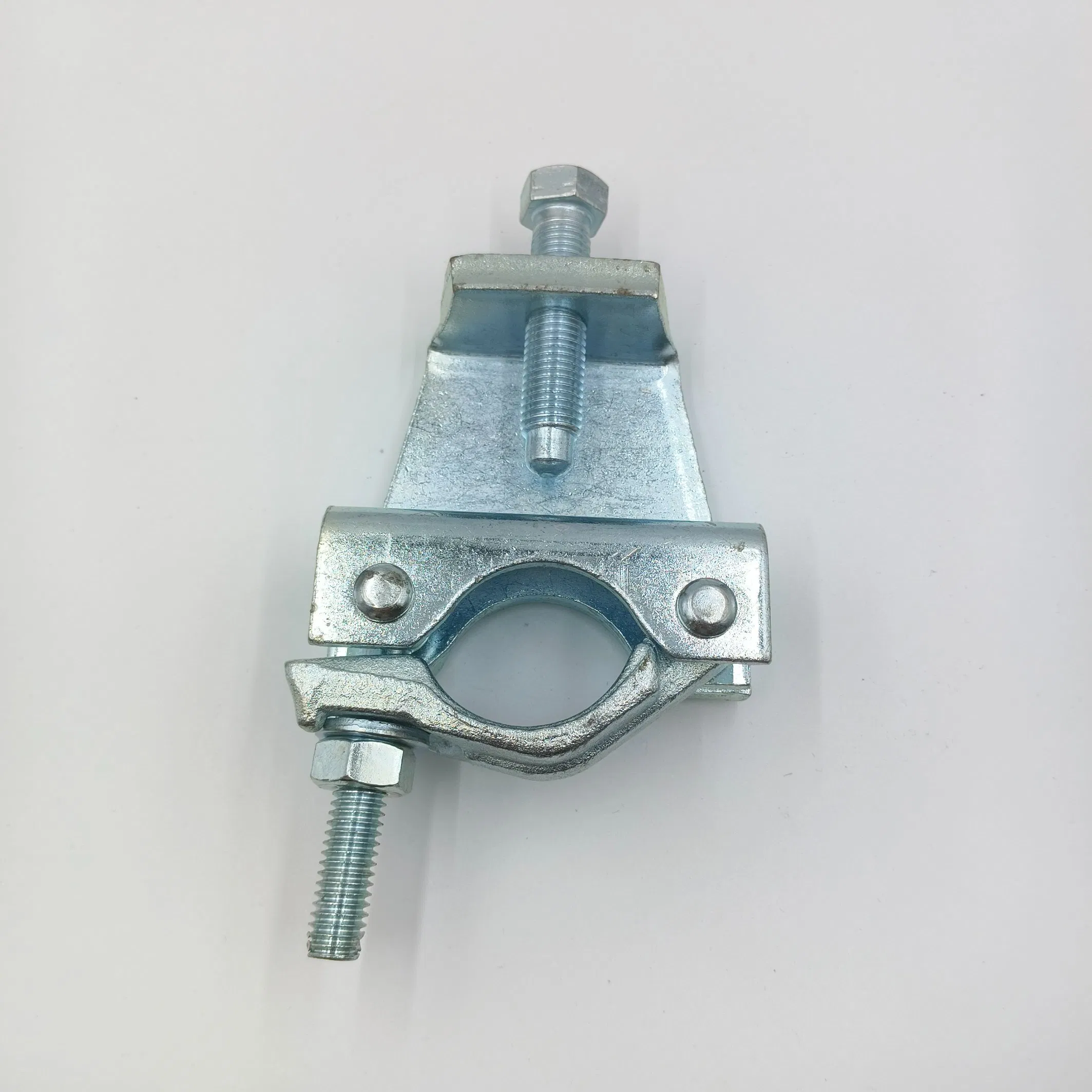

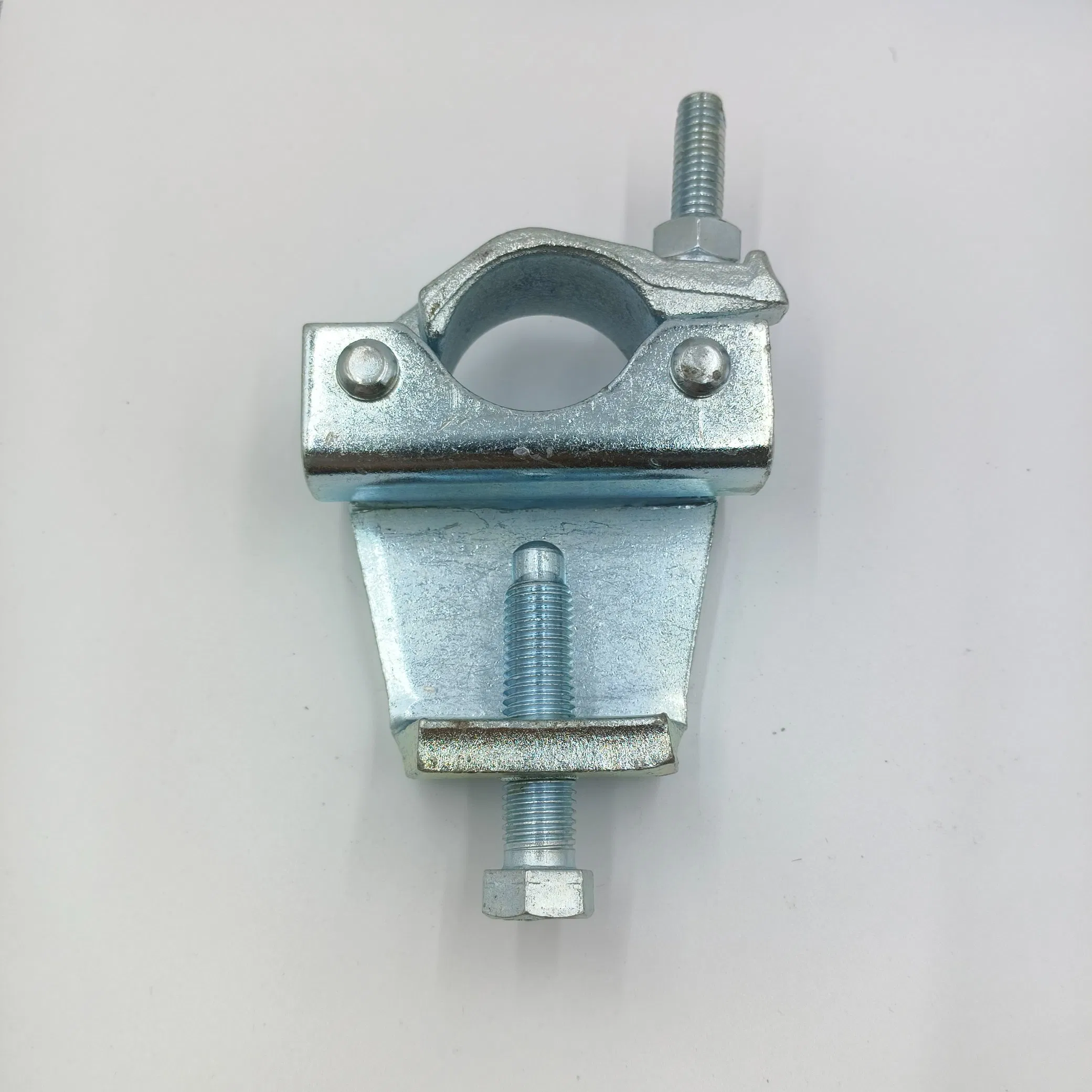

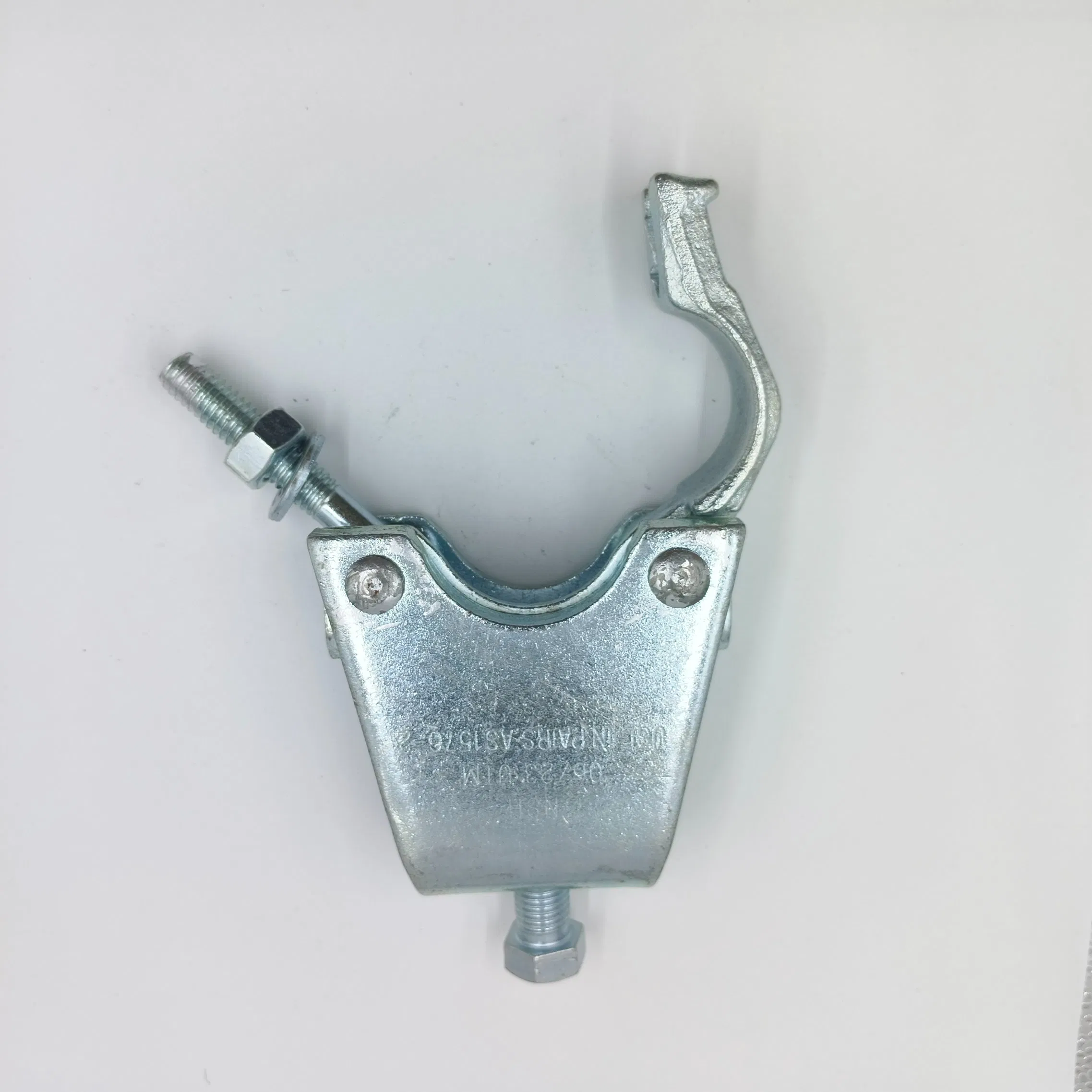

Q235 Steel Tube Gravelock Coupler Forged Girder Scaffolding Coupler

Basic Information

Model NO.

UTM-BC-030

Material

Steel Q235

Type

Girder Coupler

Structural Style

Multi-Pole Scaffolding

Standard

EN74-1 / BS1139

Weight

1.48kg

Finish

Zinc Plate / Hot Dipped Galvanized

Size

For 48.3mm Tube

Origin

China

Capacity

500,000 pieces/Year

Product Description

Q235 Steel Tube Gravelock Coupler Forged Girder Scaffolding Coupler

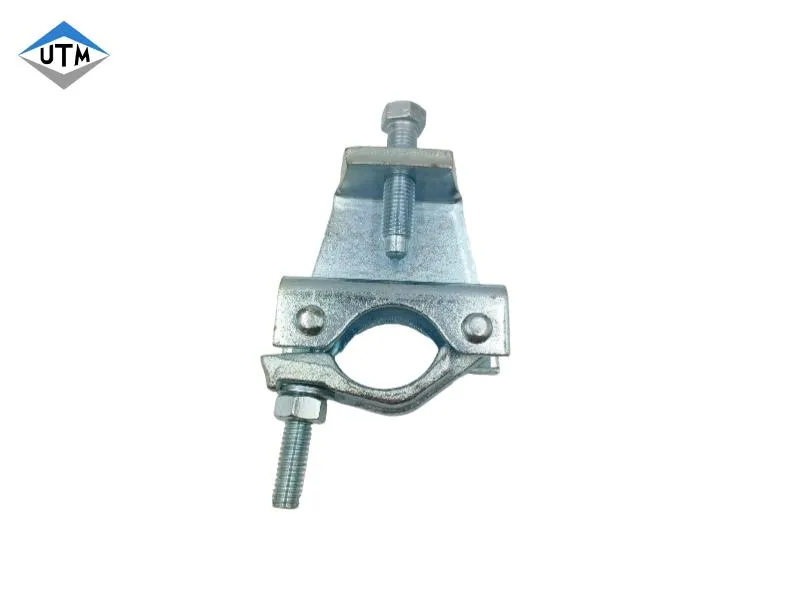

Scaffold Beam Clamp (Girder Coupler) is designed for connecting scaffolding pipes to steel beams or other structural sections. It provides secure and stable connections between scaffolding and beams. These are typically used in pairs to ensure maximum safety and structural integrity.

Key Features:

Excellent Load Capacity: High bearing strength for heavy-duty industrial use.
Durable & Stable: Forged from Q235 steel for long-term reliability.
Easy Installation: Simple to assemble and dismantle on-site.
Corrosion Resistance: Treated with electro-galvanized or hot-dip galvanized finish.
High Skid Resistance: Large contact area between the tube and coupler prevents slippage.

Product Parameters

Product Name	Scaffolding Beam Clamp / Girder Coupler
Material	Steel Q235
Processing	Forged / Pressed
Surface Treatment	Zinc Plate or Hot Dipped Galvanized
Standard	EN74 / BS1139 / AS 1576.2
Specifications	For 48.3mm tube
Weight Options	1.48kg, 1.40kg, 1.01kg
T-bolt	M12, Grade 8.8
Packaging	Woven bags + Steel pallet or Ton bag

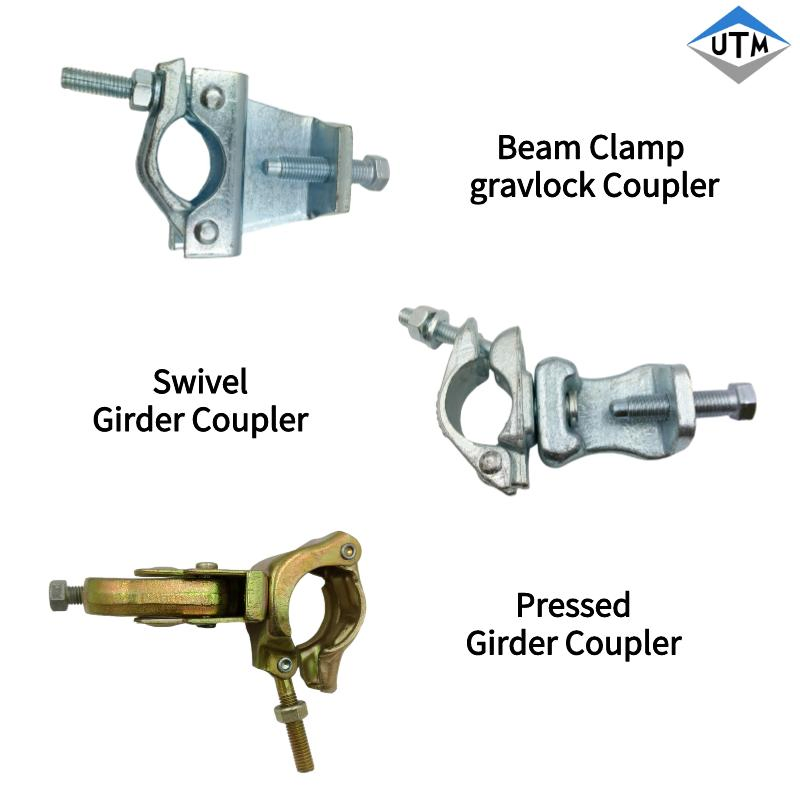

Available Coupler Sizes

Double Coupler	Swivel Coupler
48.3mm * 48.3mm	48.3mm * 48.3mm
38mm * 48.3mm	38mm * 48.3mm
48.3mm * 60.3mm	48.3mm * 60.3mm
48.3mm * 89mm	48.3mm * 89mm
48.6mm * 48.6mm	48.6mm * 48.6mm

Application Scenarios

High-rise building internal and external grid scaffolding.
Bridge, viaduct, and tunnel formwork support systems.
Mobile work platforms for mechanical and hull repair.
Temporary viewing stands and event structures.
Site warehouses, sheds, and temporary dormitories.

Service & Quality Control

Our production process is strictly controlled from raw material supply to cutting, stamping, welding, and surface treatment. We provide one-stop solutions for scaffolding needs, ensuring all products meet international safety standards.

Frequently Asked Questions

What about after-sales service?

All products are fully tested before dispatch. We have a complete traceability system. In case of any issues, please provide photos or videos, and we will offer replacements or reasonable compensation based on agreement.

What payment terms do you accept?

We primarily accept T/T and L/C. Other payment terms are negotiable depending on the order requirements.

What is your Minimum Order Quantity (MOQ)?

Normally, we accept one full container. However, for special products or trial orders, we are happy to discuss specific quantity requirements.

Can we customize our company logo on products?

Yes, we can provide permanent logo embossing or stickers on products according to your specific requirements.

How fast can you complete an order?

Once the order is confirmed, we establish a production schedule to meet the customer's deadline. All production stages are monitored to ensure on-time delivery.

Can you provide engineered drawings?

Yes, our professional engineers are capable of designing access solutions and providing technical drawings for challenging scaffolding projects.
