ABP Scaffolding
ABP Scaffolding
| Model NO. | UTM-BC-030 | Material | Steel Q235 |
| Type | Girder Coupler | Standard | En74-1/BS1139 |
| Weight | 1.48kg | Finsh | Zinc Plate or Hot Dipped Galvanized |
| Size | for 48.3mm | Style | Forged Coupler / American Type |

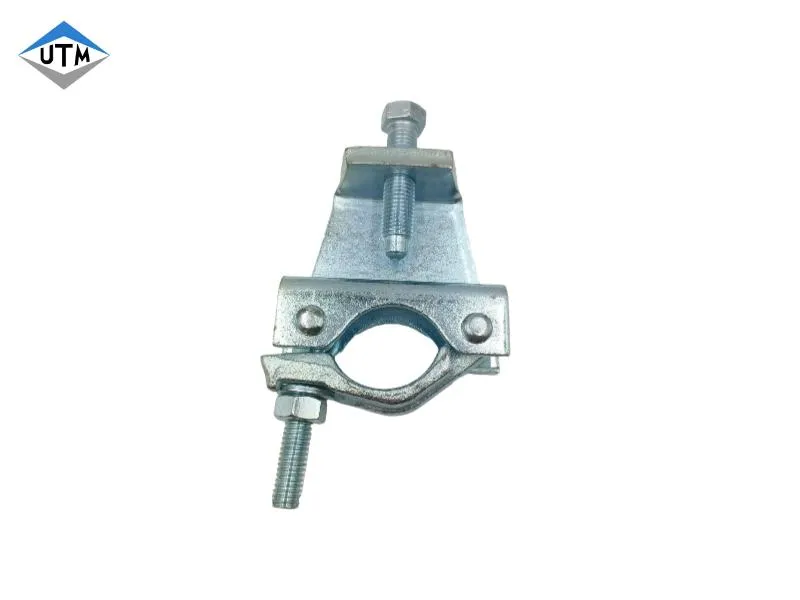

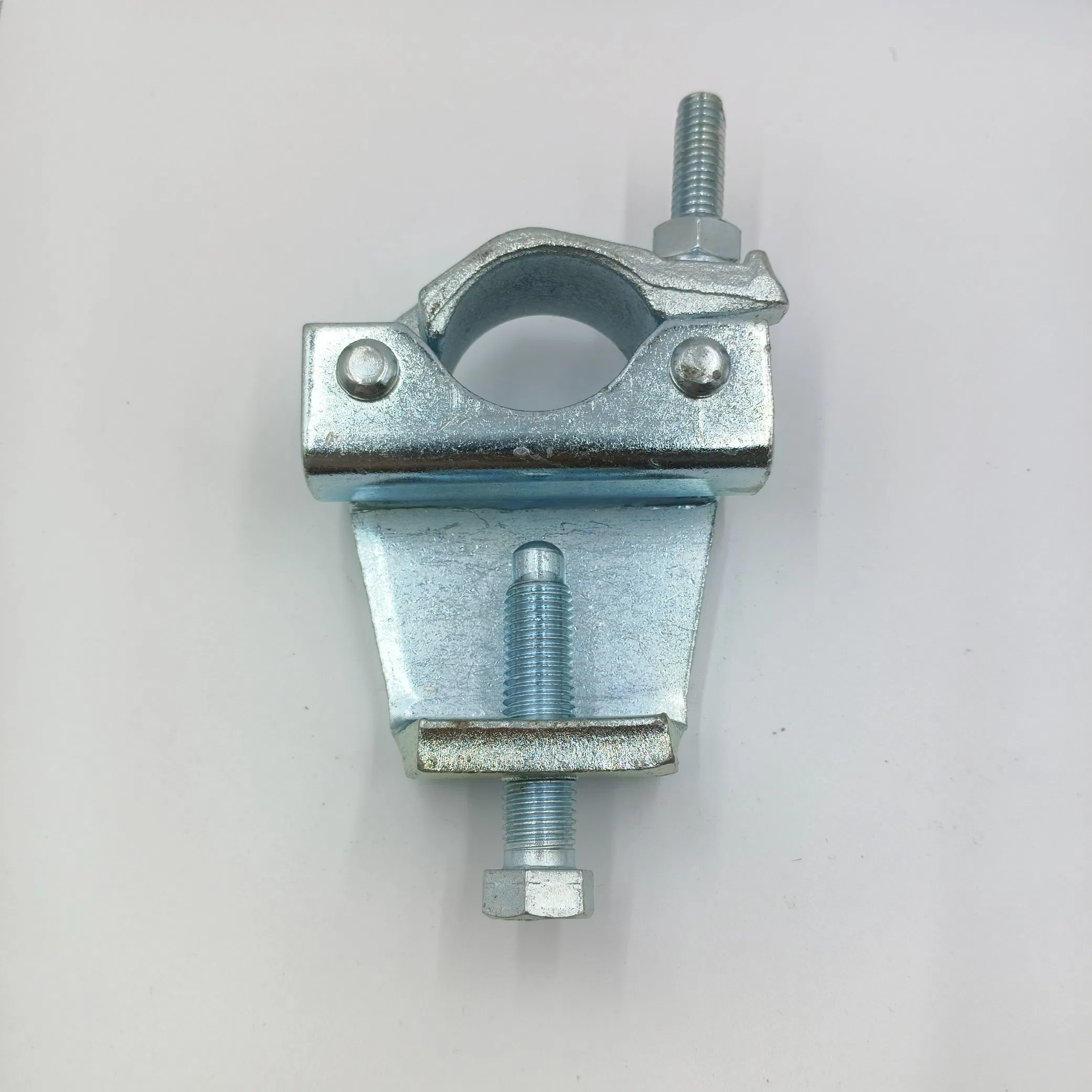

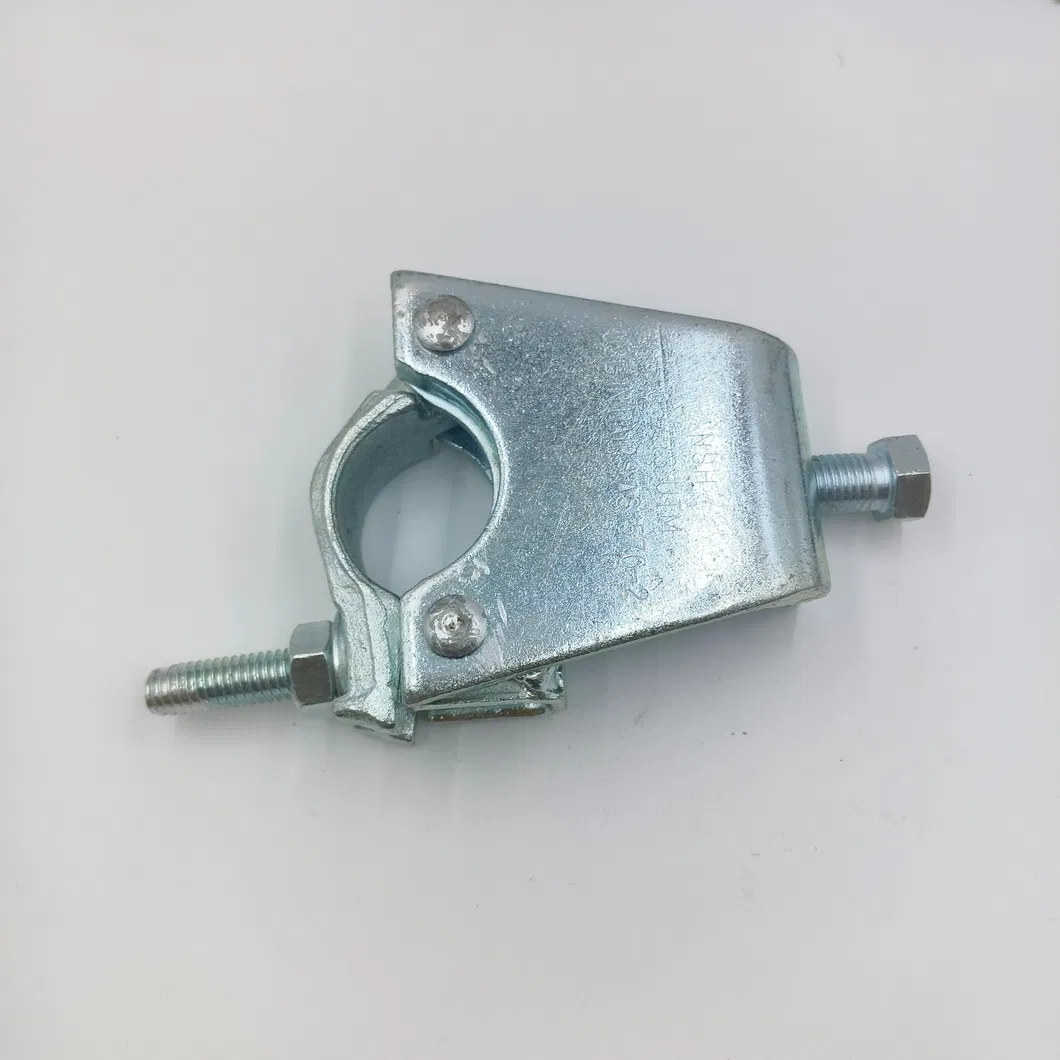

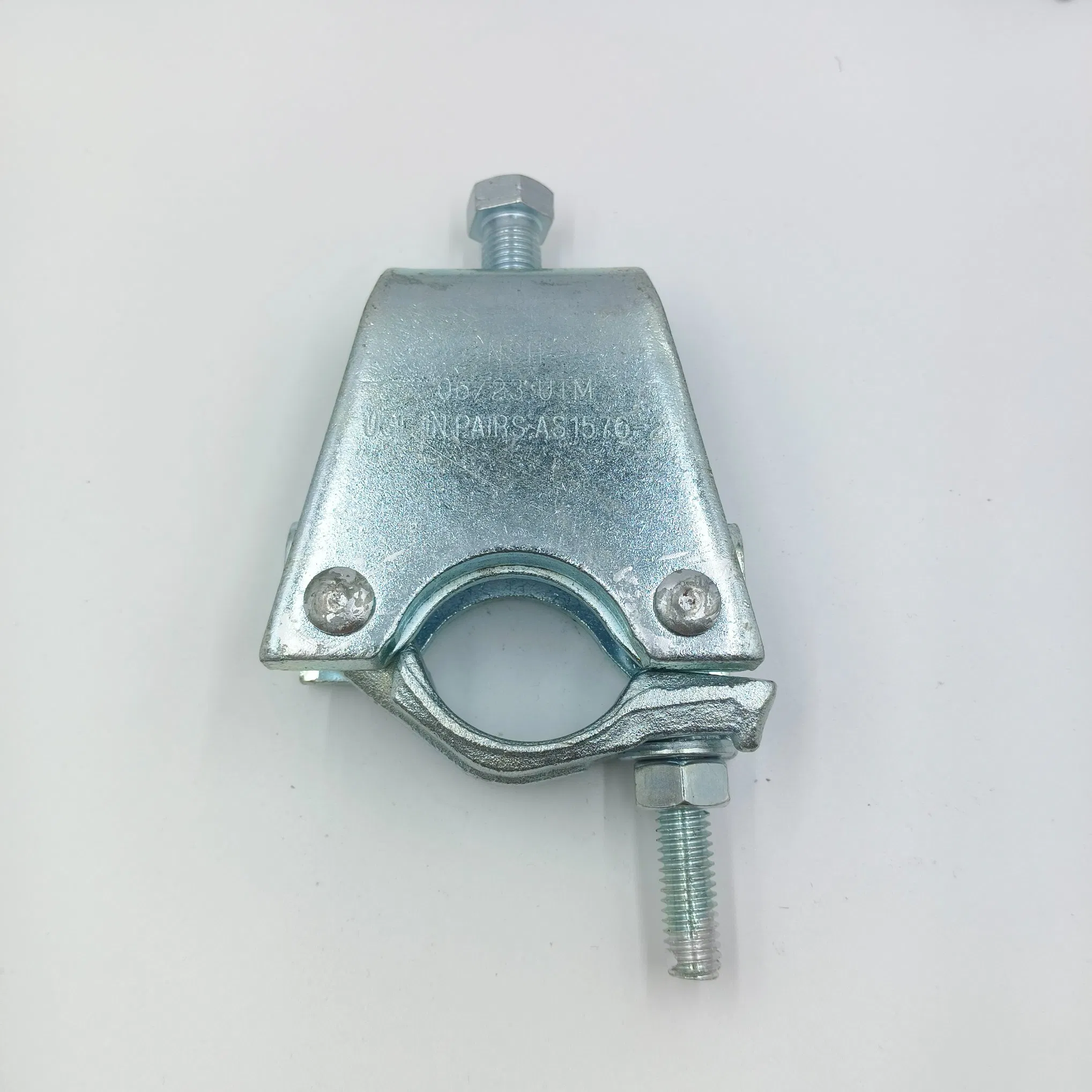

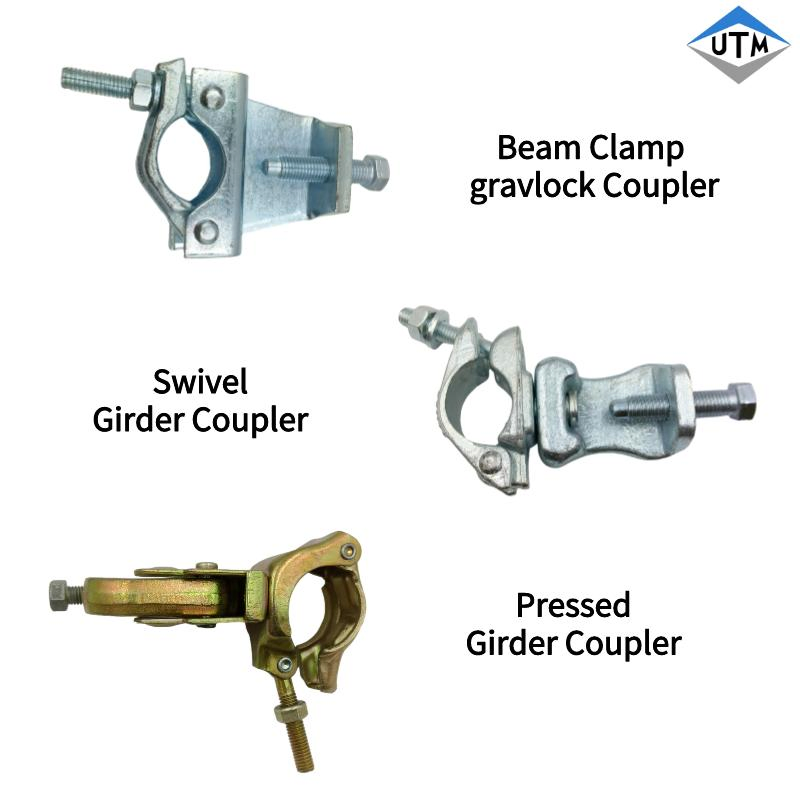

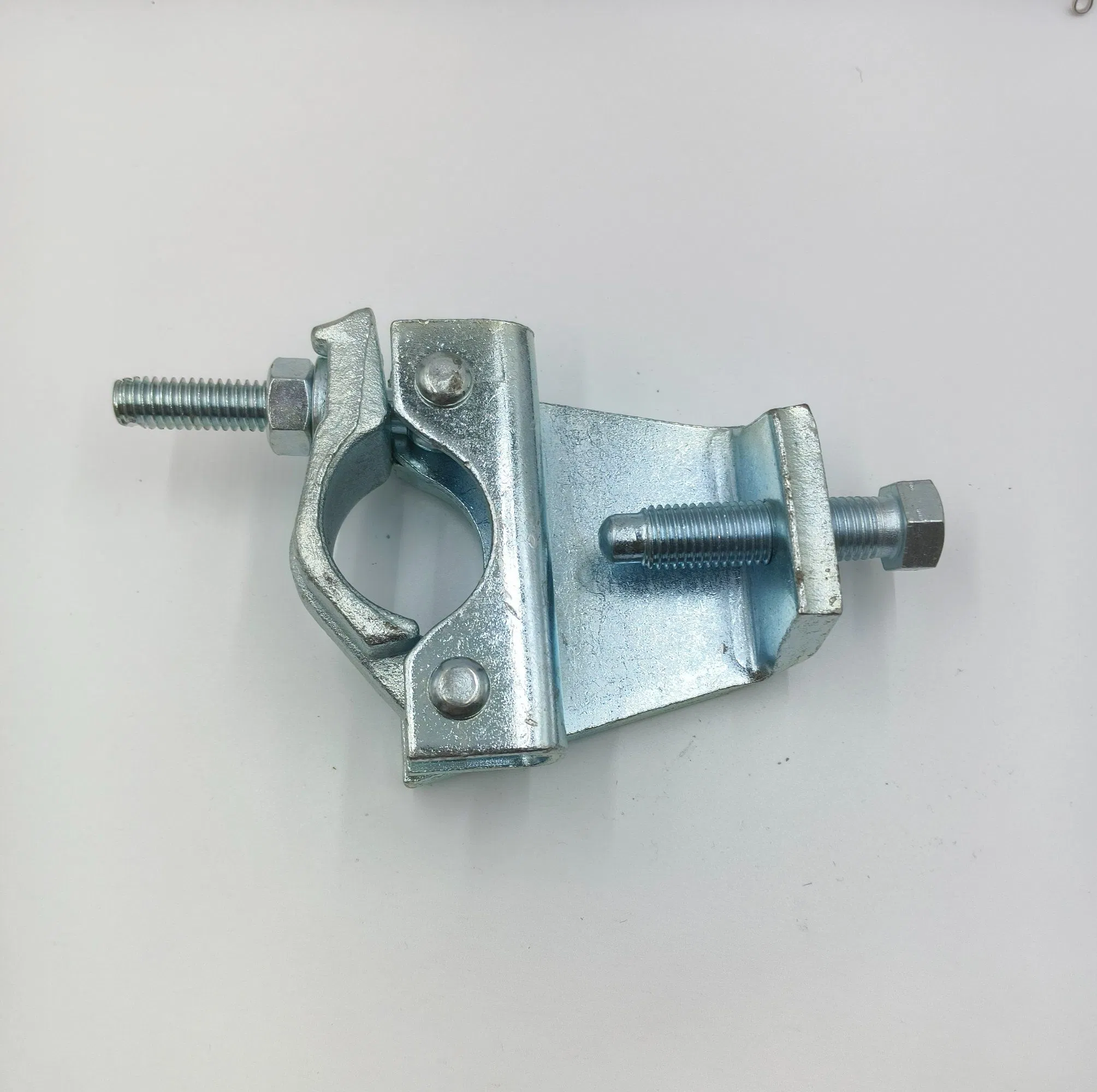

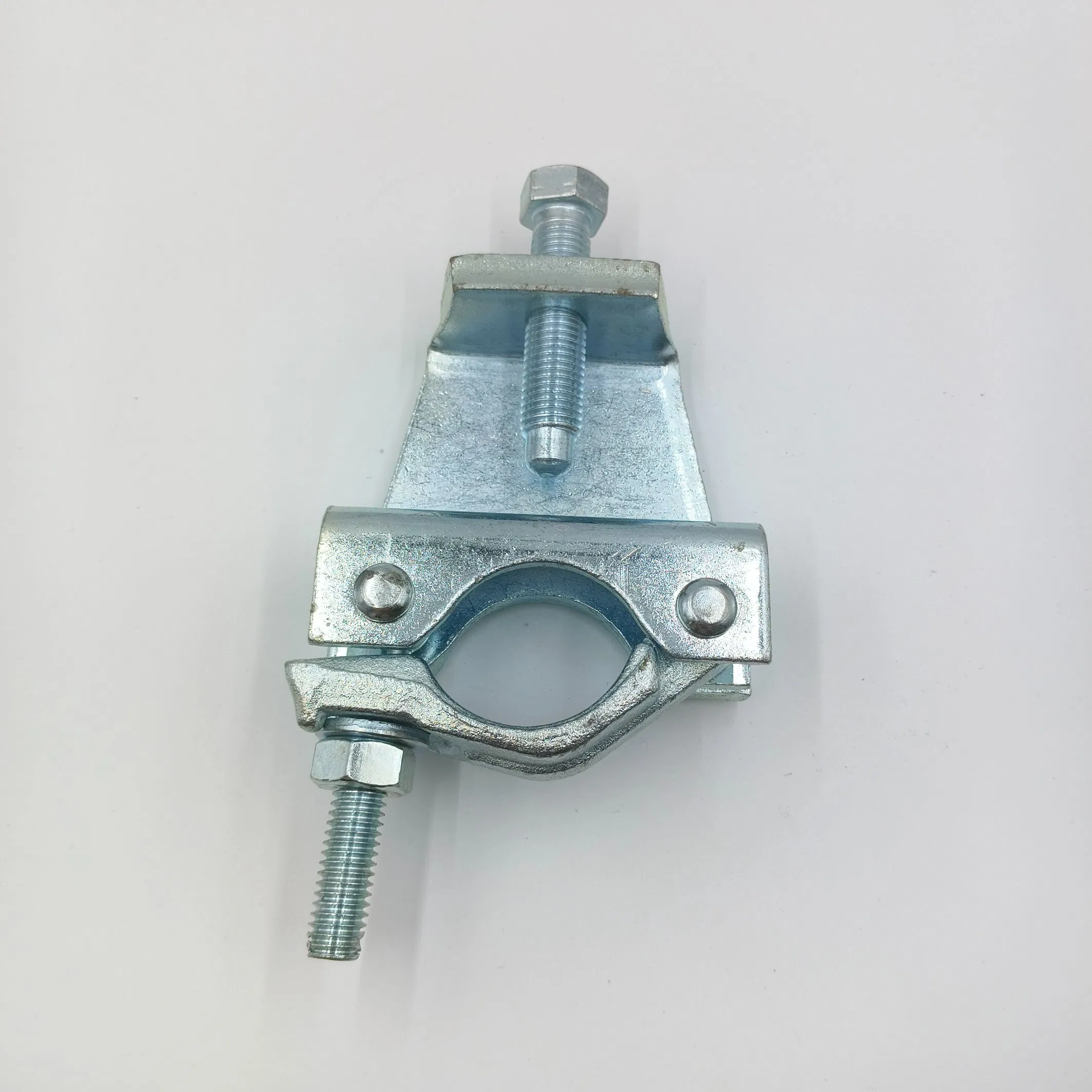

Scaffold Beam Clamp (Girder Coupler)
Designed for connecting scaffolding pipes to steel beams or other structural sections. It provides a secure and stable connection between scaffolding and beams. To be used in pairs.
| Attribute | Details |
|---|---|
| Name | Scaffolding Beam Clamp / Girder Coupler |
| Material | Steel Q235 |

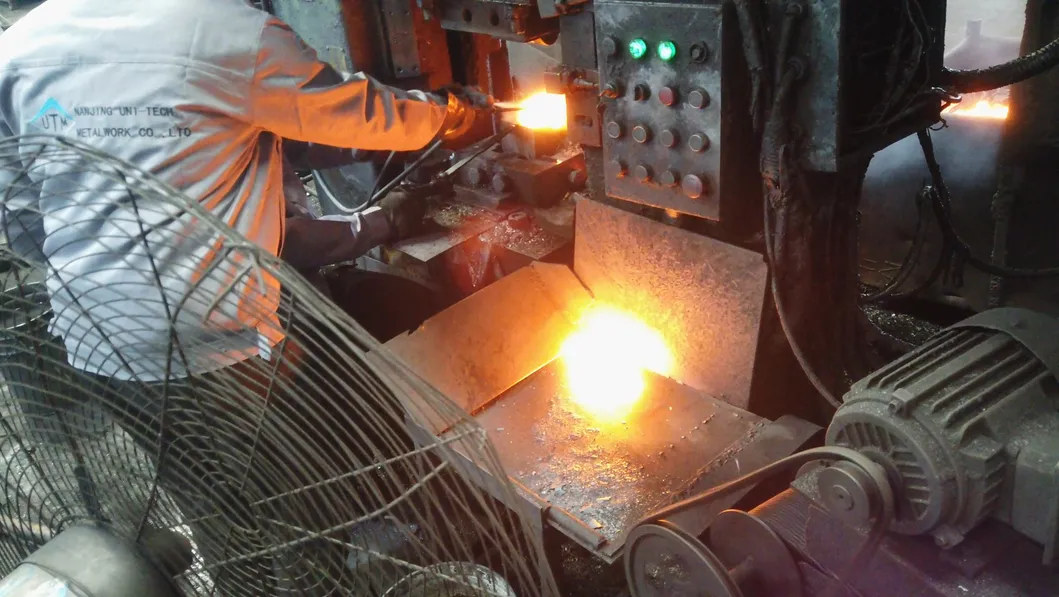

| Process | Forged / Pressed |
| Surface Treatment | Zinc Plate or Hot Dipped Galvanized |
| Standard | EN74/BS1139/AS 1576.2 |
| Specification | For 48.3 tube |
| Weight | 1.48kg / 1.40kg / 1.01kg |
| T-bolt | M12, grade 8.8 |

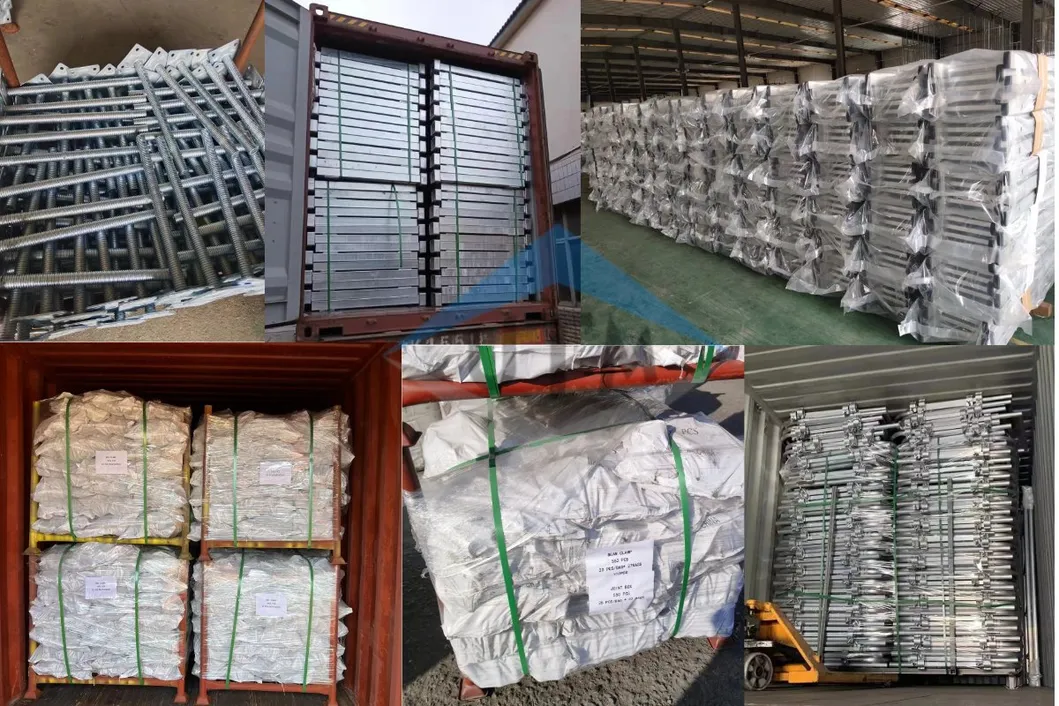

| Package | Woven bags + steel pallet or ton bag |
| Double Coupler | Swivel Coupler |
| 48.3mm * 48.3mm | 48.3mm * 48.3mm |
| 38mm * 48.3mm | 38mm * 48.3mm |
| 48.3mm * 60.3mm | 48.3mm * 60.3mm |
| 60.3mm * 60.3mm | 60.3mm * 60.3mm |

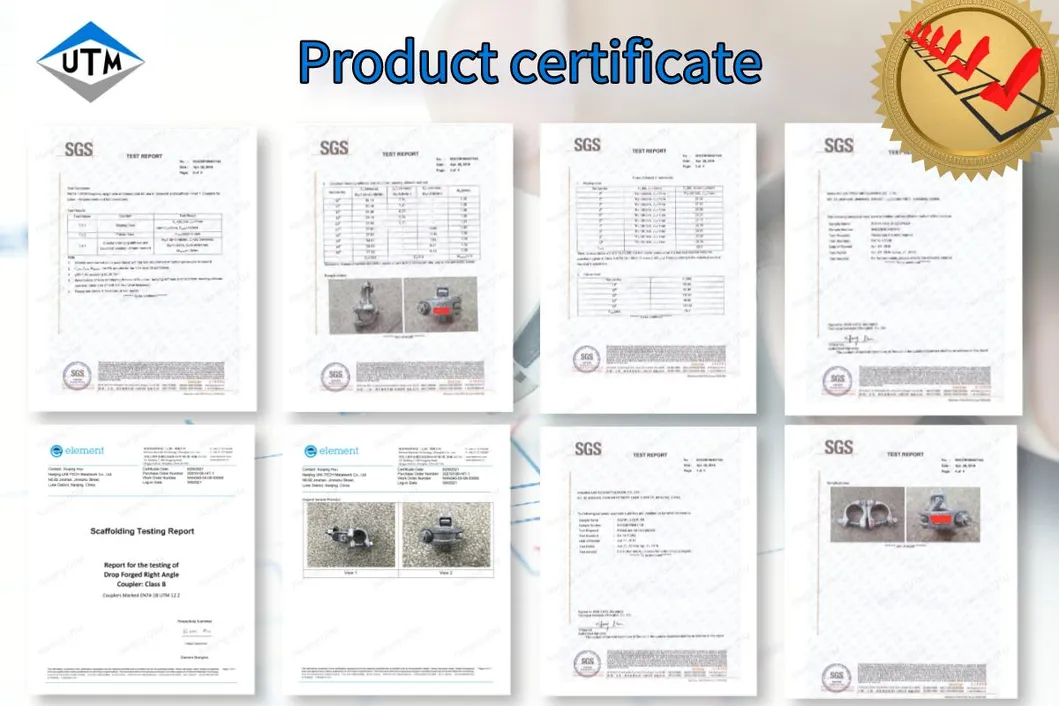

With 16 years of industry experience, our products hold EN, BS, and AS certificate qualifications. We specialize in ringlock and aluminium scaffold systems and their accessories. We provide extensive experience in seating systems and edge protection, offering professional design solutions. Our range includes scaffold couplers, cuplock scaffolding, kwikstage scaffolding, frames, props, and screw jacks.
